SPEEDOMETER (VL800K7/K8/TK7/TK8)

VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

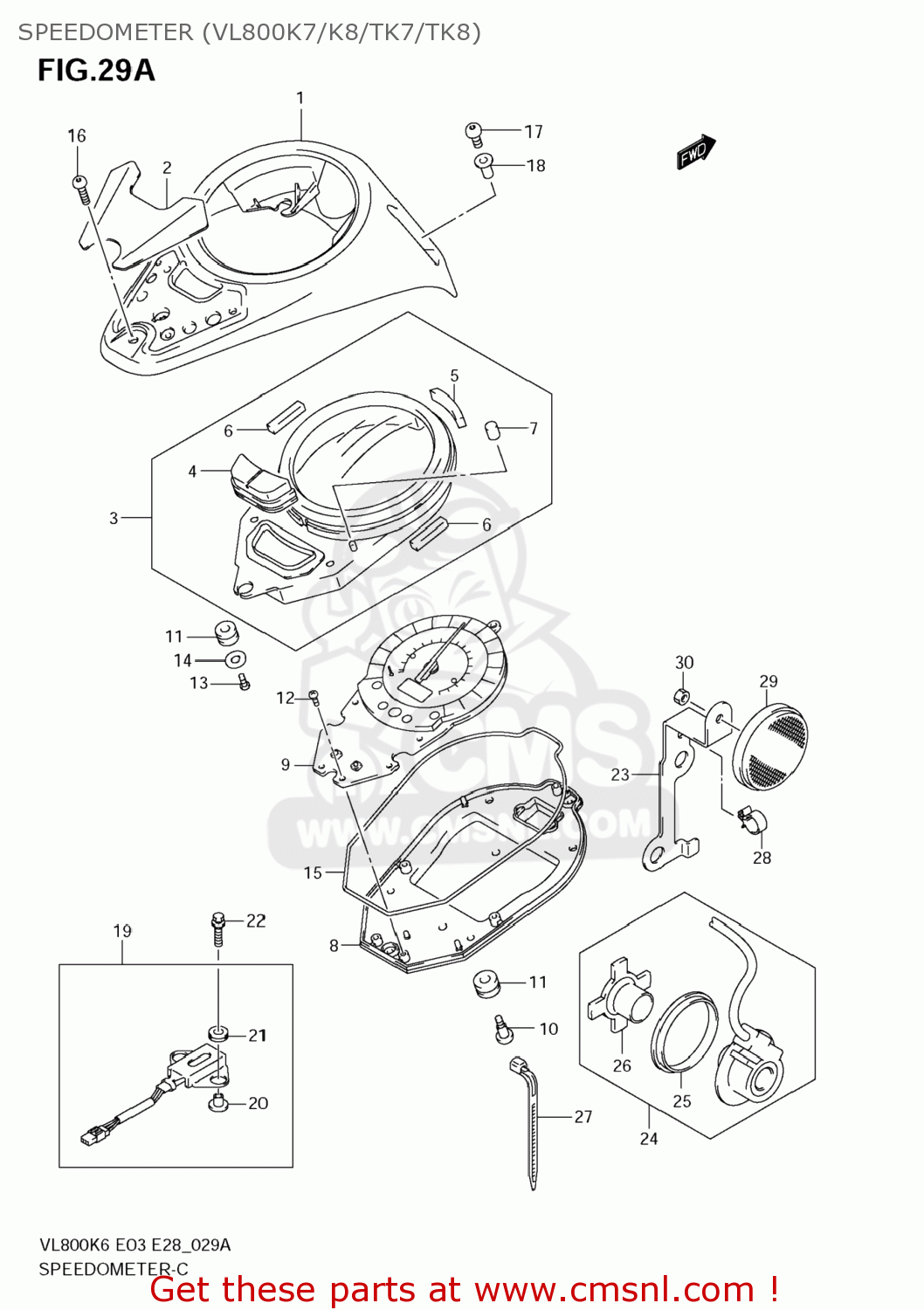

Speedometer (vl800k7/k8/tk7/tk8) diagram VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

SPEEDOMETER (VL800K7/K8/TK7/TK8) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

SPEEDOMETER (VL800K7/K8/TK7/TK8) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3415041F00
ref: 1

CASE ASSY

€ 246.00

2

3415741FA0
ref: 2

PLATE,DECORATION

€ 18.50

3

3415141F00
ref: 3

CASE,UPR

€ 184.00

4

3414141F00
ref: 4

SWITCH,SELECT

€ 17.50

5

3419641F00
ref: 5

CUSHION NO.1

€ 4.50

6

3419641F10
ref: 6

CUSHION NO.2

€ 6.00

7

3496141F00
ref: 7

CUSHION NO.4

€ 6.00

8

3415241F00
ref: 8

CASE,LWR

€ 48.50

9-1

3412041FM0
ref: 9-1

SPEEDOMETER

€ 416.00

9-2

3412041FL0
ref: 9-2

SPEEDOMETER

€ 565.50

9-3

3412041FP0
ref: 9-3

SPEEDOMETER

€ 506.00

9-4

3412041FN0
ref: 9-4

SPEEDOMETER

€ 539.00

10

3418641F00
ref: 10

BOLT

€ 8.00

11

3499643410
ref: 11

CUSHION,METER

€ 3.00

12

3418314F00
ref: 12

SCREW(3X10)

€ 3.00

13

3414916B00
ref: 13

SCREW(4X14)

€ 2.00

14

3418121D00
ref: 14

WASHER

€ 6.50

15

3415341F00
ref: 15

GASKET,METER CASE (NAS)

€ 11.00

16

0913905025
ref: 16

SCREW(5X14)

€ 2.00

17

0913905032
ref: 17

SCREW(5X18)

€ 2.50

18

0915905019
ref: 18

NUT

€ 5.50

19

3651039F00
ref: 19

RESISTOR ASSY

€ 72.00

20

0918006319
ref: 20

SPACER(6.5X10X11.6)

€ 3.50

21

0932010015
ref: 21

CUSHION

€ 2.50

22

0911606047
ref: 22

BOLT(6X25)

€ 2.00

23

3493841F50
ref: 23

GUIDE,SPEED SENSOR LEAD

€ 7.50

24

3499041F10
ref: 24

SENSOR,SPEED

€ 163.00

25

0928644001
ref: 25

SEAL,OIL(44X55X6)

€ 10.00

26

3498327G00
ref: 26

MAGNETO

€ 26.00

27

0940714407
ref: 27

CLAMP(L:145)

€ 4.00

28

0940306410
ref: 28

CLAMP

€ 2.00

29

3595014A00
ref: 29

REFLECTOR,REFLEX FR

€ 15.00

30

083161005B
ref: 30

NUT

€ 2.50
