TURNSIGNAL FRONT & REAR LAMP (MODEL K7/K8)

VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

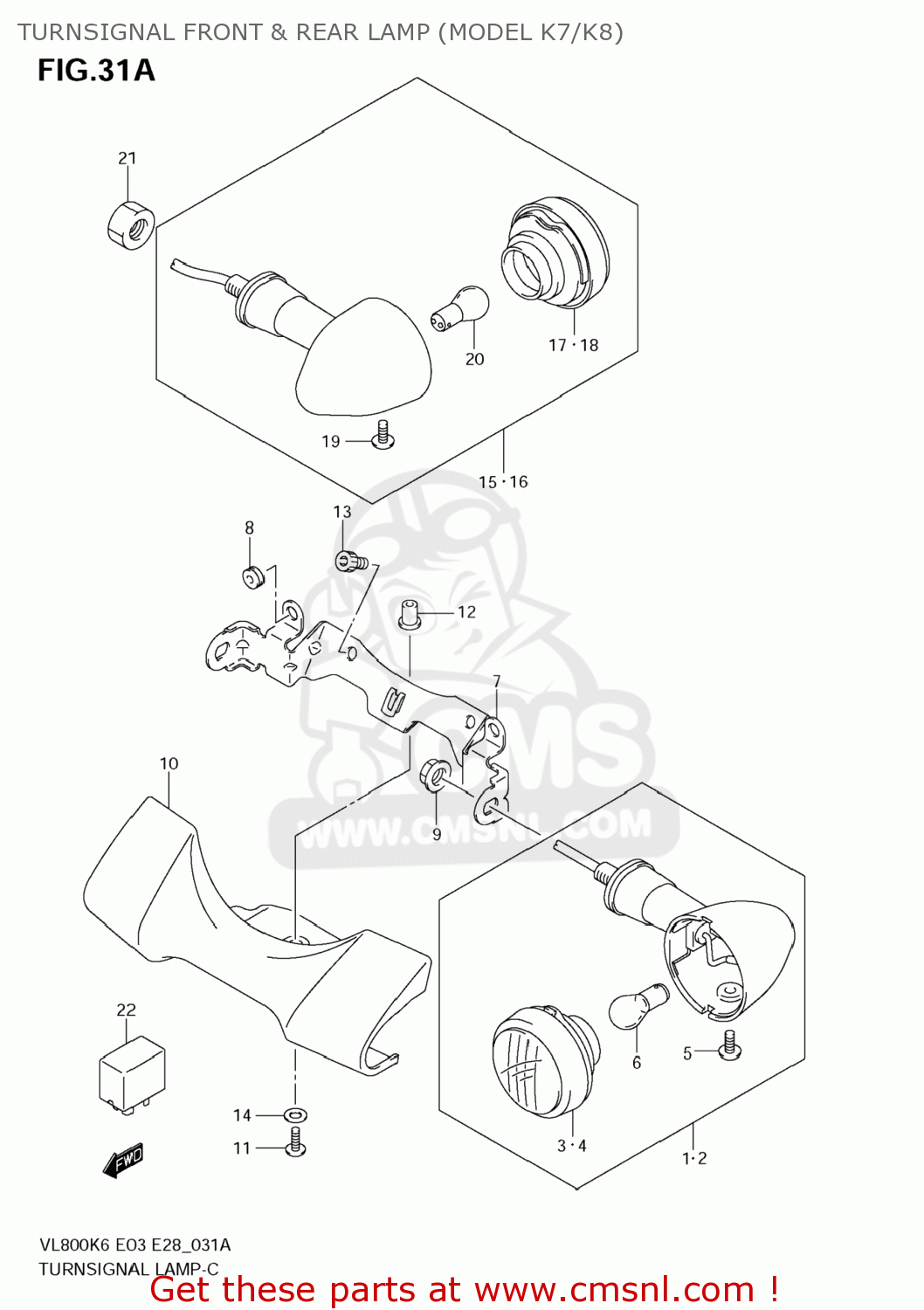

Turnsignal front & rear lamp (model k7/k8) diagram VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

TURNSIGNAL FRONT & REAR LAMP (MODEL K7/K8) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

TURNSIGNAL FRONT & REAR LAMP (MODEL K7/K8) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3560141FC0
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 82.50

2

3560241FC0
ref: 2

LAMP ASSY,FR TURN SIGNAL,L

€ 75.50

3

3561038AA0
ref: 3

LENS

€ 19.50

4

3563038AA0
ref: 4

LENS

€ 19.50

5

3562338AA0
ref: 5

SCREW(4X10)

€ 4.00

6

0947112083
ref: 6
09471-12128

BULB(12V21/5W)

€ 6.00

7

3561641FA1
ref: 7
35616-41FA2

BRACKET

€ 50.00

8

0932006016
ref: 8

CUSHION

€ 4.50

9

083100010B
ref: 9

NUT

€ 2.00

10

3564141F01
ref: 10
35641-41F02

COVER,FRONT TU

€ 52.50

11

0913905042
ref: 11

SCREW(5X16)

€ 2.50

12

0915905019
ref: 12

NUT

€ 5.50

13

071300812B
ref: 13

BOLT

€ 3.00

14

0916005048
ref: 14

WASHER(5.5X14X1.2)

€ 2.00

15

3560338AC1
ref: 15

LAMP ASSY,RR TURNSIGNAL,R

€ 99.50

16

3560438AC1
ref: 16

LAMP ASSY,RR TURNSIGNAL,L

€ 99.50

17

3563038AE1
ref: 17

LENS

€ 19.50

18

3561038AE1
ref: 18

LENS

€ 19.50

19

3562338AA0
ref: 19

SCREW(4X10)

€ 4.00

20

0947112045
ref: 20

BULB(12V21W)

€ 5.00

21

083161010B
ref: 21

NUT

€ 2.00

22

3861003F00
ref: 22

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
