REAR CUSHION LEVER

VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

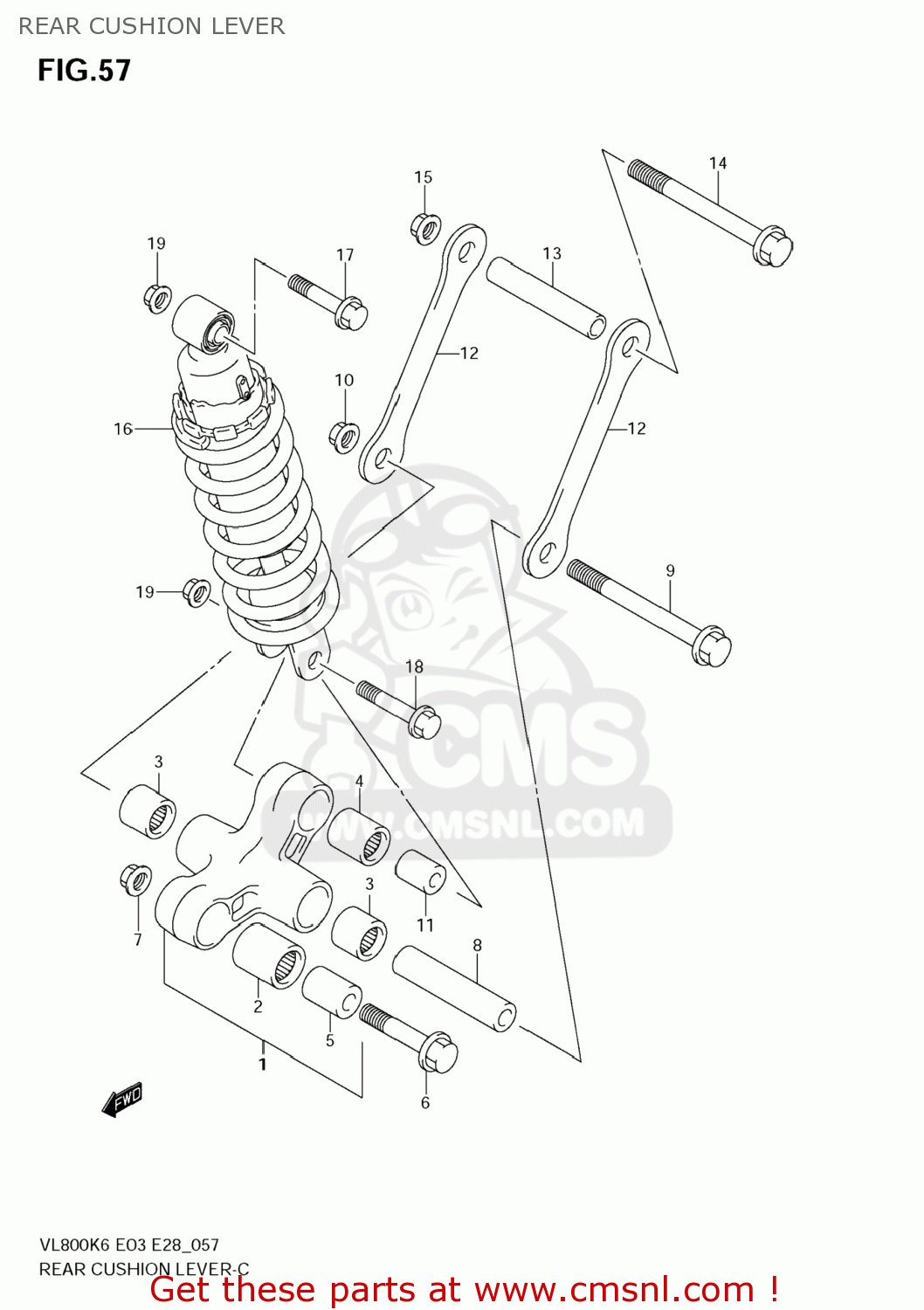

Rear cushion lever diagram VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

REAR CUSHION LEVER VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

REAR CUSHION LEVER VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

6260033880
ref: 1

LEVER SET,RR CUSHION

€ 264.00

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

0926317039
ref: 3

BEARING(17X24X20)

€ 18.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

6268412C00
ref: 5

SPACER,RR CUSHION LEVER FR

€ 12.50

6

6266842A02
ref: 6

BOLT,CUSHION LEVER FR

€ 7.00

7-1

0831931128
ref: 7-1
08319-3112A

NUT 12MM

€ 4.00

7-2

083193112A
ref: 7-2

NUT

€ 4.00

8

6262633D00
ref: 8

SPACER,RR CUSHION LEVER CTR

€ 17.50

9

6262133D00
ref: 9

BOLT,RR CUSHION LEVER CTR

€ 10.00

10-1

0831931128
ref: 10-1
08319-3112A

NUT 12MM

€ 4.00

10-2

083193112A
ref: 10-2

NUT

€ 4.00

11

6268440A10
ref: 11

SPACER,RR CUSHION LEVER

€ 11.50

12

6264141F00
ref: 12

ROD,RR CUSHION

€ 20.50

13

6262633D00
ref: 13

SPACER,RR CUSHION LEVER CTR

€ 17.50

14

6262133D00
ref: 14

BOLT,RR CUSHION LEVER CTR

€ 10.00

15-1

0831931128
ref: 15-1
08319-3112A

NUT 12MM

€ 4.00

15-2

083193112A
ref: 15-2

NUT

€ 4.00

16-1

6210041F10
ref: 16-1

ABSORBER ASSY,RR SHOCK

€ 630.50

16-2

6210041F20
ref: 16-2

ABSORBER ASSY,RR SHOCK

€ 0.00

17-1

0910310064
ref: 17-1

BOLT(10X50)

€ 4.50

17-2

0910310213
ref: 17-2

BOLT(10X52)

€ 4.00

18

0910310101
ref: 18

BOLT(10X54)

€ 3.00

19-1

0831931103
ref: 19-1
08319-3110A

NUT

€ 3.00

19-2

083193110A
ref: 19-2

NUT

€ 3.00
