SPEEDOMETER (VL800K9/TK9)

VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

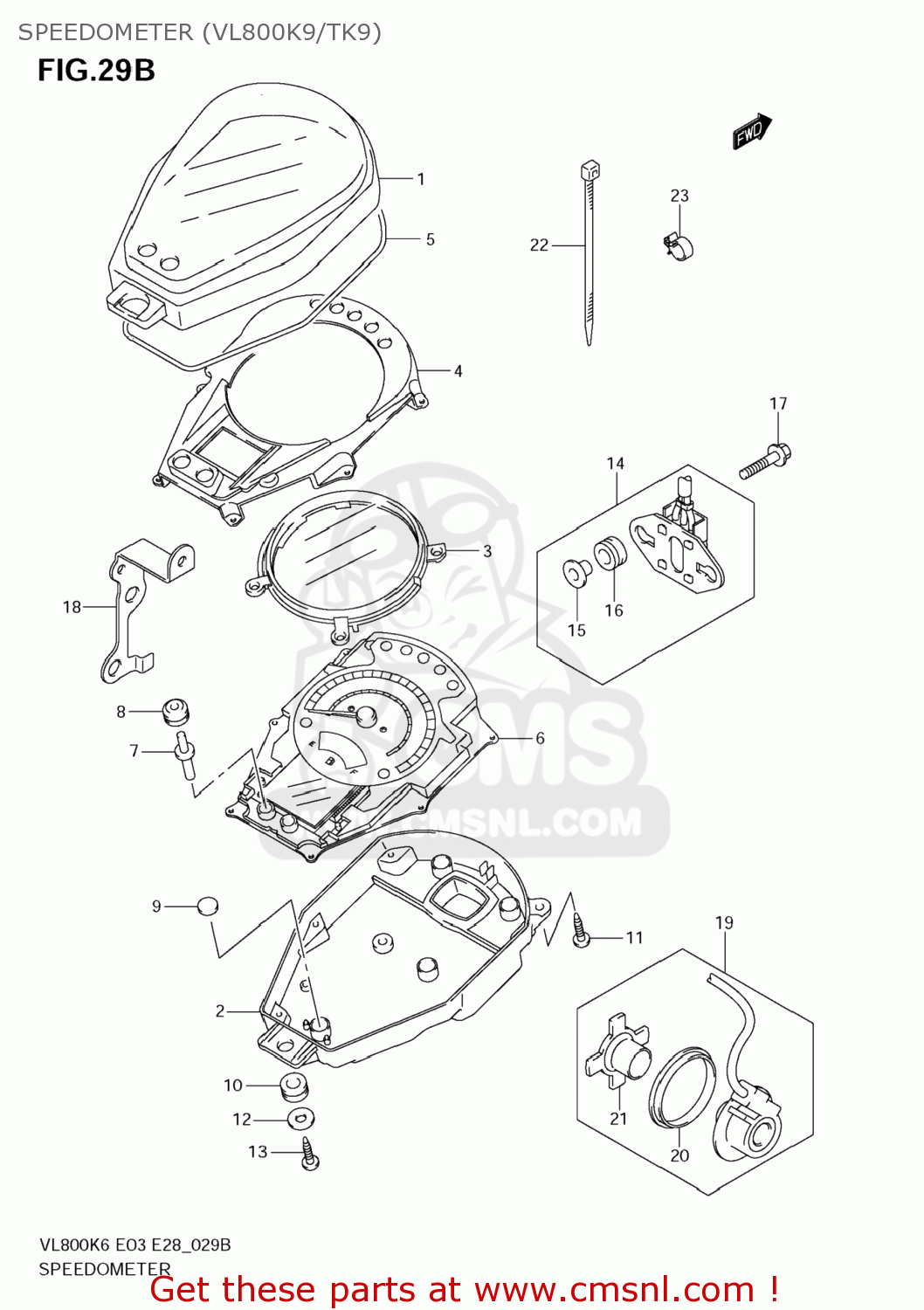

Speedometer (vl800k9/tk9) diagram VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

SPEEDOMETER (VL800K9/TK9) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

SPEEDOMETER (VL800K9/TK9) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3415143H00
ref: 1

CASE,UPR

€ 120.50

2

3415643H00
ref: 2

COVER

€ 27.00

3

3419343H00
ref: 3

RING

€ 71.50

4

3412543H00
ref: 4

PLATE,SPEEDOMETER

€ 41.00

5

3415343H00
ref: 5

PACKING (NAS)

€ 18.00

6-1

3412043H10
ref: 6-1

SPEEDOMETER

€ 810.50

6-2

3412043H00
ref: 6-2

SPEEDOMETER

€ 647.50

7

3412416G00
ref: 7

KNOB,SPEEDOMETER

€ 6.00

8

3412644G00
ref: 8

COVER,SPEEDOMETER

€ 7.00

9

3416713E00
ref: 9

SEAL

€ 5.50

10

3499643410
ref: 10

CUSHION,METER

€ 3.00

11

3418329F00
ref: 11

SCREW(3X12)

€ 3.00

12

0916005037
ref: 12

WASHER(5.5X16X1.2)

€ 1.50

13

035410516A
ref: 13

SCREW

€ 1.50

14

3651039F00
ref: 14

RESISTOR ASSY

€ 72.00

15

0918006319
ref: 15

SPACER(6.5X10X11.6)

€ 3.50

16

0932010015
ref: 16

CUSHION

€ 2.50

17

0911606047
ref: 17

BOLT(6X25)

€ 2.00

18

3493841F50
ref: 18

GUIDE,SPEED SENSOR LEAD

€ 7.50

19

3499041F10
ref: 19

SENSOR,SPEED

€ 163.00

20

0928644001
ref: 20

SEAL,OIL(44X55X6)

€ 10.00

21

3498327G00
ref: 21

MAGNETO

€ 26.00

22

0940714407
ref: 22

CLAMP(L:145)

€ 4.00

23

0940306410
ref: 23

CLAMP

€ 2.00
