FRAME (MODEL K6/K7/K8)

VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

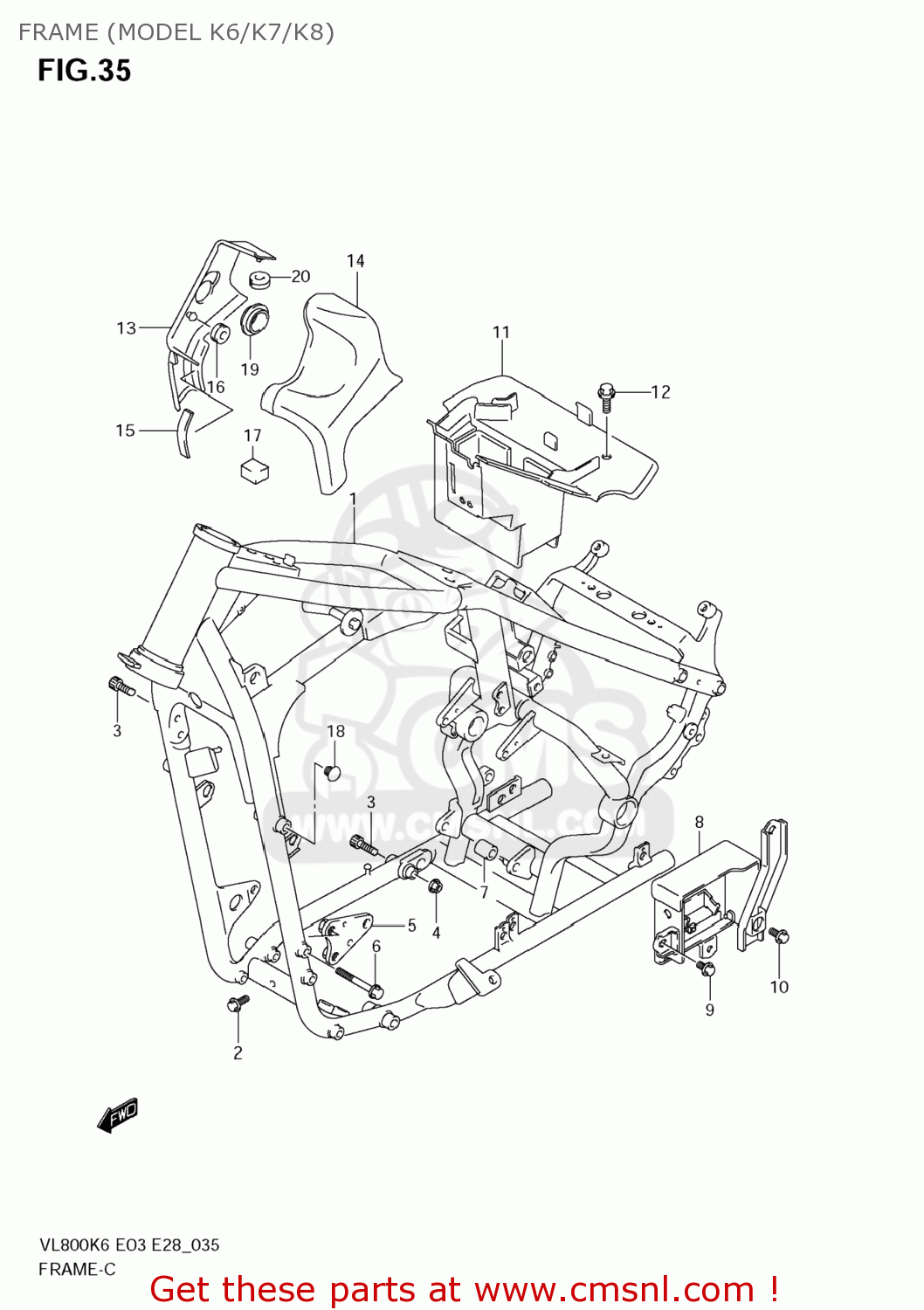

Frame (model k6/k7/k8) diagram VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

FRAME (MODEL K6/K7/K8) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

FRAME (MODEL K6/K7/K8) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

4110041F40019
ref: 1-1
41100-41F41-019

FRAME

€ 1,516.50

1-2

4110041F30019
ref: 1-2
41100-39G01-019

FRAME COMP

€ 1,339.00

1-3

4110041F32019
ref: 1-3

FRAME(BLACK)

€ 1,339.00

2

015500816B
ref: 2

BOLT

€ 3.00

3

071301035B
ref: 3

BOLT

€ 3.50

4

083193110B
ref: 4

NUT

€ 3.00

5

4192041F00
ref: 5

PLATE,ENGINE MOUNT NO.1,L

€ 16.50

6

0911208013
ref: 6

BOLT(8X65)

€ 3.50

7

4194141F00
ref: 7

SPACER,ENG MTG LR

€ 8.00

8

4154041F10
ref: 8

HOLDER COMP,EL

€ 42.00

9

015500612B
ref: 9

BOLT

€ 2.50

10

015500816B
ref: 10

BOLT

€ 3.00

11

4741041F01
ref: 11

HOLDER,ELECTRI

€ 57.00

12

0911306001
ref: 12

BOLT(6X16)

€ 3.00

13

4735141F00019
ref: 13
47351-41F01-019

COVER,FRAME HEAD,R(BLACK)

€ 49.00

14

4736141F00019
ref: 14
47361-41F02-019

COVER,FRAME HE

€ 49.00

15

5314540A00
ref: 15

CUSHION,FR FENDER

€ 1.50

16

0932008018
ref: 16

CUSHION

€ 4.00

17

1712916F00
ref: 17
17798-39G00

CUSHION

€ 5.50

18

0925009001
ref: 18

CAP(OD:14)

€ 1.00

19

4735541F00
ref: 19
47355-41F01

CAP

€ 3.00

20

0932009501
ref: 20

CUSHION

€ 2.00
