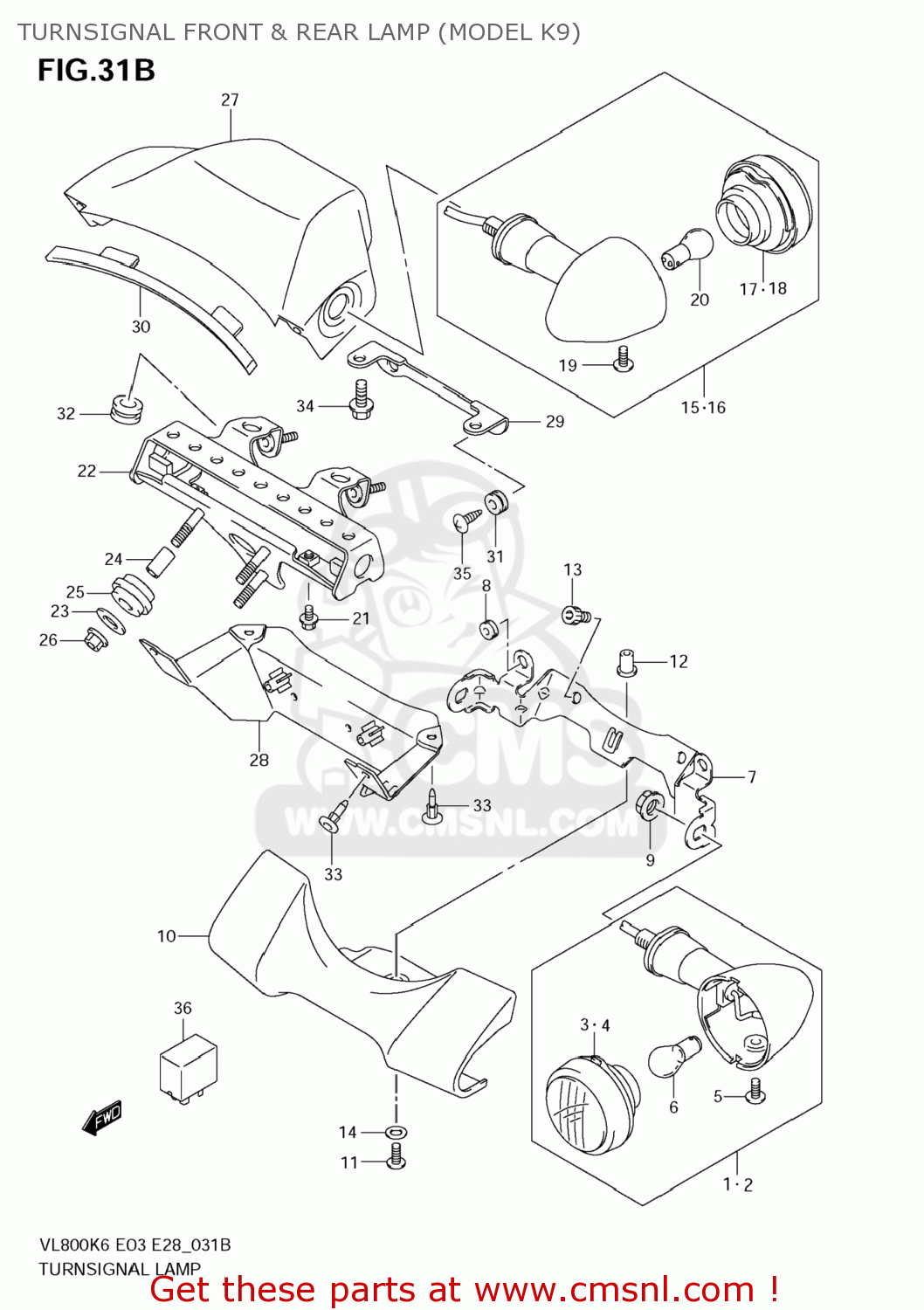

TURNSIGNAL FRONT & REAR LAMP (MODEL K9)

VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

Turnsignal front & rear lamp (model k9) diagram VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

TURNSIGNAL FRONT & REAR LAMP (MODEL K9) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

TURNSIGNAL FRONT & REAR LAMP (MODEL K9) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3560141FC0
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 82.50

2

3560241FC0
ref: 2

LAMP ASSY,FR TURN SIGNAL,L

€ 75.50

3

3561038AA0
ref: 3

LENS

€ 19.50

4

3563038AA0
ref: 4

LENS

€ 19.50

5

3562338AA0
ref: 5

SCREW(4X10)

€ 4.00

6

0947112083
ref: 6
09471-12128

BULB(12V21/5W)

€ 6.00

7

3561641FA1
ref: 7
35616-41FA2

BRACKET

€ 50.00

8

0932006016
ref: 8

CUSHION

€ 4.50

9

083100010B
ref: 9

NUT

€ 2.00

10

3564141F02
ref: 10

COVER,FR TURNSIGNAL

€ 52.50

11

0913905042
ref: 11

SCREW(5X16)

€ 2.50

12

0915905019
ref: 12

NUT

€ 5.50

13

071300812B
ref: 13

BOLT

€ 3.00

14

0916005048
ref: 14

WASHER(5.5X14X1.2)

€ 2.00

15

3560338AB2
ref: 15
35603-38AB3

LAMP ASSY,REAR

€ 99.50

16

3560438AB2
ref: 16
35604-38AB3

LAMP ASSY,REAR

€ 99.50

17

3563038AE1
ref: 17

LENS

€ 19.50

18

3561038AE1
ref: 18

LENS

€ 19.50

19

3562338AA0
ref: 19

SCREW(4X10)

€ 4.00

20

0947112045
ref: 20

BULB(12V21W)

€ 5.00

21

0910306507
ref: 21

BOLT(6X14)

€ 2.50

22

3562043H00
ref: 22

BRACKET,REAR T

€ 28.50

23

0916006077
ref: 23

WASHER(6.5X20X1.2)

€ 2.00

24

0918006195
ref: 24

SPACER(6.4X10X18)

€ 3.50

25

0932010504
ref: 25

CUSHION

€ 3.50

26

083161006A
ref: 26

NUT

€ 2.50

27-1

3562143H00
ref: 27-1

COVER,RR TURNSIGNAL UPR

€ 63.00

27-2

3562143H50
ref: 27-2

COVER,RR TURNSIGNAL UPR

€ 0.00

28-1

3562243H00
ref: 28-1

COVER,RR TURNSIGNAL LWR

€ 41.00

28-2

3562243H50
ref: 28-2

COVER,RR TURNSIGNAL LWR

€ 0.00

29

3562343H00
ref: 29

BRACKET,RR TURNSIGNAL COVER

€ 5.50

30

3565743H00
ref: 30

GASKET,RR TURNSIGNAL COVER (NAS)

€ 7.50

31

0932006016
ref: 31

CUSHION

€ 4.50

32

0932008066
ref: 32

CUSHION

€ 7.50

33

09409063145PK
ref: 33

CLIP(BLACK)

€ 3.50

34

015500612A
ref: 34

BOLT

€ 2.50

35

035410510A
ref: 35

SCREW

€ 1.50

36

3861003F00
ref: 36

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
