REAR COMBINATION LAMP (MODEL K6/K7/K8)

VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

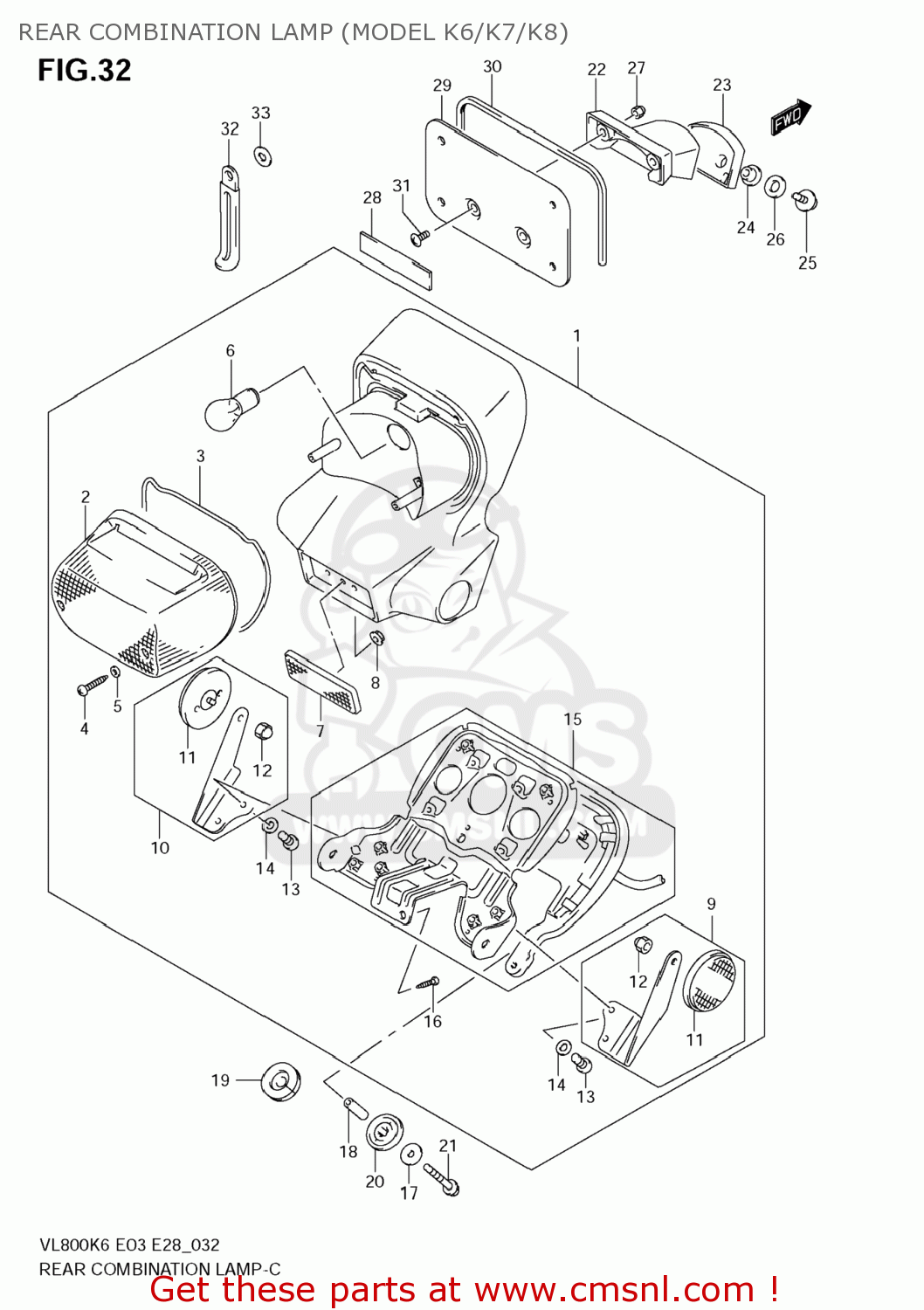

Rear combination lamp (model k6/k7/k8) diagram VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

REAR COMBINATION LAMP (MODEL K6/K7/K8) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

REAR COMBINATION LAMP (MODEL K6/K7/K8) VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3571041F61
ref: 1

LAMP ASSY,RR COMBINATION

€ 209.00

2

3571210F30
ref: 2

LENS

€ 50.00

3

3561380F00
ref: 3

GASKET,FR TURN SIGNAL LAMP (NAS)

€ 6.00

4

0321104207
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112083
ref: 6
09471-12128

BULB(12V21/5W)

€ 6.00

7

3597007F00
ref: 7
35970-07F01

REFLECTOR ASSEMBLY,REAR

€ 20.50

8

083162005A
ref: 8

NUT

€ 2.00

9

3507841F30
ref: 9

REFLEX REFLECTOR,R

€ 29.50

10

3507941F30
ref: 10

REFLEX REFLECTOR,L

€ 31.00

11

3597014A10
ref: 11

REFLEX REFLECTOR,RR

€ 12.00

12

0831320057
ref: 12

NUT

€ 1.50

13

021120512A
ref: 13

SCREW

€ 1.50

14

083210105A
ref: 14

WASHER,LOCK

€ 2.00

15

3571841F00
ref: 15

SOCKET & CORD ASSY

€ 171.00

16

032110516A
ref: 16

SCREW

€ 1.50

17

0916006088
ref: 17

WASHER(6.5X20X1.6)

€ 2.00

18

0918006275
ref: 18

SPACER(6.5X9X23)

€ 2.50

19

0930810017
ref: 19

GROMMET

€ 3.50

20

0932009046
ref: 20

CUSHION

€ 7.00

21

015500635B
ref: 21

BOLT

€ 2.50

22

3592841F00
ref: 22

STAY,LICENSE PLATE HOLDER

€ 101.00

23

3592941F00
ref: 23

CUSHION,LICENSE HOLDER STAY

€ 29.00

24

0916906077
ref: 24

WASHER

€ 4.50

25

015500630B
ref: 25

BOLT

€ 2.00

26

0916006109
ref: 26

WASHER(6.5X18X1.6)

€ 2.00

27

0831310067
ref: 27

NUT

€ 2.00

28

3365226E00
ref: 28

PROTECTOR(20X90)X1.0

€ 3.00

29

6346141F30
ref: 29
63461-41F31

HOLDER,LICENSE

€ 56.00

30

9463519C00
ref: 30

MOLDING

€ 6.00

31

021420616B
ref: 31

SCREW

€ 1.50

32

0940406429
ref: 32

CLAMP(L:45)

€ 2.50

33

0916006079
ref: 33
09160-06052

WASHER(6.5X16X1.2)

€ 2.00
