FRAME BRACE

VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

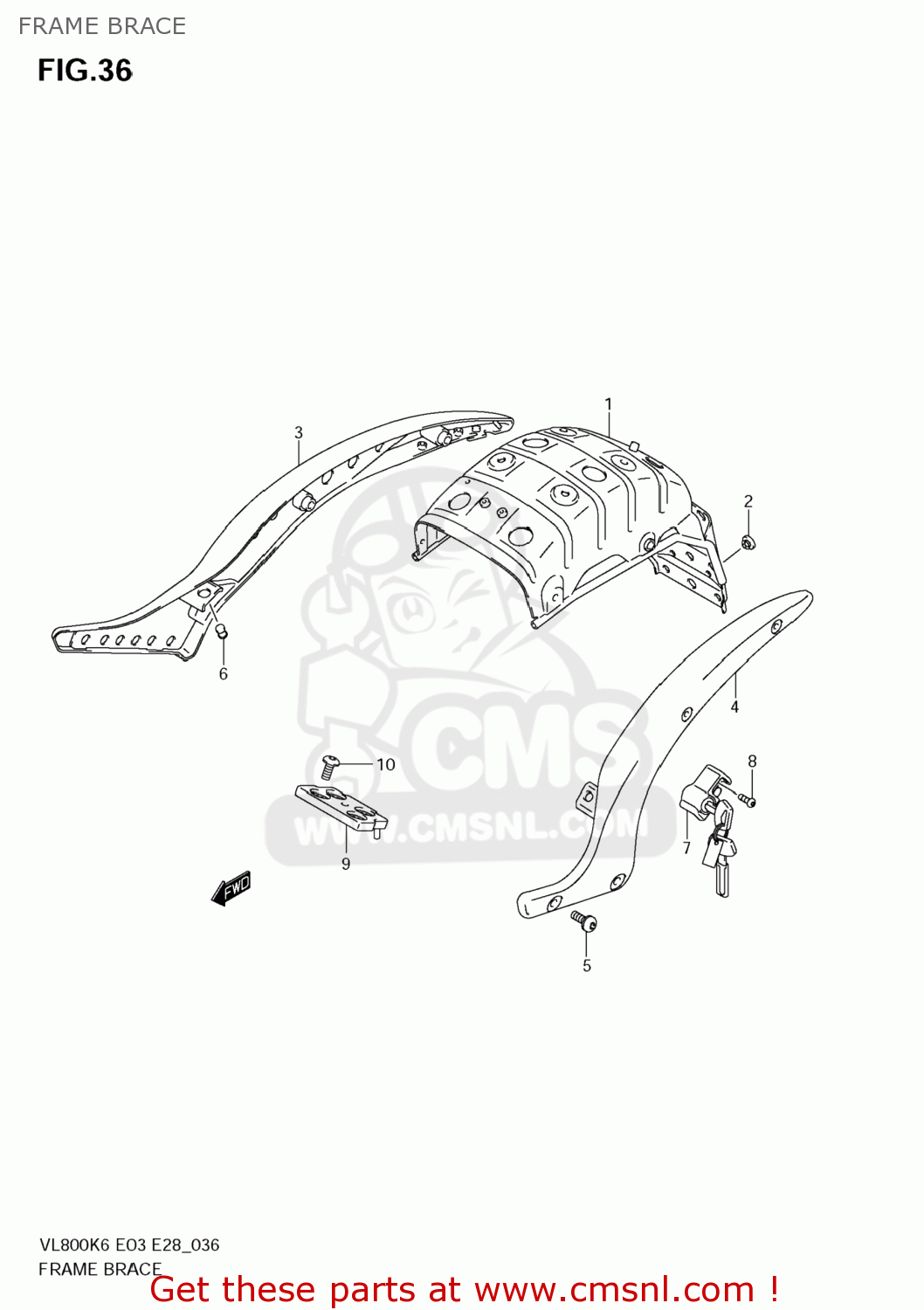

Frame brace diagram VL800C BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

4158041F10
ref: 1

BRACE,RR FRAME

€ 238.50

0932108022
ref: 2

CUSHION

€ 2.50

4161041F00
ref: 3

GRIP,FRAME HANDLE,R

€ 224.00

4162041F00
ref: 4

GRIP,FRAME HANDLE,L

€ 228.00

0913910003
ref: 5

BOLT(10X25)

€ 6.00

0925007004
ref: 6

PLUG(OD:9)

€ 2.00

9570041821
ref: 7

LOCK SET,HELMET

€ 88.00

0913906089
ref: 8

SCREW(6X14)

€ 2.50

4131041F50
ref: 9

BRACKET,FUEL TANK

€ 74.50

0910608140
ref: 10

BOLT(8X16)

€ 6.00
