CARBURETOR (FRONT)

VS1400GLP INTRUDER 1992 (N) USA (E03)

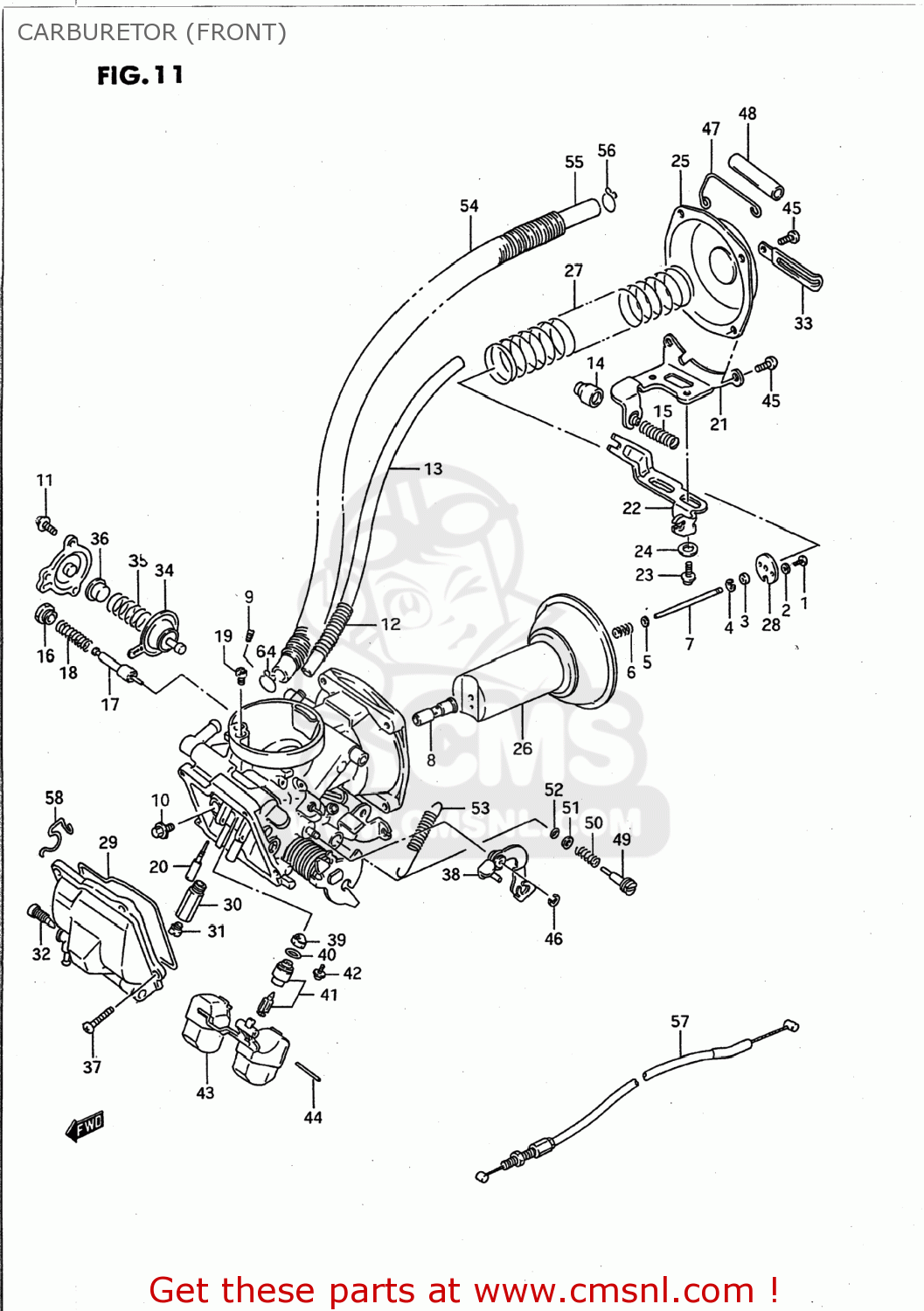

Carburetor (front) diagram VS1400GLP INTRUDER 1992 (N) USA (E03)

CARBURETOR (FRONT) VS1400GLP INTRUDER 1992 (N) USA (E03)
CARBURETOR (FRONT) VS1400GLP INTRUDER 1992 (N) USA (E03)
CARBURETOR (FRONT) VS1400GLP INTRUDER 1992 (N) USA (E03)
prices are in EUR
ref
part #
description
quantity

1321038B01
ref:
13210-38B40
CARBURETOR ASSEMBLY
€ 301.50

1321038B40
ref:
CARBURETOR ASSY,FR
€ 301.50

1321038B11
ref:
13210-38B50
CARBURETOR ASSEMBLY
€ 319.00

1321038B50
ref:
CARBURETOR ASSEMBLY,FRONT
€ 319.00

1321038B50
ref:
CARBURETOR ASSEMBLY,FRONT
€ 319.00
1-1
0211203068
ref: 1-1
02112-0306B
SCREW
0211203068
€ 2.00
1-2
0211203063
ref: 1-2
02112-0306B
SCREW
0211203063
€ 2.00
2-1
0832121038
ref: 2-1
09162-03001
LOCK WASHER
€ 1.50
2-2
0832121033
ref: 2-2
08321-2103B
WASHER,LOCK
0832121033
€ 1.50
3
1338747010
ref: 3
RING
1338747010
€ 7.50
4
1339410010
ref: 4
CLIP
1339410010
€ 4.50
5
1338244030
ref: 5
WASHER
1338244030
€ 3.50
6
1338844030
ref: 6
SPRING
1338844030
€ 6.00
7-1
1338338A00
ref: 7-1
NEEDLE JET
€ 10.00
7-2
1338338B40
ref: 7-2
NEEDLE,JET
1338338B40
€ 17.50
8
0949400570
ref: 8
JET,NEEDLE(O-9)
0949400570
€ 26.00
9-1
0949340002
ref: 9-1
JET,AIR
€ 16.00
9-2
0949328007
ref: 9-2
09493-28006
JET,AIR
€ 15.50
10
1360538B00
ref: 10
SCREW
1360538B00
€ 7.50
11
0211204106
ref: 11
02112-0410A
SCREWM4X0.7X10
€ 1.00
12
1368938A00
ref: 12
SPRING
1368938A00
€ 8.50
13
1368438A20
ref: 13
44420-44AR0
HOSE
€ 13.00
14
1368104010
ref: 14
CAP
1368104010
€ 3.00
15
1341737100
ref: 15
SPRING
1341737100
€ 4.00
16
1341805A10
ref: 16
HOLDER,GUIDE
1341805A10
€ 12.00
17
1341138B00
ref: 17
13411-05300
PLUNGER
1341138B00
€ 23.50
18
1341743010
ref: 18
SPRING
1341743010
€ 3.50
19-1
0949255010
ref: 19-1
09492-55012
JET,PILOT
0949255010
€ 13.50
19-2
0949270004
ref: 19-2
JET,PILOT(70)
0949270004
€ 9.50
20
0949250018
ref: 20
JET,PILOT(50)
0949250018
€ 17.50
21
1362838B00
ref: 21
BRACKET
€ 32.50
22
1342238B00
ref: 22
PLATE
€ 19.50
23
1360205A30
ref: 23
SCREW
1360205A30
€ 4.50
24
1333205A20
ref: 24
WASHER
1333205A20
€ 3.00
25
1350238A00
ref: 25
COVER,DIAPHRAGM
1350238A00
€ 34.00
26
1350005A10
ref: 26
DIAPHRAGM,CARBURETOR
1350005A10
€ 178.00
27-1
1350305A10
ref: 27-1
SPRING,DIAPHRAGM
1350305A10
€ 12.00
27-2
1350338B00
ref: 27-2
SPRING,DIAPHRAGM
1350338B00
€ 12.00
28
1338937400
ref: 28
PLATE
1338937400
€ 5.50
29
1325138A00
ref: 29
O RING,FLOAT CHAMBER
1325138A00
€ 6.50
30
1338505A11
ref: 30
HOLDER,MAIN JET
1338505A11
€ 14.00
31
0949125014
ref: 31
JET,MAIN(125)
0949125014
€ 11.50
32-1
1324738B00
ref: 32-1
13247-02340
PLUG
€ 5.50
32-2
1324713A00
ref: 32-2
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
33
0940406401
ref: 33
09404-06432
CLAMP L:35
0940406401
€ 2.50
34
1348005A10
ref: 34
DIAPHRAGM ASSY
1348005A10
€ 54.50
35-1
1348138B00
ref: 35-1
13481-38B90
SPRING
€ 4.00
35-2
1348138B40
ref: 35-2
SPRING
1348138B40
€ 5.50
36
1348237300
ref: 36
PLATE
€ 0.00
37
1360104148
ref: 37
SCREW
1360104148
€ 2.50
38
1355438B10
ref: 38
13554-45C20
LEVER,ASSEMBLY
€ 38.50
39
1337684110
ref: 39
13376-19F00
FILTER
€ 6.50
40
1337444080
ref: 40
13374-35C00
O-RING,NEEDLE VALVE
1337444080
€ 6.00
41-1
1337038B00
ref: 41-1
VALVE ASSY,NEEDLE
1337038B00
€ 64.50
41-2
1337039A00
ref: 41-2
VALVE ASSY,NEEDLE
1337039A00
€ 67.50
42
1360205A10
ref: 42
SCREW
1360205A10
€ 4.00
43
1325038B00
ref: 43
FLOAT
1325038B00
€ 32.00
44
1325420010
ref: 44
PIN,FLOAT
1325420010
€ 3.00
45-1
0211205127
ref: 45-1
SCREW
0211205127
€ 2.50
45-2
0211205123
ref: 45-2
02112-0512A
SCREW
0211205123
€ 1.50
46
1329849000
ref: 46
13415-38300
E-RING
€ 2.00
47
1367138A00
ref: 47
CLIP
1367138A00
€ 10.50
48
1368438A00
ref: 48
09352-60103-600
HOSE
€ 18.00
49
1368338B00
ref: 49
13683-38B01
(CA) HOSE SET,FUEL
€ 19.50
50
1357338B30
ref: 50
SPRING
€ 7.50
51
1369224A00
ref: 51
CLAMP
€ 5.00
52-1
1368438B00
ref: 52-1
HOSE
1368438B00
€ 21.50
52-2
1368438B10
ref: 52-2
SHIELD,FUEL HOSE HEATER
€ 3.50
53
0935465113600
ref: 53
HOSE(6.5X11.5X600)
0935465113600
€ 26.00
54
1367138B00
ref: 54
09401-11403
CLIP
€ 3.00
55
1364138B01
ref: 55
13641-38B03
CABLE,IDLE SYNCRO
€ 17.50
