HEADLAMP
VS1400GLP INTRUDER 1992 (N) USA (E03)

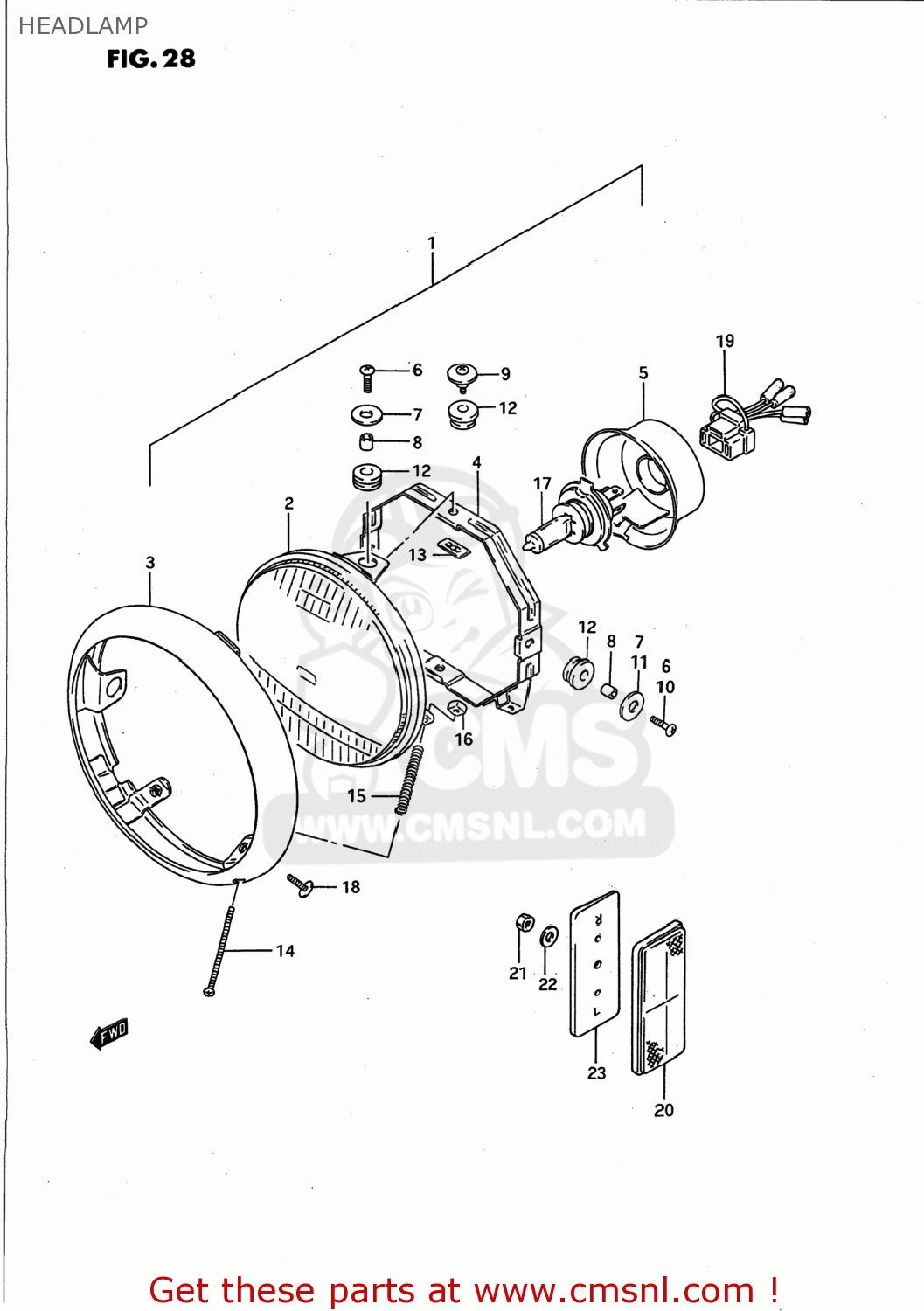

Headlamp diagram VS1400GLP INTRUDER 1992 (N) USA (E03)
HEADLAMP VS1400GLP INTRUDER 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510038B30
ref: 1-1
35100-38A61-999
HEADLAMP ASSEMBLY
€ 236.00
1-2
3510038A30999
ref: 1-2
35100-38A61-999
HEADLAMP ASSY
€ 236.00
2
3512138A30
ref: 2
UNIT,LAMP
€ 106.00
3
3511138A00
ref: 3
RIM
€ 27.00
4
3513038A00
ref: 4
RING,MOUNTING
€ 15.00
5
3517338A00
ref: 5
COVER,SOCKET
€ 12.50
6
0211205167
ref: 6
SCREW
€ 2.50
7
3513845230
ref: 7
09160-05045
WASHER
€ 2.00
8
3513345230
ref: 8
SPACER
€ 2.00
9
3513638A00
ref: 9
SCREW,MOUNTING
€ 2.50
10
0211205167
ref: 10
SCREW
€ 2.50
11
0916005003
ref: 11
09160-05045
WASHER (5.5X18X1)
€ 2.00
12
3513945230
ref: 12
CUSHION
€ 1.50
13
3515548510
ref: 13
NUT
€ 2.00
14-1
3515149430
ref: 14-1
09125-04020
SCREW,HEADLAMP ADJUST
€ 3.00
14-2
3515138A00
ref: 14-2
SCREW,ADJUSTING(4X50)
€ 2.50
15-1
3515449430
ref: 15-1
35154-31300
SPRING,HEADLAMP ADJUST
€ 2.00
15-2
3515431300
ref: 15-2
SPRING
€ 2.00
16
3513545600
ref: 16
NUT
€ 3.00
17
0947112060
ref: 17
BULB(12V60/55W,H4)
€ 8.00
18-1
0213205127
ref: 18-1
02122-05127
SCREW 5X12
€ 2.50
18-2
0912705013
ref: 18-2
SCREW(5X12)
€ 2.50
18-3
0212205127
ref: 18-3
SCREW
€ 2.50
19-1
3685338B00
ref: 19-1
36853-38B10
WIRE
€ 20.50
19-2
3685338B10
ref: 19-2
WIRE,HEADLAMP LEAD
€ 20.50
20
3595038B00
ref: 20
REFLEX REFLECTOR ASSY,FR SIDE
€ 23.50
21-1
0831000053
ref: 21-1
08310-0005A
NUT
€ 2.50
21-2
0831610053
ref: 21-2
08316-1005A
NUT
€ 2.50
22
0832201053
ref: 22
08322-0105A
WASHER
€ 2.50
23
3595438B00
ref: 23
SPACER,FR SIDE RR
€ 3.50
