STARTING MOTOR

VS1400GLP INTRUDER 1992 (N) USA (E03)

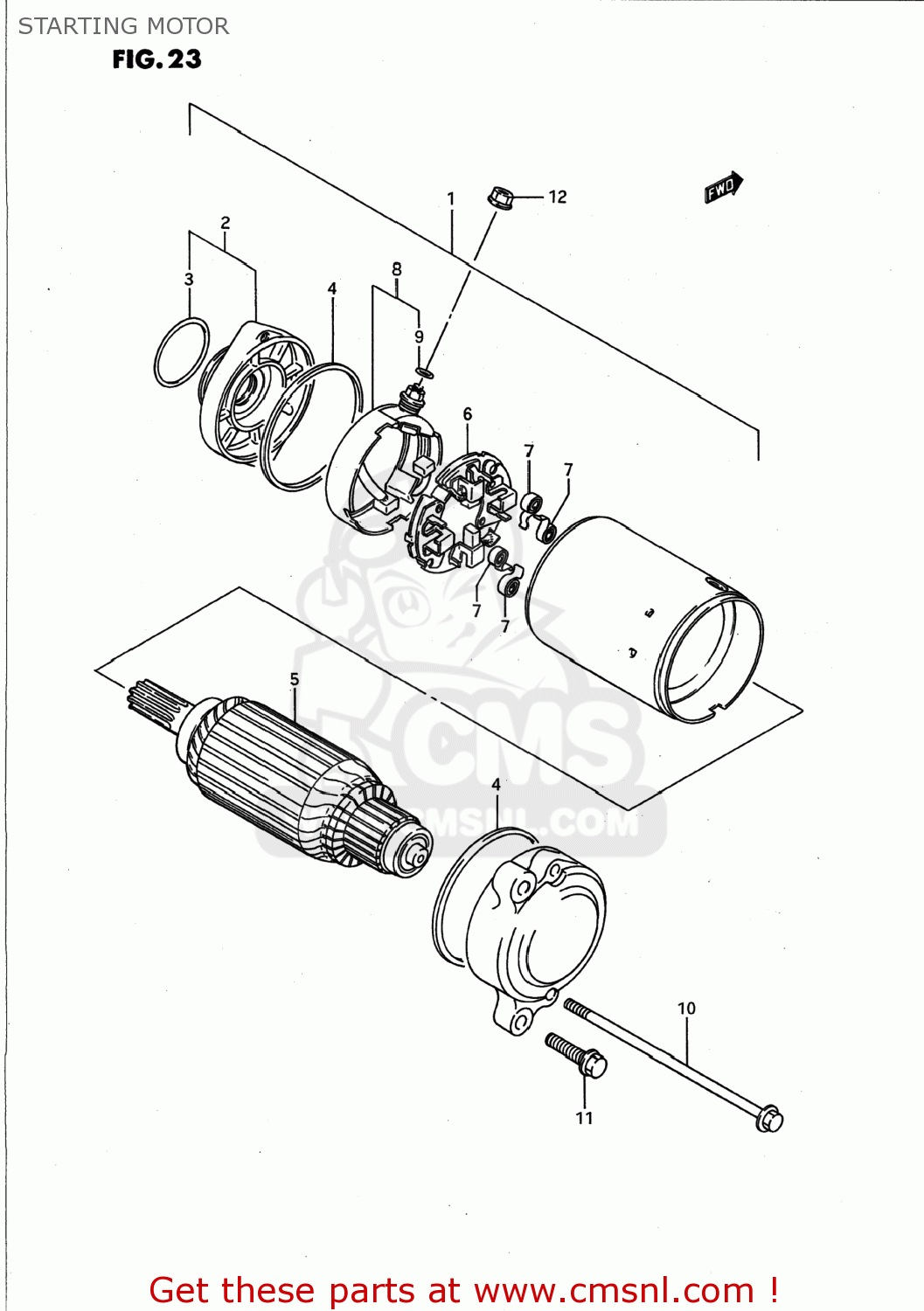

Starting motor diagram VS1400GLP INTRUDER 1992 (N) USA (E03)

STARTING MOTOR VS1400GLP INTRUDER 1992 (N) USA (E03)

STARTING MOTOR VS1400GLP INTRUDER 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3110038B00
ref: 1-1
31100-38B02

MOTOR ASSEMBLY,STARTING

€ 973.50

1-2

3110038B01
ref: 1-2
31100-38B02

MOTOR ASSEMBLY,STARTING

€ 973.50

2

3115038B00
ref: 2

BRACKET SET

€ 114.50

3

3115638B00
ref: 3
09280-35005

O-RING

€ 9.50

4

3126431300
ref: 4
31264-32E00

O RING

€ 7.50

5-1

3131038B00
ref: 5-1
31310-38B01

ARMATURE

€ 278.50

5-2

3131038B01
ref: 5-2

ARMATURE

€ 278.50

6

3113238B00
ref: 6

HOLDER SET,BRUSH

€ 45.00

7

3113538B00
ref: 7

SPRING,BRUSH

€ 3.50

8

3113038B00
ref: 8

TERMINAL SET,BRUSH

€ 45.00

9

3114349040
ref: 9

O RING

€ 3.00

10-1

3128138B00
ref: 10-1
31281-24B10

BOLT

€ 5.00

10-2

3128124B10
ref: 10-2

BOLT

€ 5.00

11

0154706257
ref: 11

BOLT

€ 2.50

12

0836135066
ref: 12
08361-3506A

NUT

€ 2.00
