MAGNETO

VS1400GLP INTRUDER 1992 (N) USA (E03)

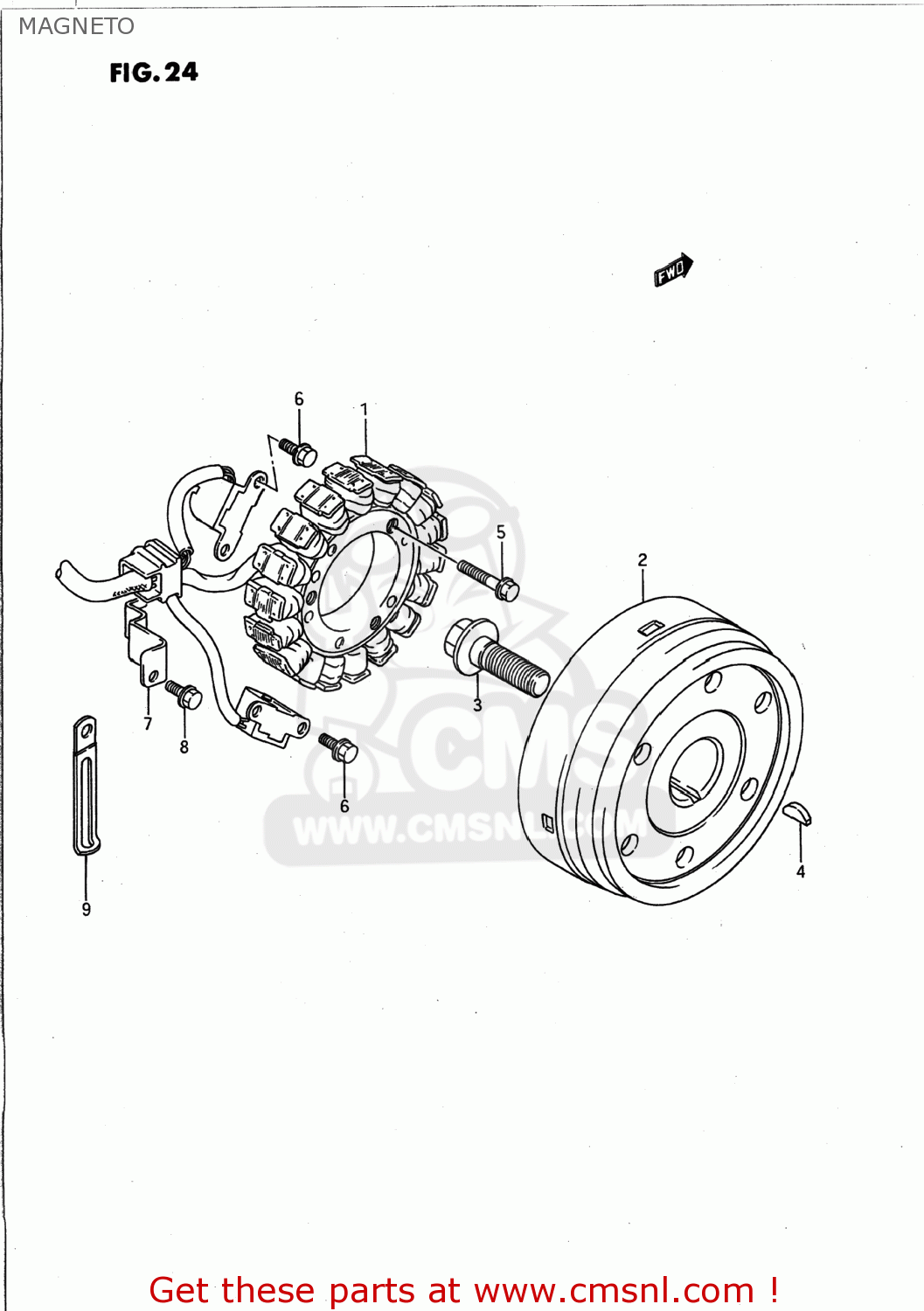

Magneto diagram VS1400GLP INTRUDER 1992 (N) USA (E03)

MAGNETO VS1400GLP INTRUDER 1992 (N) USA (E03)

MAGNETO VS1400GLP INTRUDER 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210138B00
ref: 1
32101-38B02

STATOR ASSEMBLY

€ 1,055.00

2-1

3210238B00
ref: 2-1

ROTOR ASSEMBLY

€ 0.00

2-2

3210238B10
ref: 2-2

ROTOR ASSY

€ 743.00

3

0910314001
ref: 3

BOLT(14X43)

€ 7.00

4

0942005007
ref: 4

KEY

€ 3.00

5-1

0154706307
ref: 5-1

BOLT

€ 2.50

5-2

0154706303
ref: 5-2
01547-0630B

BOLT,G/S SWITC

€ 3.00

6-1

0154705108
ref: 6-1
01547-05107

BOLT

€ 1.50

6-2

0154705103
ref: 6-2
01547-0510B

BOLT

€ 2.50

7-1

3237138B00
ref: 7-1
32371-45C00

CLAMP,MAGNETO LEAD WIRE

€ 3.00

7-2

3237145C00
ref: 7-2

CLAMP,MAGNETO LEAD WIRE

€ 3.00

8-1

0154705128
ref: 8-1
01547-0512B

BOLT

€ 2.00

8-2

0154705123
ref: 8-2
01547-0512B

BOLT

€ 2.00

8-3

0154705103
ref: 8-3
01547-0510B

BOLT

€ 2.50

9

0940408402
ref: 9
09404-08420

CLAMP

€ 3.50
