WIRING HARNESS
VS1400GLP INTRUDER 1992 (N) USA (E03)

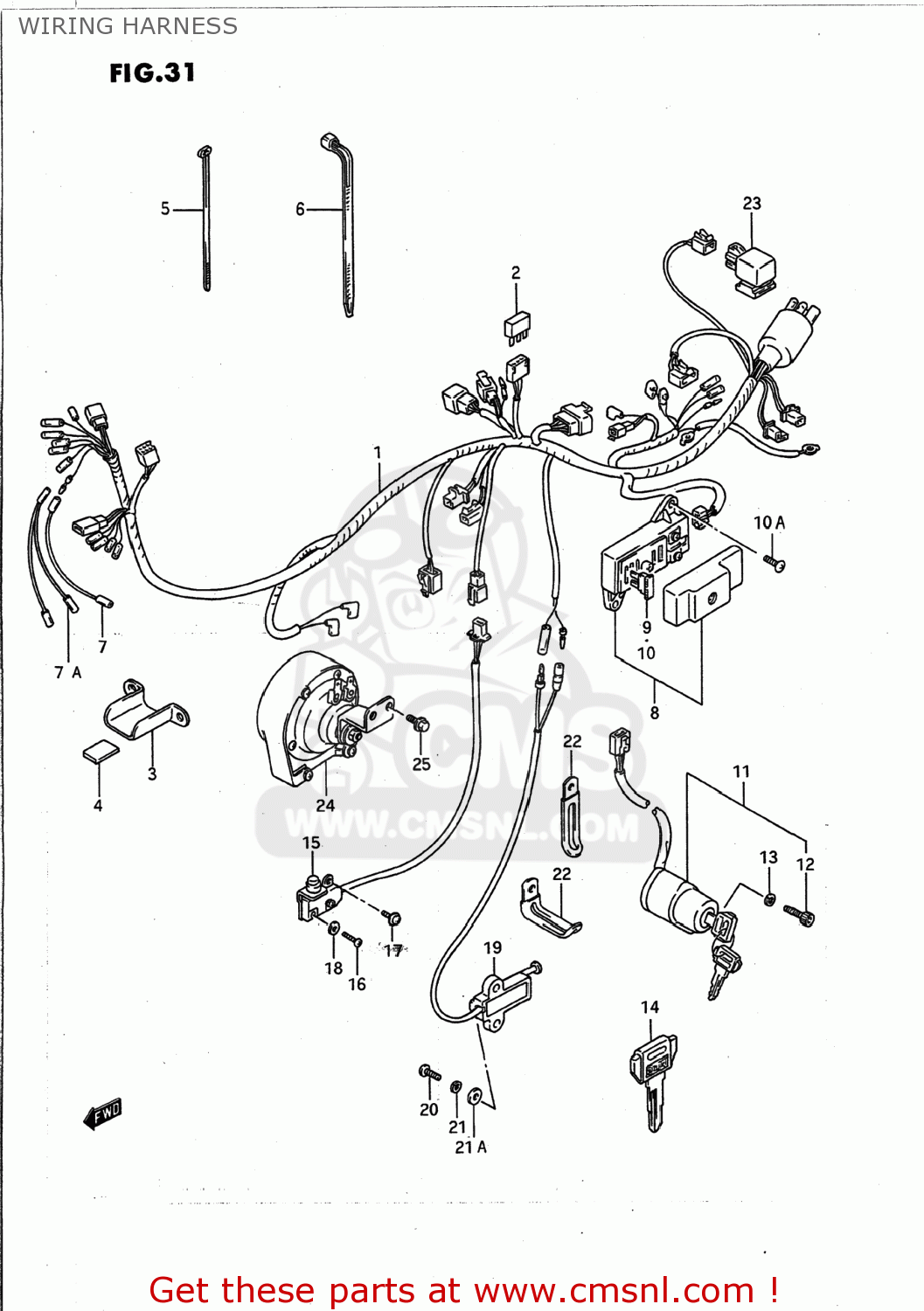

Wiring harness diagram VS1400GLP INTRUDER 1992 (N) USA (E03)
WIRING HARNESS VS1400GLP INTRUDER 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661038B00
ref: 1-1
36610-38B21
HARNESS,WIRING
€ 311.00
1-2
3661038B80
ref: 1-2
36610-38B21
HARNESS,WIRING
€ 311.00
1-3
3661039B30
ref: 1-3
36610-39B01
HARNESS,WIRING
€ 365.00
1-4
3661039B80
ref: 1-4
36610-39B01
HARNESS,WIRING
€ 365.00
1-5
3661039B01
ref: 1-5
HARNESS,WIRING
€ 365.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3
3661938B00
ref: 3
GUIDE,WIRING HARNESS
€ 6.50
4
3692038B00
ref: 4
CUSHION
€ 4.50
5
0940709402
ref: 5
CLAMP
€ 3.00
6-1
0940714403
ref: 6-1
CLAMP(L:125)
€ 2.50
6-2
0940714407
ref: 6-2
CLAMP(L:145)
€ 4.00
6-3
0940718403
ref: 6-3
09407-18402
CLAMP L:165
€ 2.50
7
3685238B00
ref: 7
36852-38B10
WIRE
€ 5.50
7A
3685238B10
ref: 7A
WIRE,CLUTCH SW CONNECTOR
€ 5.50
8-1
3674038B00
ref: 8-1
36740-19C00
BOX ASSEMBLY,FUSE
€ 88.00
8-2
3674019C00
ref: 8-2
BOX ASSY,FUSE
€ 88.00
9
0948125101
ref: 9
09481-25103
FUSE (25A)
€ 2.50
10
0948110101
ref: 10
FUSE(10A)
€ 2.50
10A
0214206163
ref: 10A
02142-0616A
SCREW
€ 2.50
11-1
3711038B00
ref: 11-1
37110-38B03
SWITCH ASSEMBLY,IGNITION
€ 71.50
11-2
3711038B01
ref: 11-2
37110-38B03
SWITCH ASSEMBLY,IGNITION
€ 71.50
11-3
3711038B02
ref: 11-3
37110-38B03
SWITCH ASSEMBLY,IGNITION
€ 71.50
12
0711005167
ref: 12
07130-05167
BOLT
€ 2.50
13
0832101057
ref: 13
08321-0105A
WASHER,LOCK
€ 2.00
14-1
3714603A00
ref: 14-1
KEY,BLANK(TYPE:C)
€ 6.00
14-2
3714603A10
ref: 14-2
KEY,BLANK(TYPE:D)
€ 6.00
14-3
3714603A20
ref: 14-3
KEY,BLANK(TYPE:E)
€ 6.00
14-4
3714603A30
ref: 14-4
KEY,BLANK(TYPE:F)
€ 6.00
15
3774038B00
ref: 15
SWITCH ASSY,STOP LAMP
€ 79.00
16-1
0211204167
ref: 16-1
02112-0416A
SCREW
€ 1.00
16-2
0211204163
ref: 16-2
02112-0416A
SCREW 4X16
€ 1.00
17-1
0215204067
ref: 17-1
SCREW
€ 1.50
17-2
0214204063
ref: 17-2
02142-0406A
SCREW
€ 1.50
18
0832221045
ref: 18
08322-0104A
WASHER
€ 5.00
19-1
3784039A10
ref: 19-1
37840-39A22
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
19-2
3784039A20
ref: 19-2
37840-39A22
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
19-3
3784039A21
ref: 19-3
37840-39A22
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
19-4
3784039A22
ref: 19-4
SWITCH ASSY,SIDE STAND
€ 87.50
20-1
0211206164
ref: 20-1
02112-0616A
SCREW
€ 2.00
20-2
0211206205
ref: 20-2
02112-0620A
SCREW
€ 2.00
20-3
0211276205
ref: 20-3
02112-7620B
SCREW
€ 2.50
20-4
0211276203
ref: 20-4
02112-7620B
SCREW
€ 2.50
21
0832121064
ref: 21
08321-0106A
WASHER,LOCK
€ 2.00
21A
0832221064
ref: 21A
08322-0106B
WASHER
€ 2.00
22
0940406206
ref: 22
09404-06432
CLAMP(L:45)
€ 2.50
23-1
3874038B00
ref: 23-1
RELAY ASSY
€ 37.50
23-2
3874024X50
ref: 23-2
RELAY ASSY
€ 37.50
24
3850038B01
ref: 24
HORN ASSY
€ 112.50
25-1
0151706125
ref: 25-1
01550-0612A
BOLT 6X12
€ 2.50
25-2
0155006123
ref: 25-2
01550-0612A
BOLT
€ 2.50
