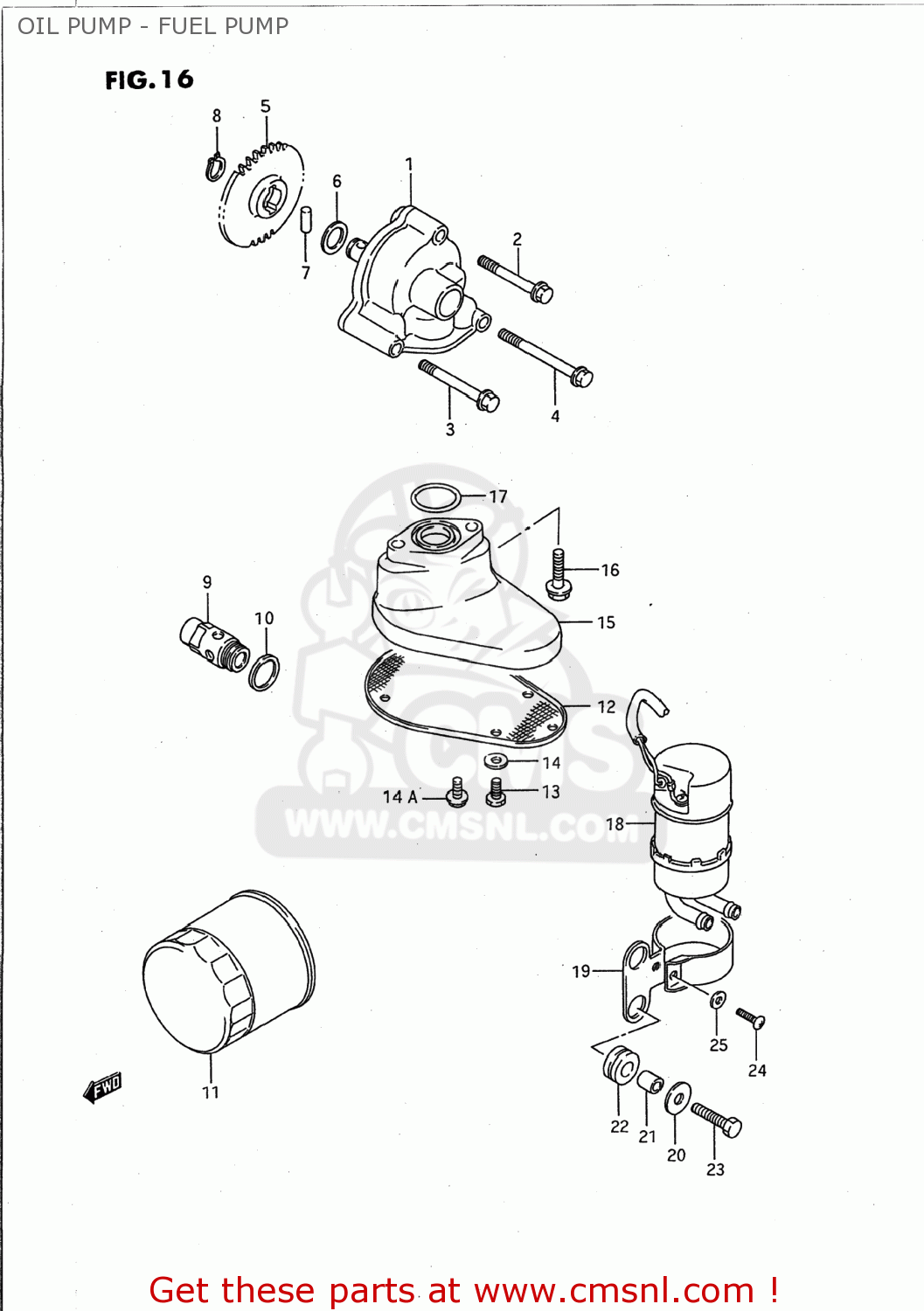

OIL PUMP - FUEL PUMP - VS1400GLP INTRUDER 1992 (N) USA (E03)

ref

part #

description

quantity

1

1640038B00
ref: 1

PUMP ASSY,ENGINE OIL

€ 244.50

2-1

0154706457
ref: 2-1

BOLT

€ 2.50

2-2

0154706453
ref: 2-2
01547-0645B

BOLT

€ 3.00

3-1

0154706557
ref: 3-1

BOLT

€ 2.50

3-2

0154706553
ref: 3-2
01547-0655B

BOLT

€ 3.00

4-1

0154706657
ref: 4-1

BOLT

€ 2.00

4-2

0154706653
ref: 4-2
01547-0665B

BOLT

€ 2.00

5

1633138B00
ref: 5
16331-38B01

GEAR,OIL PUMP DRIVEN

€ 61.50

6

0822112205
ref: 6

SHIM

€ 1.50

7

0926105006
ref: 7

PIN(5X18)

€ 1.50

8

0833131126
ref: 8
08331-3112A

CIRCLIP,12 MM

€ 2.00

9

1644024A01
ref: 9

VALVE ASSY,OIL RELIEF

€ 52.00

10

0916816002
ref: 10

GASKET(16X22X2) (NAS)

€ 2.00

11

1651006B01
ref: 11
16510-07J00

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

12

1652038B10
ref: 12

STRAINER,ENGINE OIL

€ 21.00

13

0110705108
ref: 13
01500-0510B

BOLT 5X10

€ 1.50

14

0832221057
ref: 14
08322-01057

WASHER

€ 2.50

14A

0155005103
ref: 14A
01550-0510A

BOLT

€ 2.50

15

1652538B10
ref: 15

HOLDER,OIL STR

€ 24.00

16-1

0151706257
ref: 16-1
01550-06257

BOLT 6X25

€ 2.50

16-2

0155006253
ref: 16-2
01550-0625A

BOLT

€ 2.50

17

0928022008
ref: 17

O RING(D:3.1,ID:22.7)

€ 2.50

18

1510038A00
ref: 18

PUMP ASSY,FUEL

€ 238.50

19

1511038B01
ref: 19

BRACKET,FUEL PUMP

€ 9.00

20-1

0916006102
ref: 20-1
09160-06088

WASHER (6.5X20X1.6)

€ 2.00

20-2

0916006088
ref: 20-2

WASHER(6.5X20X1.6)

€ 2.00

21-1

0918006143
ref: 21-1
09180-06286

SPACER

€ 2.50

21-2

0918006167
ref: 21-2
09180-06286

SPACER (6,8X10X9.4)

€ 2.50

22

0932010015
ref: 22

CUSHION

€ 2.50

23-1

0110706255
ref: 23-1
01500-0625A

BOLT

€ 2.50

23-2

0150006257
ref: 23-2

BOLT

€ 2.00

24-1

0211204165
ref: 24-1
02112-0416A

SCREW

€ 1.00

24-2

0214204167
ref: 24-2

SCREW

€ 2.00

25

0832221045
ref: 25
08322-0104A

WASHER

€ 5.00
