prices are in EUR

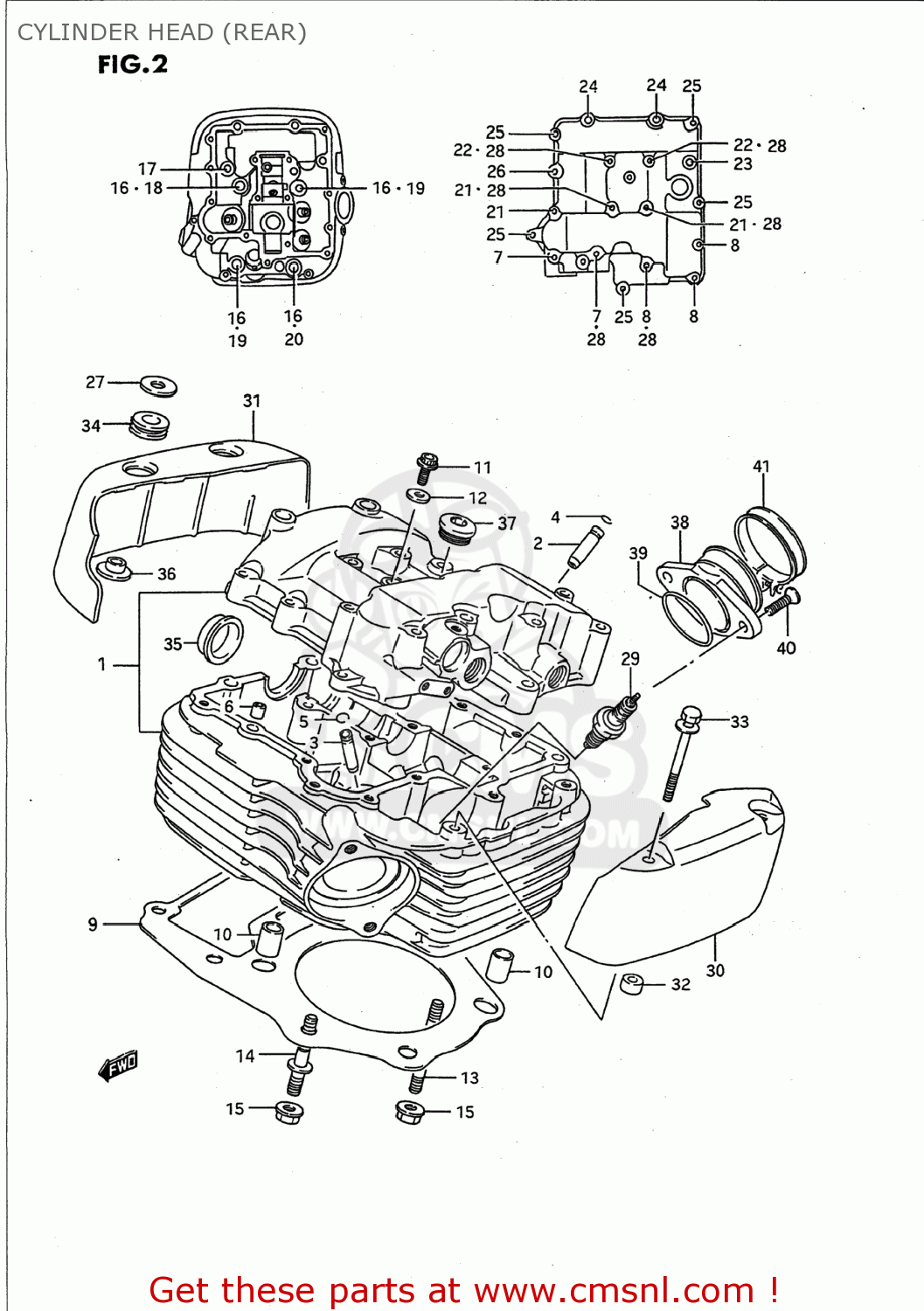

ref
part #
description
quantity
1-1
HEAD ASSEMBLY,CYLINDER,REAR
1-2
HEAD ASSEMBLY,CYLINDER,REAR
2
GUIDE,INTAKE VALVE
3
GUIDE,INTAKE VALVE
4
RING,SNAP
5
RING,SNAP
6
PIN(6.2X8X11)
7-2
BOLT(6X60)
8
BOLT(6X55)
9
GASKET,CYLINDER HEAD RR (NAS)
10-1
PIN
10-2
PIN
11
BOLT
12
GASKET(6.2X13X1.2) (NAS)
13
BOLT,STUD
14
BOLT,STUD
15
NUT
16
WASHER(10.5X22X2.3)
17
BOLT(8X57)
18
BOLT(10X180)
19
BOLT(10X190)
20
BOLT(10X215)
21
BOLT(6X50)
22
BOLT(6X45)
24
BOLT(8X268)
25
BOLT
26
BOLT
28
GASKET(5.8X13X1.2) (NAS)
29-10
SPARK PLUG X22EPR-U9
29-11
PLUG,SPARK(DPR9EA-9)
29-12
SPARK PLUG X27EPR-U9
29-5
SPARK PLUG DP9EA-9
29-7
PLUG,SPARK(DPR8EA-9)
29-8
SPARK PLUG X24EPR-U9
29-9
PLUG,SPARK(DPR7EA-9)
30
CAP,CYLINDER HEAD COVER RL
31
CAP,CYLINDER HEAD COVER RR
32
CUSHION,R CAP
34
CUSHION
35
PLUG(OD:30)
36
BUSH
37-1
PLUG(22X11)
37-2
PLUG,22X11
38
PIPE ASSEMBLY,INTAKE,REAR
39
O-RING (D:1.9 ID:40.7)
40-2
SCREW
41-2
CLAMP
