VS1400GLP INTRUDER 1992 (N) USA (E03)

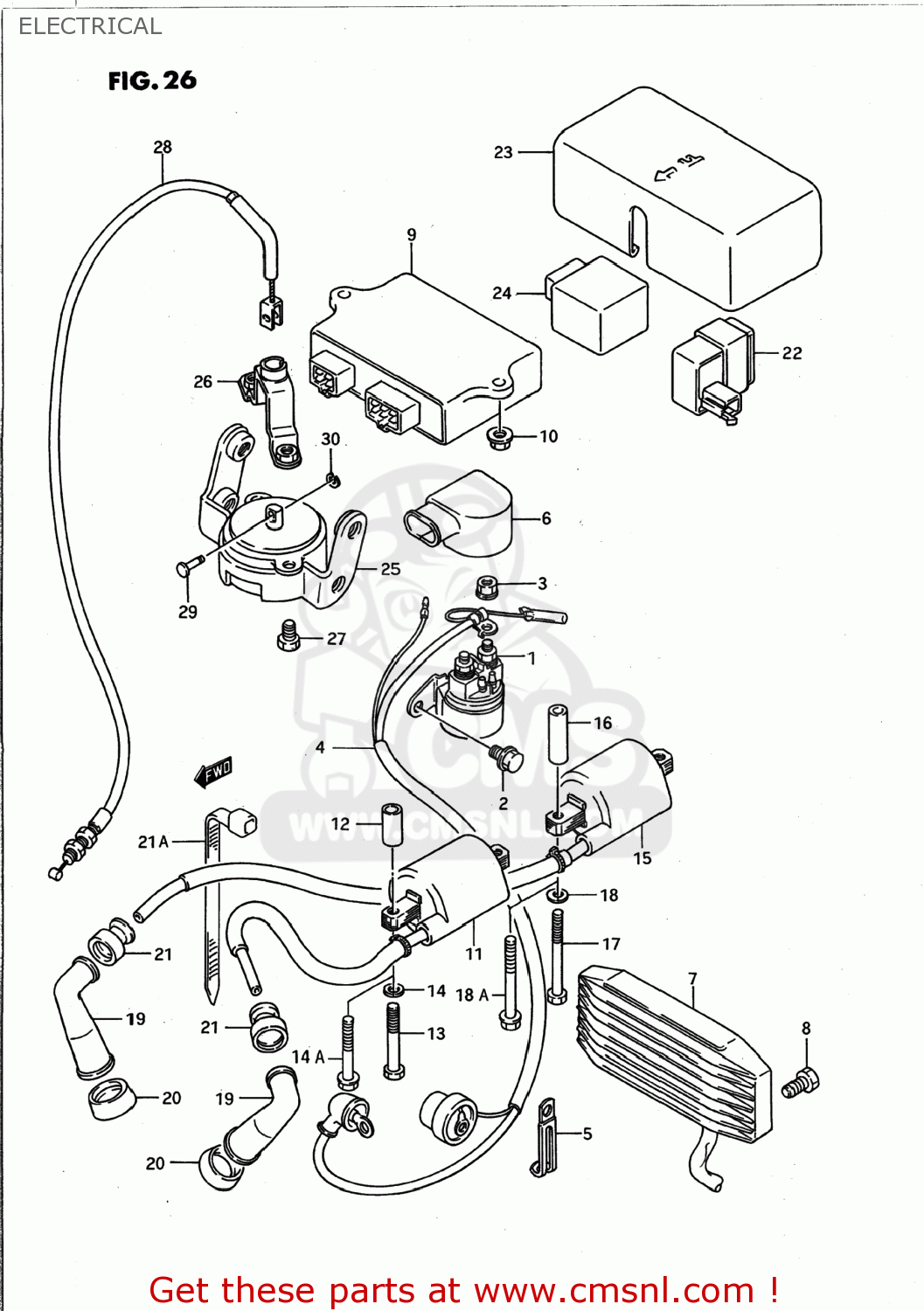

Electrical diagram VS1400GLP INTRUDER 1992 (N) USA (E03)
ELECTRICAL VS1400GLP INTRUDER 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2-1
0151706108
ref: 2-1
01550-06107
BOLT
€ 2.50
2-2
0155006103
ref: 2-2
01550-0610A
BOLT
€ 2.50
3
0836135066
ref: 3
08361-3506A
NUT
€ 2.00
4
3385038B00
ref: 4
WIRE,STARTER MOTOR LEAD
€ 57.50
5
0940406401
ref: 5
09404-06432
CLAMP L:35
€ 2.50
6-1
3362438B00
ref: 6-1
33624-49401
CAP,BATTERY PLUS TERMINAL
€ 5.00
6-2
3362449420
ref: 6-2
33624-49401
CAP,STARTER RELAY TERMINAL
€ 5.00
7
3280038B00
ref: 7
RECTIFIER ASSY
€ 308.50
8-1
0110706104
ref: 8-1
01500-0610B
BOLT
€ 2.00
8-2
0150006103
ref: 8-2
01500-0610B
BOLT
€ 2.00
9-1
3290038B00
ref: 9-1
IGNITOR UNIT
€ 1,133.50
9-2
3290038B10
ref: 9-2
IGNITER UNIT
€ 1,090.50
9-3
3290038B30
ref: 9-3
IGNITOR UNIT
€ 807.00
10-1
0831616066
ref: 10-1
08316-1006B
NUT
€ 2.50
10-2
0831610063
ref: 10-2
08316-1006B
NUT
€ 2.50
11
3341038B00
ref: 11
COIL ASSY,IGNITION RR
€ 151.00
12
0918006178
ref: 12
SPACER(6.4X10X22)
€ 4.00
13
0110405456
ref: 13
01550-05457
BOLT
€ 2.00
14
0832121056
ref: 14
08321-0105A
LOCK WASHER
€ 3.00
14A
0157005453
ref: 14A
01570-0545B
BOLT
€ 2.50
15
3342038B00
ref: 15
COIL ASSY,IGNITION
€ 151.00
16
0918006179
ref: 16
SPACER(6.4X10X32)
€ 5.00
17
0110405556
ref: 17
BOLT
€ 2.00
18
0832121056
ref: 18
08321-0105A
LOCK WASHER
€ 3.00
18A
0157005553
ref: 18A
BOLT
€ 2.50
19
3351038B00
ref: 19
CAP,SPARK PLUG
€ 21.50
20
3354124510
ref: 20
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
21
3354238B00
ref: 21
SEAL,HIGH TENSION CORD
€ 4.50
21A
0940714403
ref: 21A
CLAMP(L:125)
€ 2.50
22
3395038B00
ref: 22
RELAY ASSY,FUEL CUT
€ 89.00
23
3395138B00
ref: 23
COVER,RELAY
€ 19.50
24
3291024B00
ref: 24
CONTROL UNIT,DECOMP
€ 92.50
25
3397038B00
ref: 25
SOLENOID ASSY,DECOMP
€ 290.00
26
3397138B00
ref: 26
BRACKET,DECOMP SOLENOID
€ 13.50
27-1
0110706125
ref: 27-1
01500-0612A
BOLT
€ 2.00
27-2
0155006123
ref: 27-2
01550-0612A
BOLT
€ 2.50
28
5890038B01
ref: 28
58900-38B20
CABLE ASSEMBLY,DECOMPRESSION
€ 53.00
29
0920904020
ref: 29
PIN(4X12.5)
€ 5.50
30
0833211036
ref: 30
08332-11033
E RING
€ 1.50
