PILLION RIDER HANDLE

VS1400GLP INTRUDER 1992 (N) USA (E03)

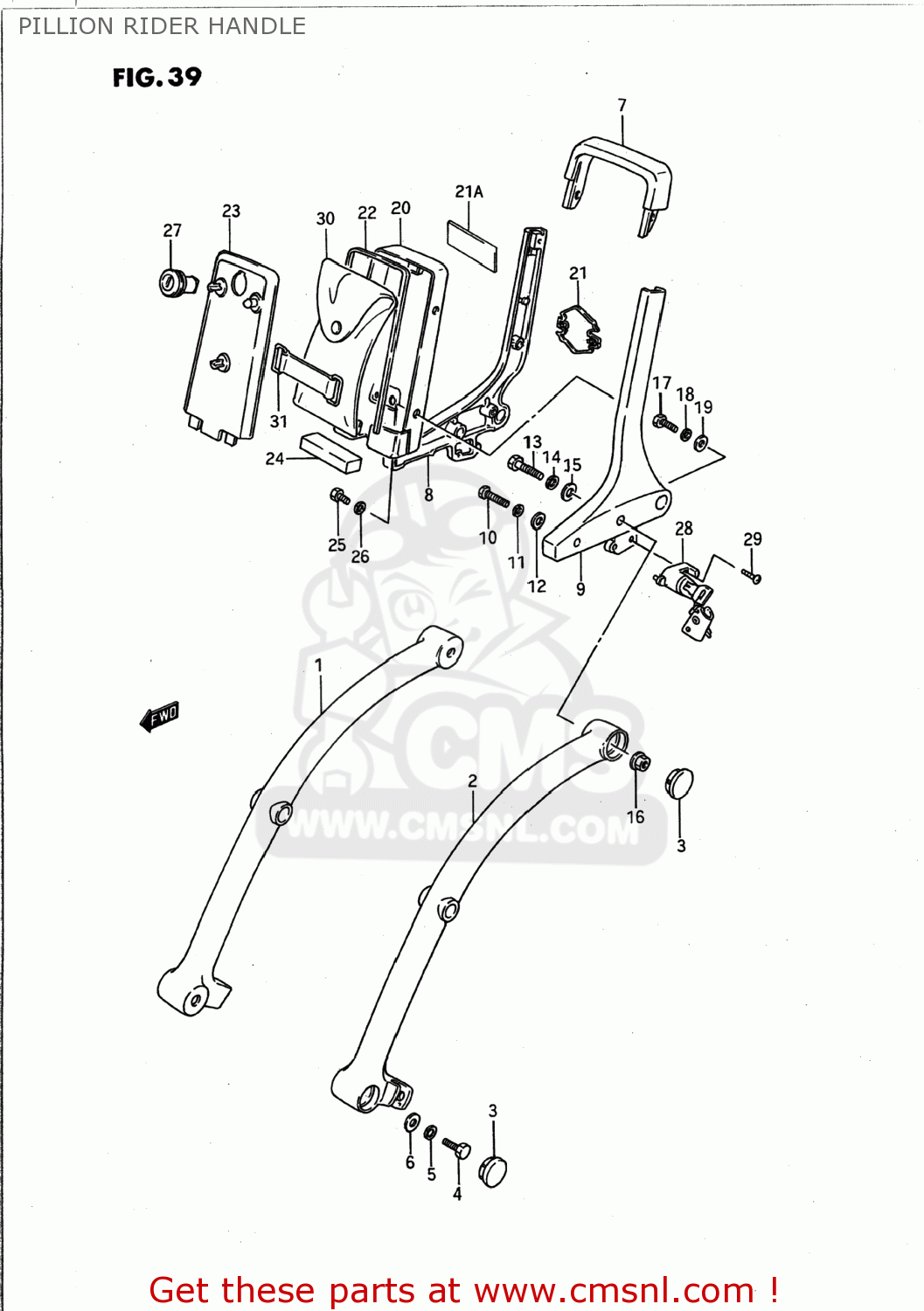

Pillion rider handle diagram VS1400GLP INTRUDER 1992 (N) USA (E03)

PILLION RIDER HANDLE VS1400GLP INTRUDER 1992 (N) USA (E03)
PILLION RIDER HANDLE VS1400GLP INTRUDER 1992 (N) USA (E03)
PILLION RIDER HANDLE VS1400GLP INTRUDER 1992 (N) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4161038B00
ref: 1
41610-38B10
GRIP COMP,FRAME HANDLE
4161038B00
€ 292.50
2
4162038B00
ref: 2
41620-38B10
GRIP COMP,FRAME HANDLE
4162038B00
€ 296.00
3
9567324A00
ref: 3
CAP,PIPE CO-RIDER GRIP
9567324A00
€ 5.00
4-1
0150008207
ref: 4-1
BOLT
0150008207
€ 3.00
4-2
0158008203
ref: 4-2
01580-0820A
BOLT
0158008203
€ 3.50
5
0832101087
ref: 5
WASHER,LOCK
0832101087
€ 2.00
6
0832201087
ref: 6
WASHER
0832201087
€ 2.00
7-1
4621138B00
ref: 7-1
46211-38B01
HANDLE,PILLION RIDER
4621138B00
€ 69.00
7-2
4621138B01
ref: 7-2
HANDLE,PILLION RIDER UPR
4621138B01
€ 69.00
8-1
4621238B00
ref: 8-1
46212-38B11
HANDLE,PILLION RIDER
€ 158.50
8-2
4621238B10
ref: 8-2
46212-38B11
HANDLE,PILLION RIDER,RIGHT
€ 158.50
9-1
4621338B00
ref: 9-1
46213-38B11
HANDLE,PILLION RIDER
€ 158.00
9-2
4621338B10
ref: 9-2
46213-38B11
HANDLE,PILLION RIDER,LEFT
€ 158.00
10-1
0110706406
ref: 10-1
01500-0640B
BOLT
€ 2.00
10-2
0117706406
ref: 10-2
01580-0640B
BOLT
€ 2.00
10-3
0158006403
ref: 10-3
01580-0640B
BOLT, FRONT
€ 2.00
11
0832101063
ref: 11
08321-0106A
LOCK WASHER
0832101063
€ 2.00
12
0832201063
ref: 12
08322-0106B
WASHER
0832201063
€ 2.00
13-1
0110708458
ref: 13-1
01500-08453
BOLT 8X45
€ 2.50
13-2
0158008453
ref: 13-2
01580-0845B
BOLT
0158008453
€ 4.00
14
0832101083
ref: 14
08321-0108A
LOCK WASHER
0832101083
€ 2.50
15
0832201083
ref: 15
08322-0108A
WASHER
0832201083
€ 1.50
16-1
0831616086
ref: 16-1
08316-10087
NUT, WHEEL SET
€ 3.00
16-2
0831610083
ref: 16-2
08316-1008B
NUT
0831610083
€ 3.00
17-1
0150006203
ref: 17-1
01500-0620A
BOLT
0150006203
€ 2.00
17-2
0117706206
ref: 17-2
01580-0620B
BOLT,FRONT
€ 2.50
17-3
0158006203
ref: 17-3
01580-0620B
BOLT, REAR
€ 2.50
18
0832101063
ref: 18
08321-0106A
LOCK WASHER
0832101063
€ 2.00
19
0832201063
ref: 19
08322-0106B
WASHER
0832201063
€ 2.00
20
4743038B0122S
ref: 20
47430-38B11-22S
HOLDER,TOOL
4743038B0122S
€ 60.50
21A
6826238A00
ref: 21A
TAPE,TOOL BAG PROTECTOR
6826238A00
€ 3.50
21-1
6826138B00
ref: 21-1
EMBLEM,TOOL HOLDER,REAR
6826138B00
€ 31.50
21-2
6826138A20
ref: 21-2
68261-38A30
EMBLEM
6826138A20
€ 31.00
22
4743738B00
ref: 22
MOLDING,TOOL HOLDER RR
4743738B00
€ 5.00
23
4744138B00
ref: 23
HOLDER,TOOL FR
4744138B00
€ 15.00
24
4743838B00
ref: 24
CUSHION,TOOL BACK
4743838B00
€ 19.50
25-1
0150006127
ref: 25-1
BOLT
0150006127
€ 2.00
25-2
0155006163
ref: 25-2
01550-0616A
BOLT
0155006163
€ 2.50
25-3
0157006123
ref: 25-3
01570-0612A
BOLT
0157006123
€ 1.50
26
0832101067
ref: 26
WASHER,LOCK
0832101067
€ 2.50
27
9570024831
ref: 27
LOCK SET,TOOL HOLDER
9570024831
€ 79.50
28-1
9570038831
ref: 28-1
95700-38821
LOCK SET,HELMET
€ 54.00
28-2
9570038821
ref: 28-2
LOCK SET,HELMET
9570038821
€ 54.00
29
0211205127
ref: 29
SCREW
0211205127
€ 2.50
30-1
0980021018
ref: 30-1
TOOL ASSY
€ 107.00
30-2
0980021014
ref: 30-2
TOOL ASSY
0980021014
€ 92.50
31
0946200008
ref: 31
BAND
0946200008
€ 4.50
32
4630038821
ref: 32
46300-38822
CARRIER ASSEMBLY,REAR
€ 240.50
