CLUTCH CYLINDER

VS1400GLP INTRUDER 2001 (K1) USA (E03)

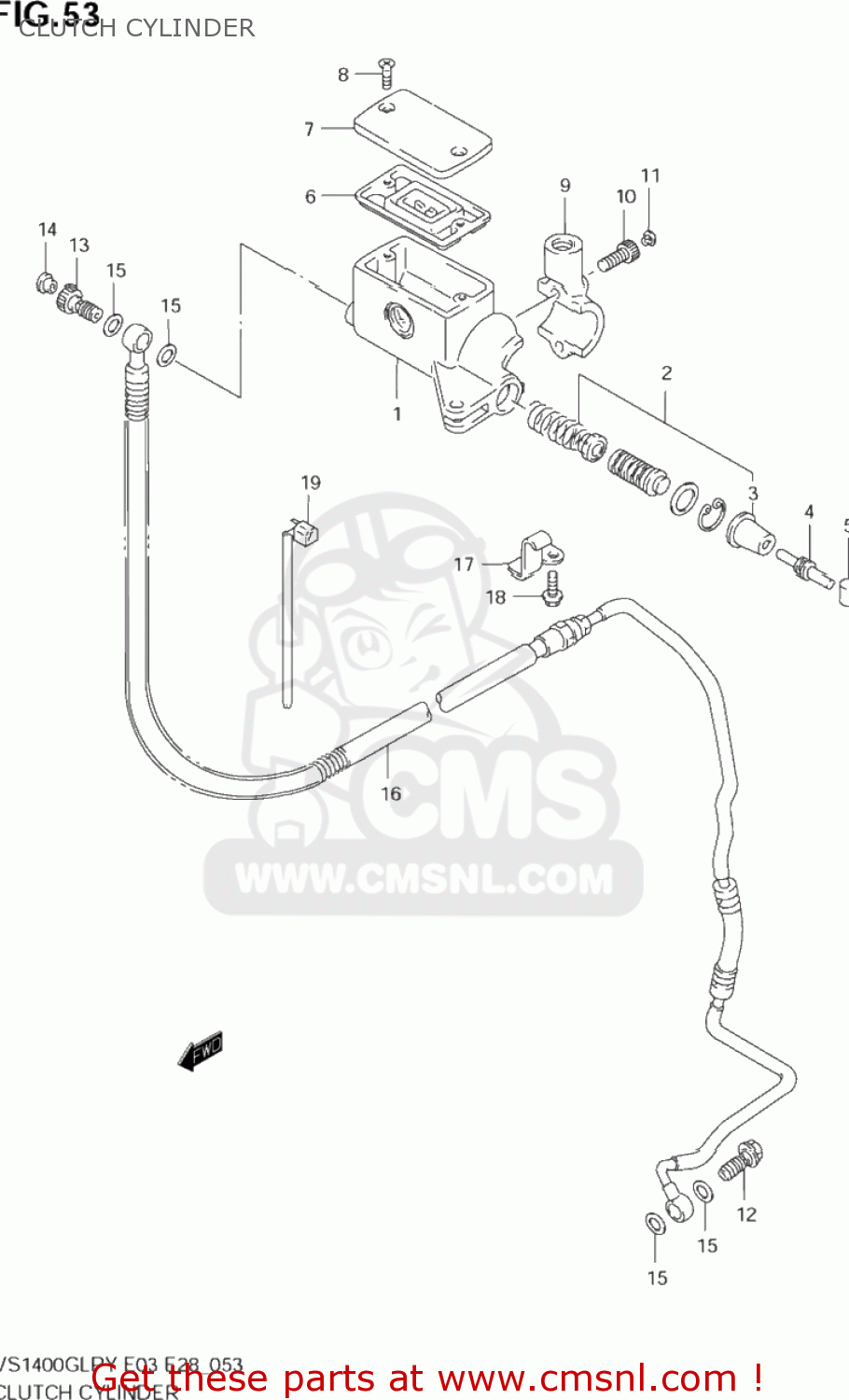

Clutch cylinder diagram VS1400GLP INTRUDER 2001 (K1) USA (E03)

CLUTCH CYLINDER VS1400GLP INTRUDER 2001 (K1) USA (E03)

CLUTCH CYLINDER VS1400GLP INTRUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5980038B30
ref: 1

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 428.00

1

5980038B30
ref: 1

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 428.00

2

5980008810
ref: 2

PISTON & CUP SET

€ 36.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5987138A00
ref: 4

PUSH ROD

€ 6.50

5

5989208A00
ref: 5

BUSH

€ 5.50

6

5966749460
ref: 6

5966749460

7

5966938B10
ref: 7

CAP

€ 67.50

8

0212204127
ref: 8

SCREW

€ 2.00

9

5967138A00
ref: 9

HOLDER

€ 37.50

10

0713006207
ref: 10

BOLT

€ 3.50

11

0925005008
ref: 11

CAP(OD:10)

€ 5.00

12

0936010039
ref: 12
09360-10061

BOLT UNION

€ 6.50

13

0936010027
ref: 13

BOLT UNION

€ 9.00

14

0925008014
ref: 14

CAP(OD:12)

€ 3.50

15

0916110009
ref: 15

WASHER(10X15X1.5)

€ 2.00

16

5990038B30
ref: 16

HOSE ASSY,CLUTCH

€ 388.50

16

5990038B30
ref: 16

HOSE ASSY,CLUTCH

€ 388.50

17

5954238B00
ref: 17

CLAMP,CLUTCH HOSE

€ 5.50

18

0155006103
ref: 18
01550-0610A

BOLT

€ 2.50

19

0940718402
ref: 19

CLAMP(L:165)

€ 2.50
