Buy Suzuki VS Parts Online


FRONT MASTER CYLINDER

VS1400GLP INTRUDER 2001 (K1) USA (E03)

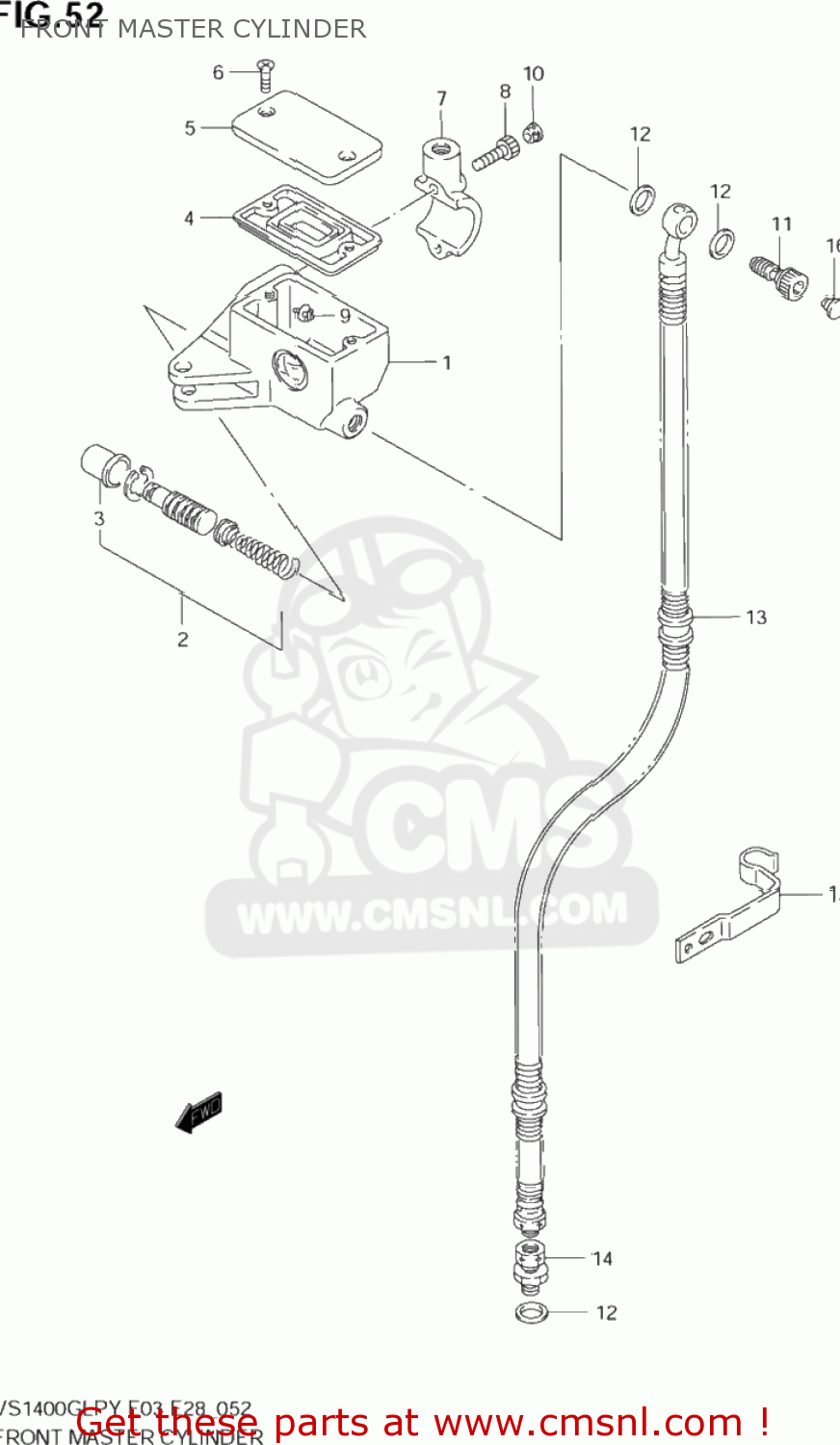

Front master cylinder diagram VS1400GLP INTRUDER 2001 (K1) USA (E03)

FRONT MASTER CYLINDER VS1400GLP INTRUDER 2001 (K1) USA (E03)
FRONT MASTER CYLINDER VS1400GLP INTRUDER 2001 (K1) USA (E03)
FRONT MASTER CYLINDER VS1400GLP INTRUDER 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5960038B30
ref: 1
CYLINDER ASSY,FR MASTER
5960038B30
€ 280.50
1
5960038B30
ref: 1
CYLINDER ASSY,FR MASTER
5960038B30
€ 280.50
2
5960004810
ref: 2
PISTON/CUP SET
5960004810
€ 37.50
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
5966749460
ref: 4
5966749460
5
5966938B10
ref: 5
CAP
5966938B10
€ 67.50
6
0212204127
ref: 6
SCREW
0212204127
€ 2.00
7
5967138A00
ref: 7
HOLDER
5967138A00
€ 37.50
8
0713006207
ref: 8
BOLT
0713006207
€ 3.50
9
5966448B00
ref: 9
PROTECTOR
5966448B00
€ 8.00
10
0925005008
ref: 10
CAP(OD:10)
0925005008
€ 5.00
11
0936010027
ref: 11
BOLT UNION
0936010027
€ 9.00
12
0916110009
ref: 12
WASHER(10X15X1.5)
0916110009
€ 2.00
13
5948038B30
ref: 13
HOSE,FR BRAKE
€ 155.50
13
5948038B30
ref: 13
HOSE,FR BRAKE
€ 155.50
14
5929043500
ref: 14
ADAPTER,BRAKE HOSE
5929043500
€ 34.50
15
5926838B01
ref: 15
GUIDE,BRAKE HOSE
5926838B01
€ 8.50
16
0925008014
ref: 16
CAP(OD:12)
0925008014
€ 3.50
