WIRING HARNESS
VS1400GLP INTRUDER 2001 (K1) USA (E03)

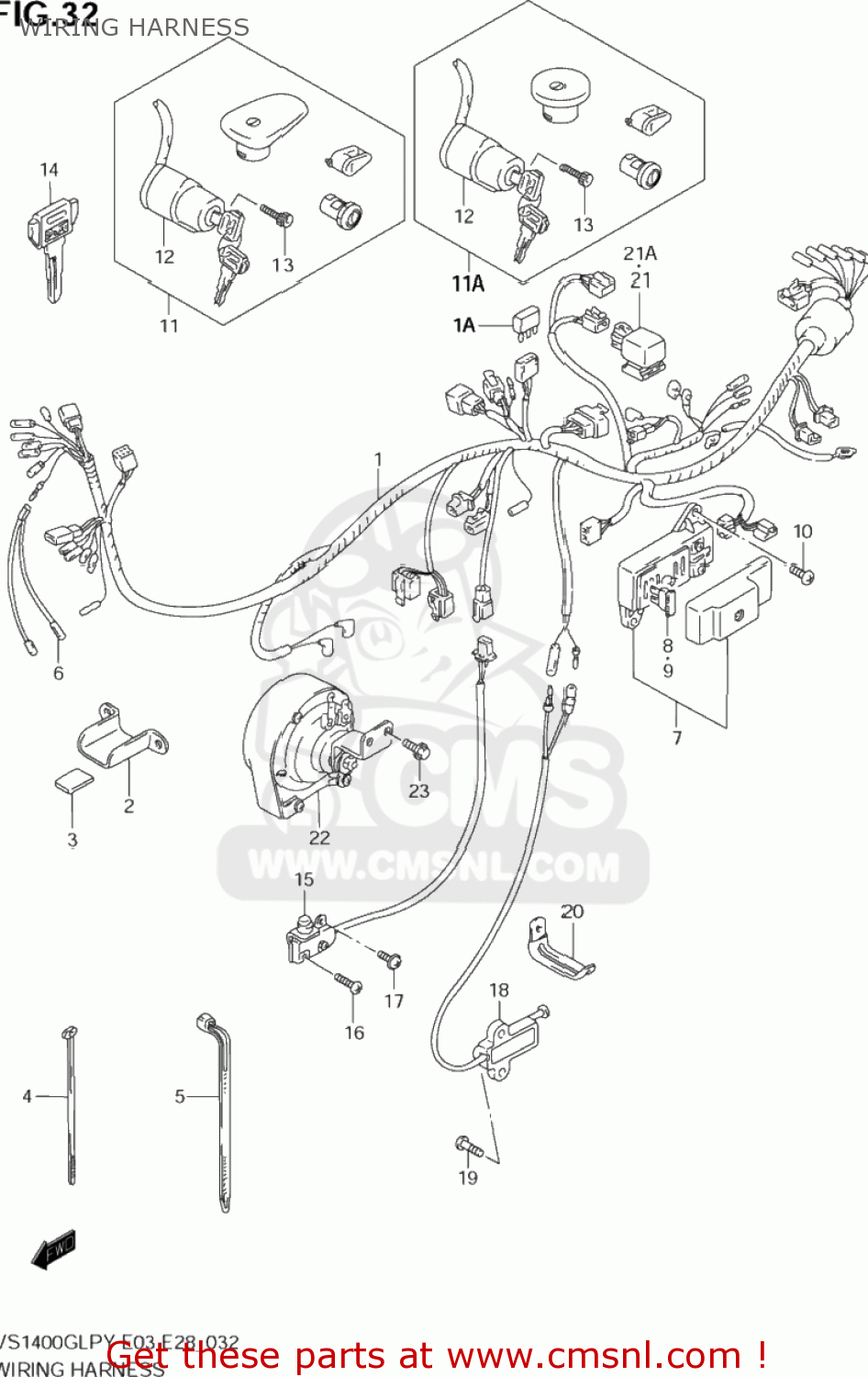

Wiring harness diagram VS1400GLP INTRUDER 2001 (K1) USA (E03)
WIRING HARNESS VS1400GLP INTRUDER 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661038BC0
ref: 1
HARNESS,WIRING
€ 369.00
1A
3661138A00
ref: 1A
DIODE(STANLEY DE8804)
€ 13.00
2
3661938B00
ref: 2
GUIDE,WIRING HARNESS
€ 6.50
3
3692038B00
ref: 3
CUSHION
€ 4.50
4
0940709402
ref: 4
CLAMP
€ 3.00
5-1
0940714403
ref: 5-1
CLAMP(L:125)
€ 2.50
5-2
0940714407
ref: 5-2
CLAMP(L:145)
€ 4.00
5-3
0940718402
ref: 5-3
CLAMP(L:165)
€ 2.50
6
3685238B10
ref: 6
WIRE,CLUTCH SW CONNECTOR
€ 5.50
7
3674019C00
ref: 7
BOX ASSY,FUSE
€ 88.00
8
0948125101
ref: 8
09481-25103
FUSE (25A)
€ 2.50
9
0948110101
ref: 9
FUSE(10A)
€ 2.50
10
0214206163
ref: 10
02142-0616A
SCREW
€ 2.50
11
3700038810
ref: 11
LOCK SET
€ 300.50
11A
3700038820
ref: 11A
LOCK SET
€ 0.00
12-1
3711038B02
ref: 12-1
37110-38B03
SWITCH ASSEMBLY,IGNITION
€ 71.50
12-2
3711038B03
ref: 12-2
SWITCH ASSY,IGNITION
€ 71.50
13
0713005163
ref: 13
07130-0516A
BOLT
€ 2.00
14-1
3714603A00
ref: 14-1
KEY,BLANK(TYPE:C)
€ 6.00
14-2
3714603A10
ref: 14-2
KEY,BLANK(TYPE:D)
€ 6.00
14-3
3714603A20
ref: 14-3
KEY,BLANK(TYPE:E)
€ 6.00
14-4
3714603A30
ref: 14-4
KEY,BLANK(TYPE:F)
€ 6.00
15
3774038B00
ref: 15
SWITCH ASSY,STOP LAMP
€ 79.00
16
0211204163
ref: 16
02112-0416A
SCREW 4X16
€ 1.00
17
0214204063
ref: 17
02142-0406A
SCREW
€ 1.50
18
3784039A22
ref: 18
SWITCH ASSY,SIDE STAND
€ 87.50
19
0211276203
ref: 19
02112-7620B
SCREW
€ 2.50
20
0940406206
ref: 20
09404-06432
CLAMP(L:45)
€ 2.50
21
3874024X50
ref: 21
RELAY ASSY
€ 37.50
21A
3874038B00
ref: 21A
RELAY ASSY
€ 37.50
22
3850038B01
ref: 22
HORN ASSY
€ 112.50
23
0155006123
ref: 23
01550-0612A
BOLT
€ 2.50
