Buy Suzuki VS Parts Online


REAR MASTER CYLINDER

VS1400GLP INTRUDER 2001 (K1) USA (E03)

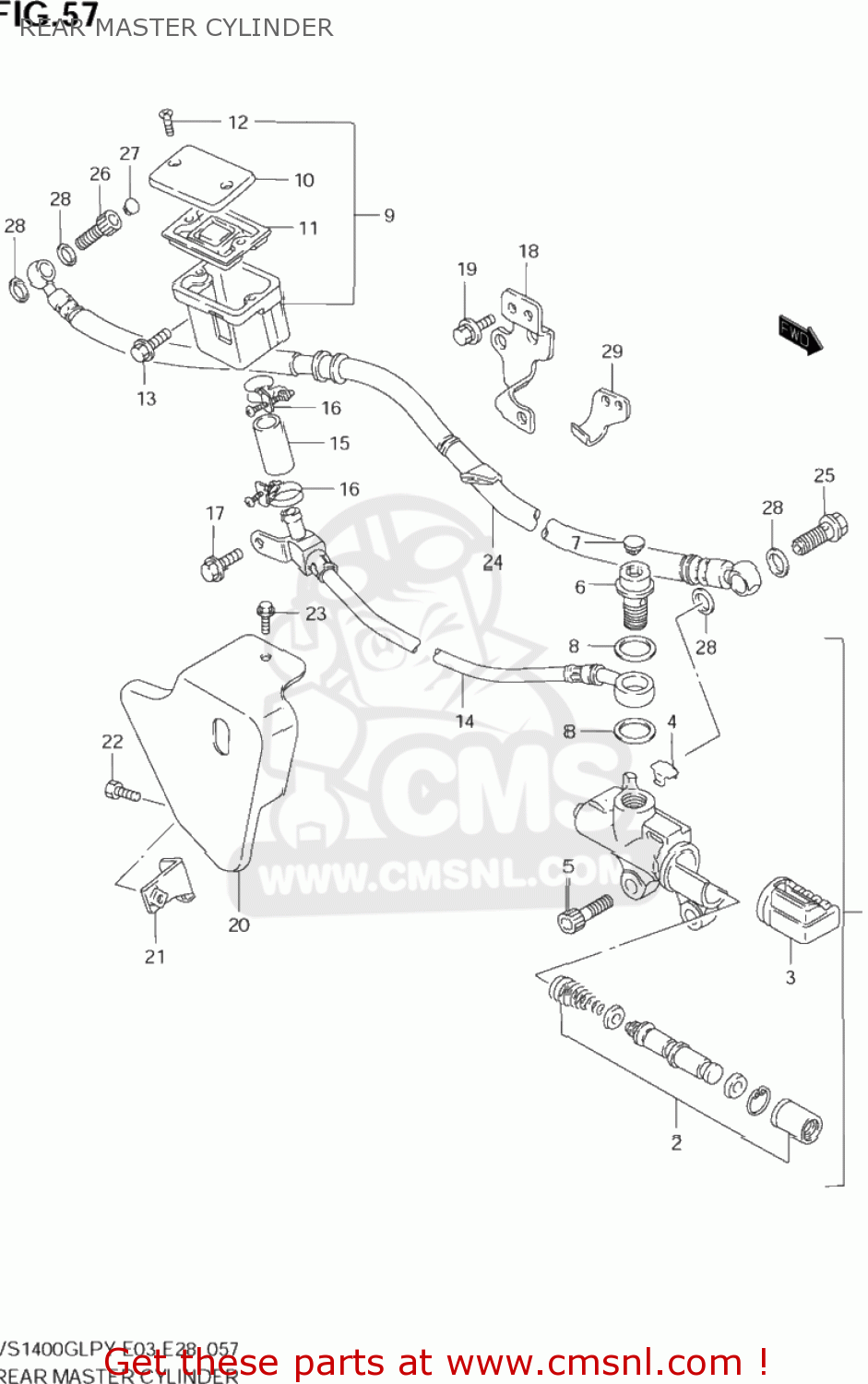

Rear master cylinder diagram VS1400GLP INTRUDER 2001 (K1) USA (E03)

REAR MASTER CYLINDER VS1400GLP INTRUDER 2001 (K1) USA (E03)
REAR MASTER CYLINDER VS1400GLP INTRUDER 2001 (K1) USA (E03)
REAR MASTER CYLINDER VS1400GLP INTRUDER 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6960038B01
ref: 1
CYLINDER ASSY,RR MASTER
6960038B01
€ 172.00
2
6960038810
ref: 2
PISTON/CUP SET
6960038810
€ 42.50
3
6969138B00
ref: 3
BOOT
6969138B00
€ 11.00
4
6969638B00
ref: 4
PLATE,STOP
€ 7.50
5
0910608081
ref: 5
BOLT(8X30)
€ 3.00
6-1
6966138B00
ref: 6-1
09360-14013
BOLT,BRAKE FLUID
6966138B00
€ 24.50
6-2
0936014013
ref: 6-2
BOLT UNION
0936014013
€ 24.50
7
0925008014
ref: 7
CAP(OD:12)
0925008014
€ 3.50
8
6966238B00
ref: 8
WASHER,BRAKE FLUID
6966238B00
€ 4.00
9
6974038B21
ref: 9
TANK ASSY,RESERVOIR
6974038B21
€ 85.50
10
5966905D00
ref: 10
CAP
5966905D00
€ 13.50
11
5966704700
ref: 11
DIAPHRAGM
5966704700
€ 8.00
12
6968904A00
ref: 12
SCREW
6968904A00
€ 2.00
13
0155006163
ref: 13
01550-0616A
BOLT
0155006163
€ 2.50
14
6973038B00
ref: 14
HOSE,RESERVOIR TANK
6973038B00
€ 248.50
15
6973138B00
ref: 15
HOSE,RESERVOIR TANK
6973138B00
€ 7.00
16-1
0940016302
ref: 16-1
09400-16304
CLAMP
0940016302
€ 4.50
16-2
0940113417
ref: 16-2
CLIP
0940113417
€ 2.50
17
0155006163
ref: 17
01550-0616A
BOLT
0155006163
€ 2.50
18
6975038B00
ref: 18
BRACKET,RESERVOIR TANK
€ 7.50
19-1
0158008163
ref: 19-1
01580-0816A
BOLT
0158008163
€ 3.00
19-2
0155008163
ref: 19-2
01550-0816A
BOLT
0155008163
€ 3.00
20
6979538B10
ref: 20
COVER,RESERVOIR TANK
6979538B10
€ 74.00
21
6979038B00
ref: 21
BRACKET COMP,RESERVOIR TANK
€ 4.50
21
6979038B00
ref: 21
BRACKET COMP,RESERVOIR TANK
€ 4.50
22
0912806044
ref: 22
SCREW(6X10)
0912806044
€ 1.50
23
0154706107
ref: 23
BOLT
0154706107
€ 1.50
24
6948038B01
ref: 24
69480-38B02
HOSE,REAR BRAKE
6948038B01
€ 99.00
25
0936010039
ref: 25
09360-10061
BOLT UNION
€ 6.50
26
0936010028
ref: 26
BOLT UNION
0936010028
€ 5.50
27
0925008012
ref: 27
CAP(OD:12)
0925008012
€ 2.00
28
0916110009
ref: 28
WASHER(10X15X1.5)
0916110009
€ 2.00
29
6924438B00
ref: 29
CLAMP,RR BRAKE HOSE
6924438B00
€ 4.50
