HEADLAMP (MODEL K1/K2/K3)

VS1400GLP INTRUDER 2001 (K1) USA (E03)

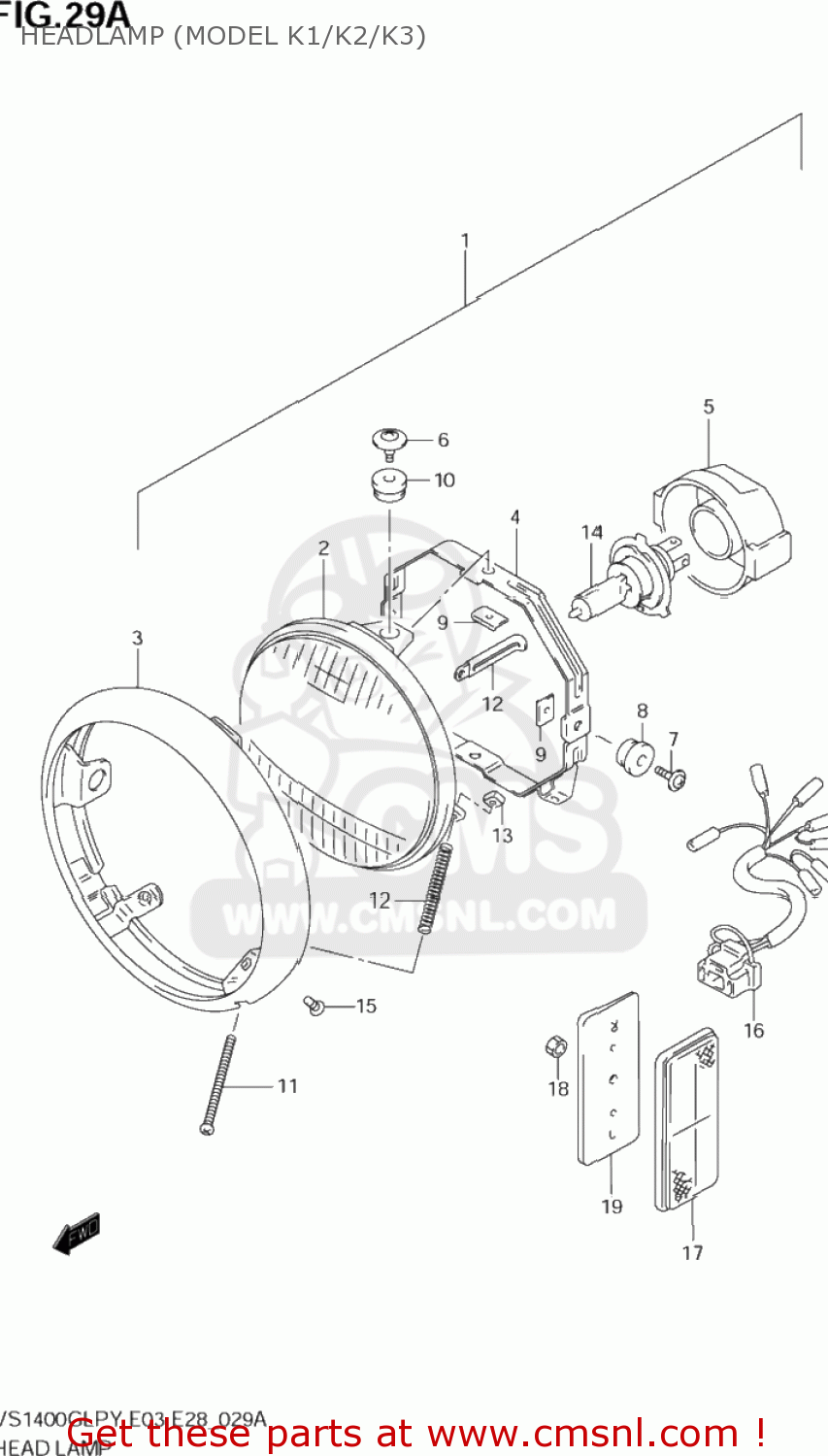

Headlamp (model k1/k2/k3) diagram VS1400GLP INTRUDER 2001 (K1) USA (E03)

HEADLAMP (MODEL K1/K2/K3) VS1400GLP INTRUDER 2001 (K1) USA (E03)
HEADLAMP (MODEL K1/K2/K3) VS1400GLP INTRUDER 2001 (K1) USA (E03)
HEADLAMP (MODEL K1/K2/K3) VS1400GLP INTRUDER 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3510038B60999
ref: 1
HEADLAMP ASSY
€ 0.00
2
3512138A60
ref: 2
UNIT,LAMP
€ 114.00
3
3511138A60
ref: 3
RIM
€ 24.00
4
3513038A00
ref: 4
RING,MOUNTING
3513038A00
€ 15.00
5
3517313E10
ref: 5
COVER
€ 12.50
6
3513638A60
ref: 6
SCREW
€ 3.50
7
3513638A00
ref: 7
SCREW,MOUNTING
3513638A00
€ 2.50
8
3513945230
ref: 8
CUSHION
3513945230
€ 1.50
9
3515538A60
ref: 9
NUT
€ 3.50
10
3513938A60
ref: 10
CUSHION
€ 2.50
11
3515138A00
ref: 11
SCREW,ADJUSTING(4X50)
3515138A00
€ 2.50
12
3515431300
ref: 12
SPRING
3515431300
€ 2.00
13
3515245600
ref: 13
NUT,HEADLAMP ADJUST
3515245600
€ 3.00
14
0947112185
ref: 14
09471-12060
BULB(12V60/55W,H4)
0947112185
€ 8.00
15
0912605003
ref: 15
SCREW(5X12)
0912605003
€ 2.50
16
3685338B10
ref: 16
WIRE,HEADLAMP LEAD
3685338B10
€ 20.50
17
3595043431
ref: 17
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
18
0831000053
ref: 18
08310-0005A
NUT
€ 2.50
19
3595438B00
ref: 19
SPACER,FR SIDE RR
3595438B00
€ 3.50
