FUEL TANK (MODEL V/W)

VS1400GLP INTRUDER 2001 (K1) USA (E03)

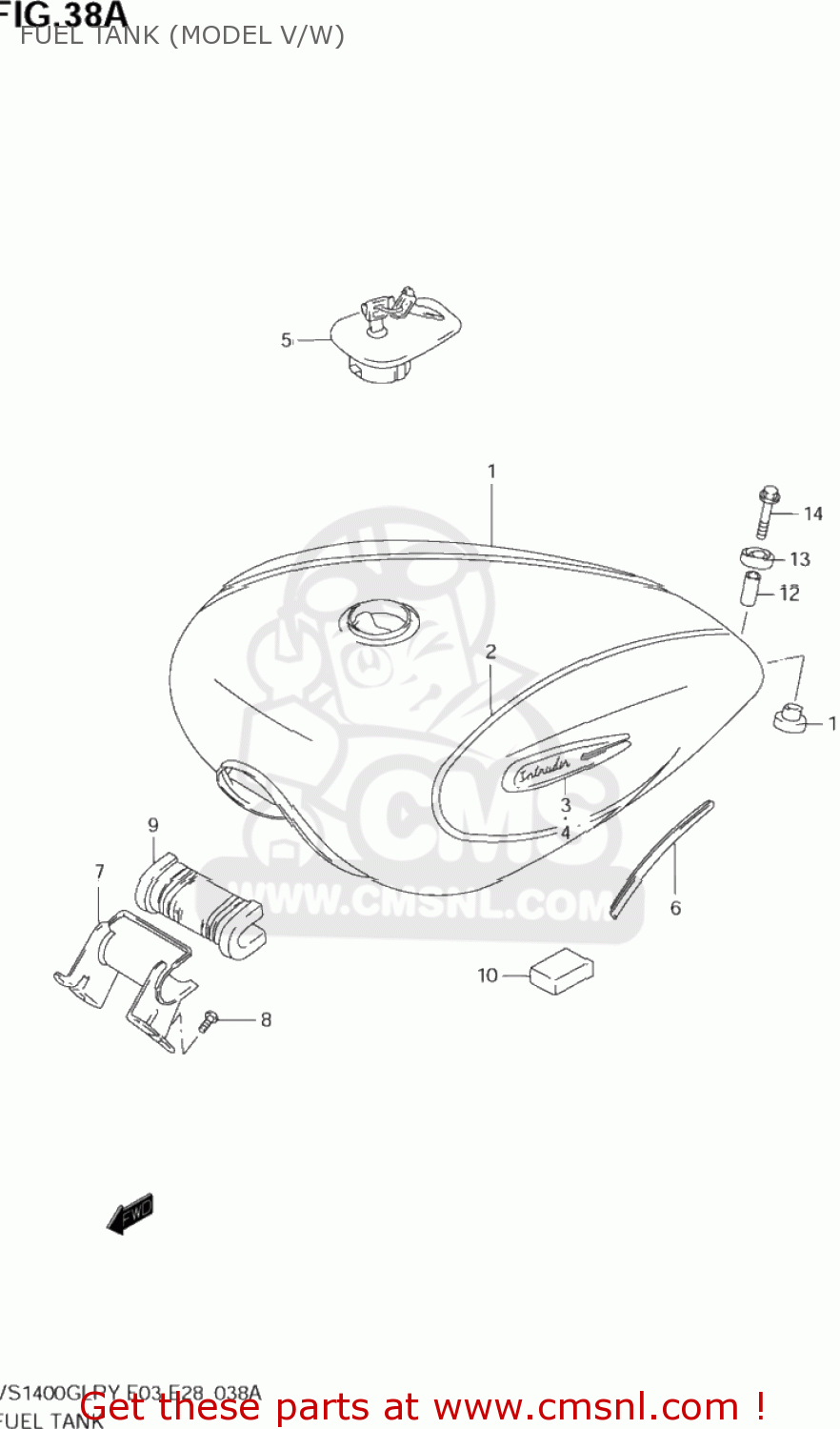

Fuel tank (model v/w) diagram VS1400GLP INTRUDER 2001 (K1) USA (E03)

FUEL TANK (MODEL V/W) VS1400GLP INTRUDER 2001 (K1) USA (E03)
FUEL TANK (MODEL V/W) VS1400GLP INTRUDER 2001 (K1) USA (E03)
FUEL TANK (MODEL V/W) VS1400GLP INTRUDER 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
.2-2
6811038B51G2F
ref: .2-2
TAPE SET,FUEL TANK
€ 245.00
1-1
4410038BP0E6L
ref: 1-1
44100-38BR0-E6L
TANK ASSEMBLY,FUEL
€ 768.00
1-2
4410038BP0G2F
ref: 1-2
44100-38BR0-G2F
TANK ASSEMBLY,FUEL
€ 635.00
1-3
4410038BS0E6L
ref: 1-3
44110-38B13-YD8
TANK ASSEMBLY,FUEL
€ 432.50
1-4
4410038BS0G2F
ref: 1-4
44100-38BS1-G2F
TANK ASSEMBLY,FUEL
€ 387.50
1-5
4410038BP0G2E
ref: 1-5
44100-38BR0-G2E
TANK ASSEMBLY,FUEL
€ 914.50
1-6
4410038BP0G2P
ref: 1-6
44100-38BR0-G2P
TANK ASSEMBLY,FUEL
€ 797.00
1-7
4410038BS0G2E
ref: 1-7
44100-38BS1-G2E
TANK ASSEMBLY,FUEL
€ 381.00
1-8
4410038BS0G2P
ref: 1-8
44100-38BS1-G2P
TANK ASSEMBLY,FUEL
€ 387.50
2-1
6811038B51G2V
ref: 2-1
TAPE SET,FUEL TANK
€ 158.50
2-3
6811038B51G2W
ref: 2-3
TAPE SET,FUEL TANK
€ 154.50
2-4
6811038B51J5S
ref: 2-4
TAPE SET,FUEL TANK STRIPE
€ 156.50
3
6811138B00
ref: 3
EMBLEM,FUEL TANK,R
6811138B00
€ 51.50
4
6812138B00
ref: 4
EMBLEM,FUEL TANK,L
6812138B00
€ 51.50
5-1
4420038820
ref: 5-1
CAP SET,FUEL TANK
4420038820
€ 107.50
5-2
4420038860
ref: 5-2
CAP SET,FUEL TANK
4420038860
€ 135.50
5-3
4420038870
ref: 5-3
ENGRAVED GAS CAP SET,G
4420038870
€ 136.50
5-4
4420024820
ref: 5-4
CAP SET,FUEL TANK
€ 150.50
6
6824104X5000B
ref: 6
MOLDING
6824104X5000B
€ 23.00
7
4425038B0013Z
ref: 7
44250-38B00-019
BRACKET,TANK
4425038B0013Z
€ 32.00
8
0211276163
ref: 8
02112-7616A
SCREW
0211276163
€ 2.00
9
4451138B01
ref: 9
CUSHION,FUEL TANK FR
4451138B01
€ 12.00
10
4451238B00
ref: 10
56314-48B10
CUSHION
4451238B00
€ 6.00
11
0932010020
ref: 11
CUSHION
0932010020
€ 4.00
12
0918006274
ref: 12
SPACER(6.5X9X22.5)
0918006274
€ 4.50
13
0932014013
ref: 13
CUSHION
0932014013
€ 3.00
14
0155006353
ref: 14
01550-0635A
BOLT
0155006353
€ 2.50
