CRANKCASE COVER

VS1400GLP INTRUDER 2004 (K4) USA (E03)

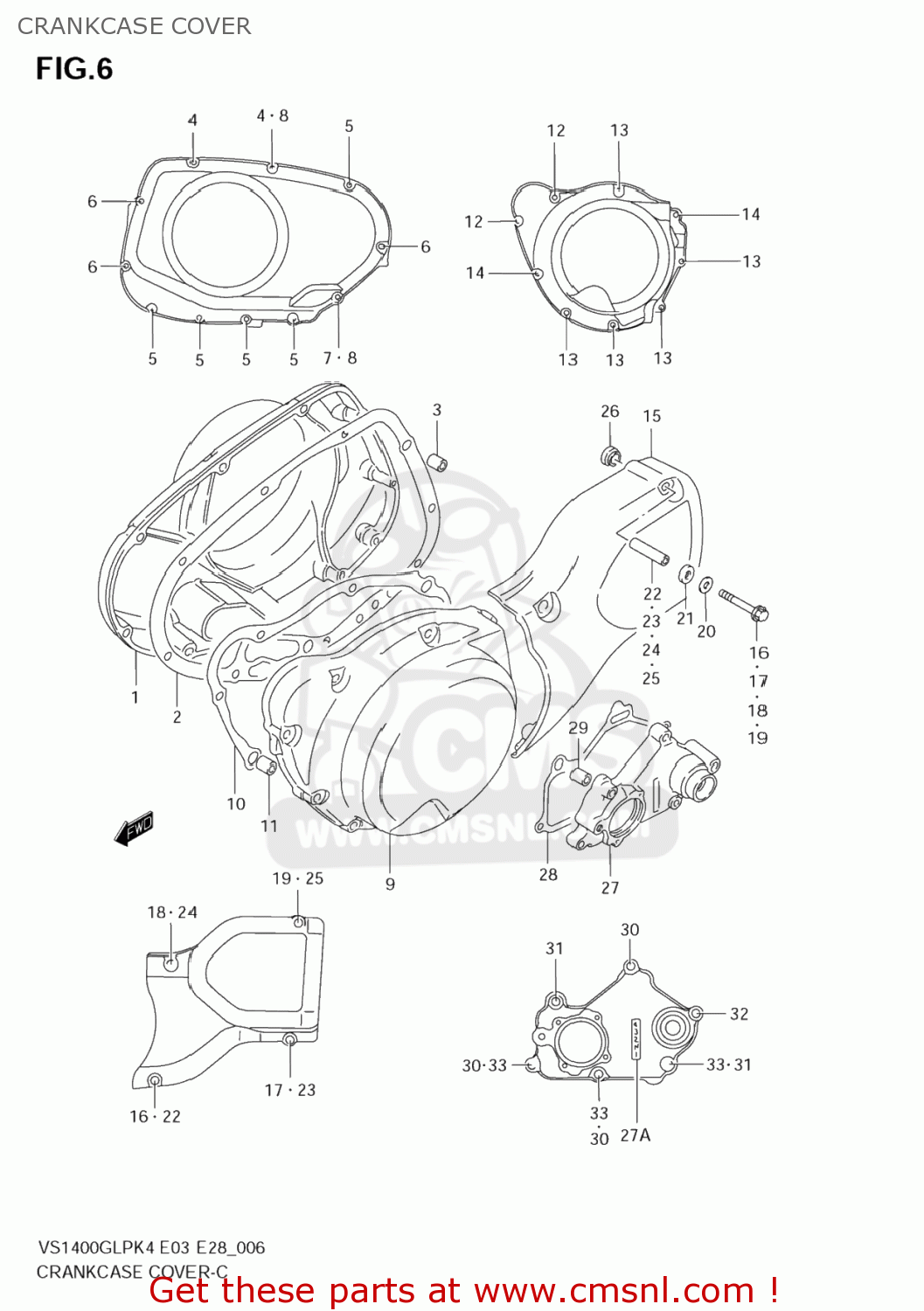

Crankcase cover diagram VS1400GLP INTRUDER 2004 (K4) USA (E03)

CRANKCASE COVER VS1400GLP INTRUDER 2004 (K4) USA (E03)
CRANKCASE COVER VS1400GLP INTRUDER 2004 (K4) USA (E03)
CRANKCASE COVER VS1400GLP INTRUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1134138B01
ref: 1
COVER,CLUTCH
1134138B01
€ 381.50
2-1
1148238B10
ref: 2-1
11482-38B20
GASKET,CLUTCH COVER (NAS)
1148238B10
€ 22.50
2-2
1148238B20
ref: 2-2
GASKET,CLUTCH COVER (NAS)
1148238B20
€ 22.50
3
0421109189
ref: 3
PIN
0421109189
€ 2.00
4-1
0154706307
ref: 4-1
BOLT
0154706307
€ 2.50
4-2
0910306213
ref: 4-2
BOLT(6X30)
0910306213
€ 2.50
5-1
0154706307
ref: 5-1
BOLT
0154706307
€ 2.50
5-2
0910306213
ref: 5-2
BOLT(6X30)
0910306213
€ 2.50
6-1
0154706407
ref: 6-1
BOLT
0154706407
€ 2.50
6-2
0910306215
ref: 6-2
BOLT(6X40)
0910306215
€ 2.00
7-1
0154706557
ref: 7-1
BOLT
0154706557
€ 2.50
7-2
0910306216
ref: 7-2
BOLT(6X55)
0910306216
€ 2.50
8
0916806023
ref: 8
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
9
1135138B00
ref: 9
COVER,GENERATOR
1135138B00
€ 330.00
10-1
1148338B00H17
ref: 10-1
11483-38B10
GASKET,GENERATOR COVER (NAS)
1148338B00H17
€ 13.50
10-2
1148338B10
ref: 10-2
GASKET,GENERATOR COVER (NAS)
1148338B10
€ 13.50
11
0920611007
ref: 11
PIN(8.4X11X20)
0920611007
€ 1.50
12-1
0154706307
ref: 12-1
BOLT
0154706307
€ 2.50
12-2
0910306213
ref: 12-2
BOLT(6X30)
0910306213
€ 2.50
13-1
0154706357
ref: 13-1
BOLT
0154706357
€ 2.50
13-2
0910306214
ref: 13-2
BOLT(6X35)
0910306214
€ 2.50
14-1
0154706457
ref: 14-1
BOLT
0154706457
€ 2.50
14-2
0910306224
ref: 14-2
BOLT(6X45)
0910306224
€ 3.00
15
1136138B00
ref: 15
COVER,SECONDARY GEAR CASE
1136138B00
€ 156.50
16-1
0154706357
ref: 16-1
BOLT
0154706357
€ 2.50
16-2
0910306214
ref: 16-2
BOLT(6X35)
0910306214
€ 2.50
17-1
0154706407
ref: 17-1
BOLT
0154706407
€ 2.50
17-2
0910306215
ref: 17-2
BOLT(6X40)
0910306215
€ 2.00
18-1
0154706607
ref: 18-1
BOLT
0154706607
€ 2.50
18-2
0910306261
ref: 18-2
BOLT(6X60)
0910306261
€ 2.50
19-1
0154706607
ref: 19-1
BOLT
0154706607
€ 2.50
19-2
0910306261
ref: 19-2
BOLT(6X60)
0910306261
€ 2.50
20
0916006125
ref: 20
WASHER(6.5X14X1.6)
0916006125
€ 2.00
21
0916109005
ref: 21
WASHER(8.7X16X5)
0916109005
€ 2.50
22
0918006301
ref: 22
SPACER(6.5X9X21)
€ 6.00
23
0918006302
ref: 23
SPACER(6.5X9X26)
0918006302
€ 7.00
24
0918006303
ref: 24
SPACER(6.5X9X49)
0918006303
€ 9.50
25
0918006281
ref: 25
SPACER(6.5X9X45.9)
0918006281
€ 7.00
26
0916109005
ref: 26
WASHER(8.7X16X5)
0916109005
€ 2.50
27
1137138B20
ref: 27
COVER,GEAR SHIFT
€ 76.50
27A
6839238B00
ref: 27A
LABEL,GEAR SHIFT
€ 2.50
28-1
1148538B10
ref: 28-1
11485-38B20
GASKET,GEAR SHIFT COVER (NAS)
1148538B10
€ 7.50
28-2
1148538B20
ref: 28-2
GASKET,GEAR SHIFT COVER (NAS)
1148538B20
€ 7.50
29
0421109109
ref: 29
PIN
0421109109
€ 2.00
30-1
0154706257
ref: 30-1
BOLT
0154706257
€ 2.50
30-2
0910306212
ref: 30-2
BOLT(6X25)
0910306212
€ 2.50
31-1
0154706357
ref: 31-1
BOLT
0154706357
€ 2.50
31-2
0910306214
ref: 31-2
BOLT(6X35)
0910306214
€ 2.50
32-1
0154706457
ref: 32-1
BOLT
0154706457
€ 2.50
32-2
0910306224
ref: 32-2
BOLT(6X45)
0910306224
€ 3.00
33-1
0916806023
ref: 33-1
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
33-2
0916806023
ref: 33-2
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
