FRONT DAMPER (MODEL K4)

VS1400GLP INTRUDER 2004 (K4) USA (E03)

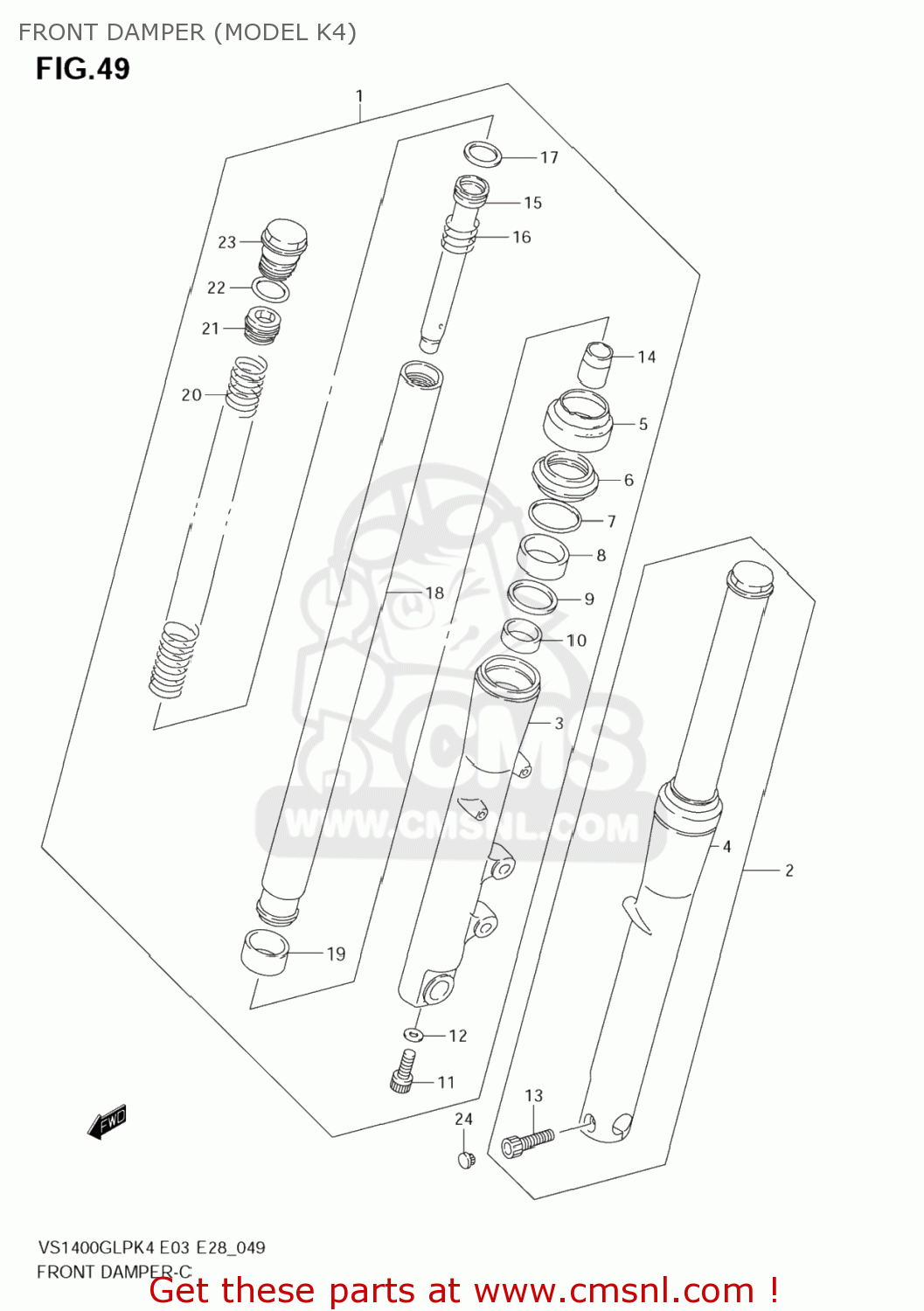

Front damper (model k4) diagram VS1400GLP INTRUDER 2004 (K4) USA (E03)

FRONT DAMPER (MODEL K4) VS1400GLP INTRUDER 2004 (K4) USA (E03)

FRONT DAMPER (MODEL K4) VS1400GLP INTRUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5110338B00
ref: 1

DAMPER ASSY,FR FORK,R

€ 858.50

2

5110438B00
ref: 2

DAMPER ASSY,FR FORK,L

€ 923.50

3

5113138B00
ref: 3

TUBE,OUTER,R

€ 470.00

4

5114138B00
ref: 4

TUBE,OUTER,L

€ 470.00

5

5157238B00
ref: 5

COVER,CASE

€ 31.00

6

5117315D00
ref: 6

DUST SEAL

€ 19.50

7

5155638B00
ref: 7

CIRCLIP,FORK OIL SEAL

€ 4.50

8

5115308D00
ref: 8

SEAL,OIL

€ 15.50

9

5116838B00
ref: 9

SPACER,SEAL

€ 5.00

10

5115248B31
ref: 10

BUSH,GUIDE

€ 20.00

11

5114748130
ref: 11

BOLT(8X27)

€ 3.50

12

5114836011
ref: 12

GASKET (NAS)

€ 4.00

13

0713008407
ref: 13

BOLT

€ 3.50

14

5119538B00
ref: 14

PIECE,OIL LOCK

€ 27.50

15

5114638B00
ref: 15

CYLINDER

€ 92.00

16

5117732B00
ref: 16

SPRING,REBOUND

€ 9.50

17

5119632B00
ref: 17

RING,PISTON

€ 7.50

18

5111038B00
ref: 18

TUBE,INNER

€ 546.00

19

5112103D00
ref: 19

BUSH,SLIDE

€ 15.00

20

5117138B00
ref: 20

SPRING,FR FORK

€ 119.50

21

5135338B00
ref: 21

BOLT,FORK INNER

€ 27.50

22

5111738B00
ref: 22

O RING

€ 4.00

23

5135138B00
ref: 23

BOLT

€ 81.00

24

0925006009
ref: 24

CAP(OD:14.5)

€ 3.50
