STARTING MOTOR

VS1400GLP INTRUDER 2004 (K4) USA (E03)

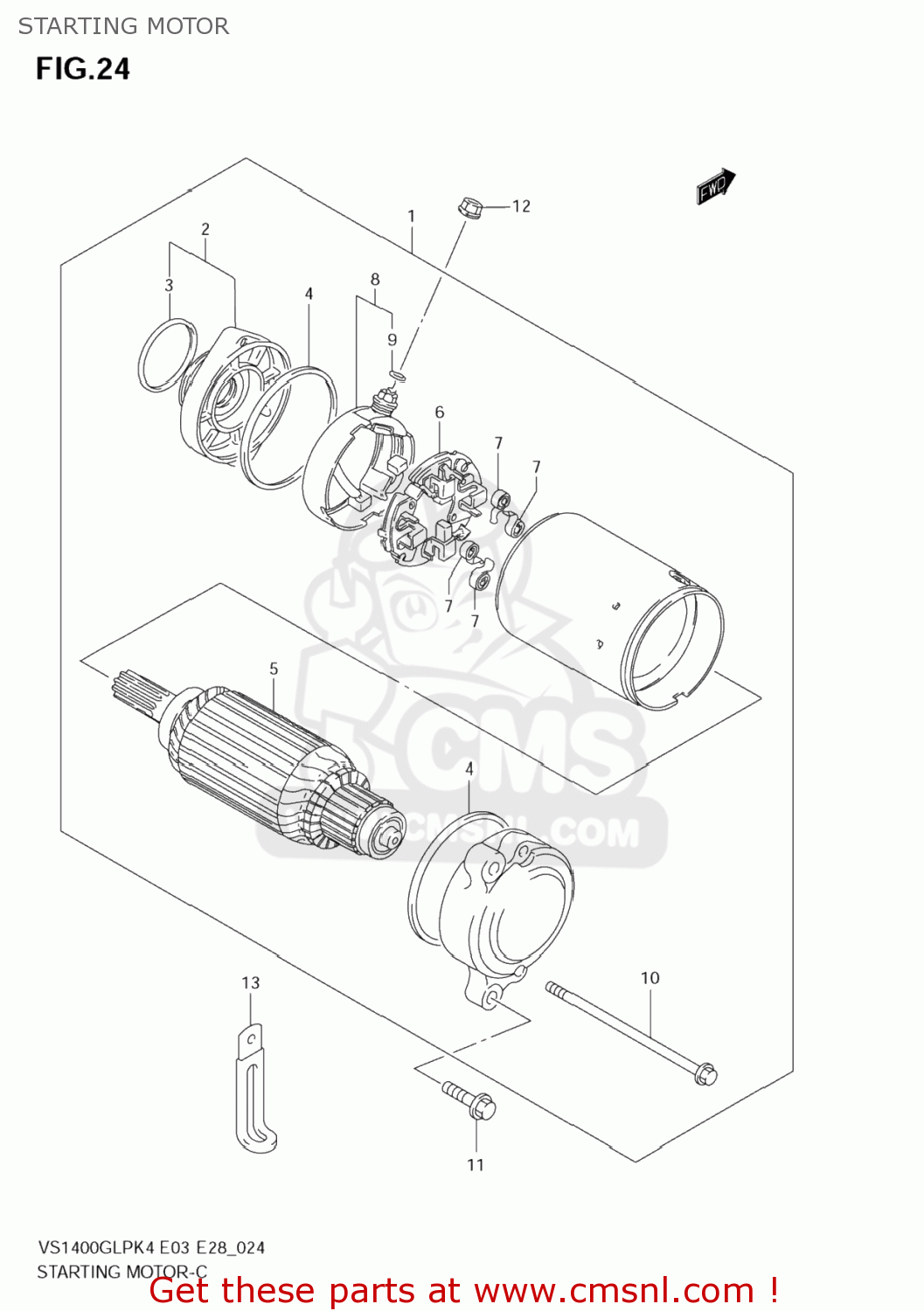

Starting motor diagram VS1400GLP INTRUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110038B02
ref: 1

MOTOR ASSY,STARTING

€ 973.50

3115038B00
ref: 2

BRACKET SET

€ 114.50

0928035003
ref: 3
09280-35005

O-RING (D:2 ID:35)

€ 9.50

3126431300
ref: 4
31264-32E00

O RING

€ 7.50

3131038B01
ref: 5

ARMATURE

€ 278.50

3113238B00
ref: 6

HOLDER SET,BRUSH

€ 45.00

3113538B00
ref: 7

SPRING,BRUSH

€ 3.50

3113038B00
ref: 8

TERMINAL SET,BRUSH

€ 45.00

3114349040
ref: 9

O RING

€ 3.00

3128124B10
ref: 10

BOLT

€ 5.00

0910306212
ref: 11

BOLT(6X25)

€ 2.50

083613506A
ref: 12

NUT

€ 2.00

0940406429
ref: 13

CLAMP(L:45)

€ 2.50
