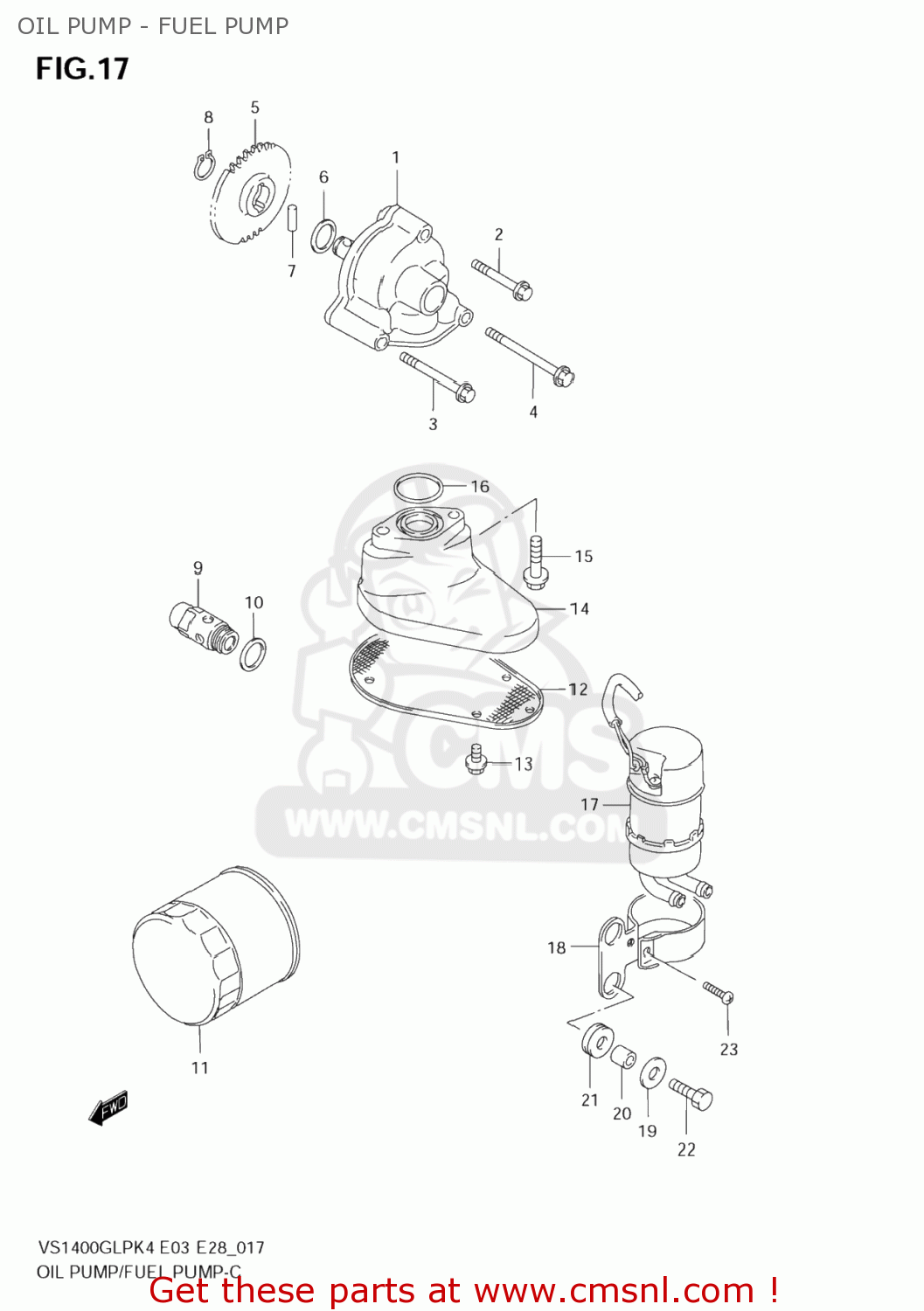

OIL PUMP - FUEL PUMP - VS1400GLP INTRUDER 2004 (K4) USA (E03)

ref

part #

description

quantity

1

1640038B00
ref: 1

PUMP ASSY,ENGINE OIL

€ 244.50

2

015470645B
ref: 2

BOLT

€ 3.00

3

015470655B
ref: 3

BOLT

€ 3.00

4

015470665B
ref: 4

BOLT

€ 2.00

5

1633138B01
ref: 5

GEAR,OIL PUMP DRIVEN

€ 61.50

6

0918112158
ref: 6

SHIM(12X20X0.5)

€ 2.00

7

0926105006
ref: 7

PIN(5X18)

€ 1.50

8

0833131126
ref: 8
08331-3112A

CIRCLIP,12 MM

€ 2.00

9-1

1644024A01
ref: 9-1

VALVE ASSY,OIL RELIEF

€ 52.00

9-2

1644017C20
ref: 9-2

VALVE ASSY,OIL RELIEF

€ 39.00

10

0916816002
ref: 10

GASKET(16X22X2) (NAS)

€ 2.00

11-1

1651003G00X07
ref: 11-1
16510-07J00

FILTER ASSY,EN

€ 12.50

11-2

1651022H00
ref: 11-2

FILTER ASSY,EN

€ 33.50

12

1652038B10
ref: 12

STRAINER,ENGINE OIL

€ 21.00

13-1

0155005103
ref: 13-1
01550-0510A

BOLT

€ 2.50

13-2

015500510A
ref: 13-2

BOLT

€ 2.50

14

1652538B10
ref: 14

HOLDER,OIL STR

€ 24.00

15-1

0155006253
ref: 15-1
01550-0625A

BOLT

€ 2.50

15-2

015500625A
ref: 15-2

BOLT

€ 2.50

16

0928022008
ref: 16

O RING(D:3.1,ID:22.7)

€ 2.50

17

1510038A00
ref: 17

PUMP ASSY,FUEL

€ 238.50

18

1511038B01
ref: 18

BRACKET,FUEL PUMP

€ 9.00

19

0916006088
ref: 19

WASHER(6.5X20X1.6)

€ 2.00

20

0918006286
ref: 20

SPACER(6.5X10X9.4)

€ 2.50

21

0932010015
ref: 21

CUSHION

€ 2.50

22

015000625B
ref: 22

BOLT

€ 2.50

23

0214204167
ref: 23

SCREW

€ 2.00

OIL PUMP - FUEL PUMP

all assemblies
