GEAR SHIFTING
VS1400GLP INTRUDER 2004 (K4) USA (E03)

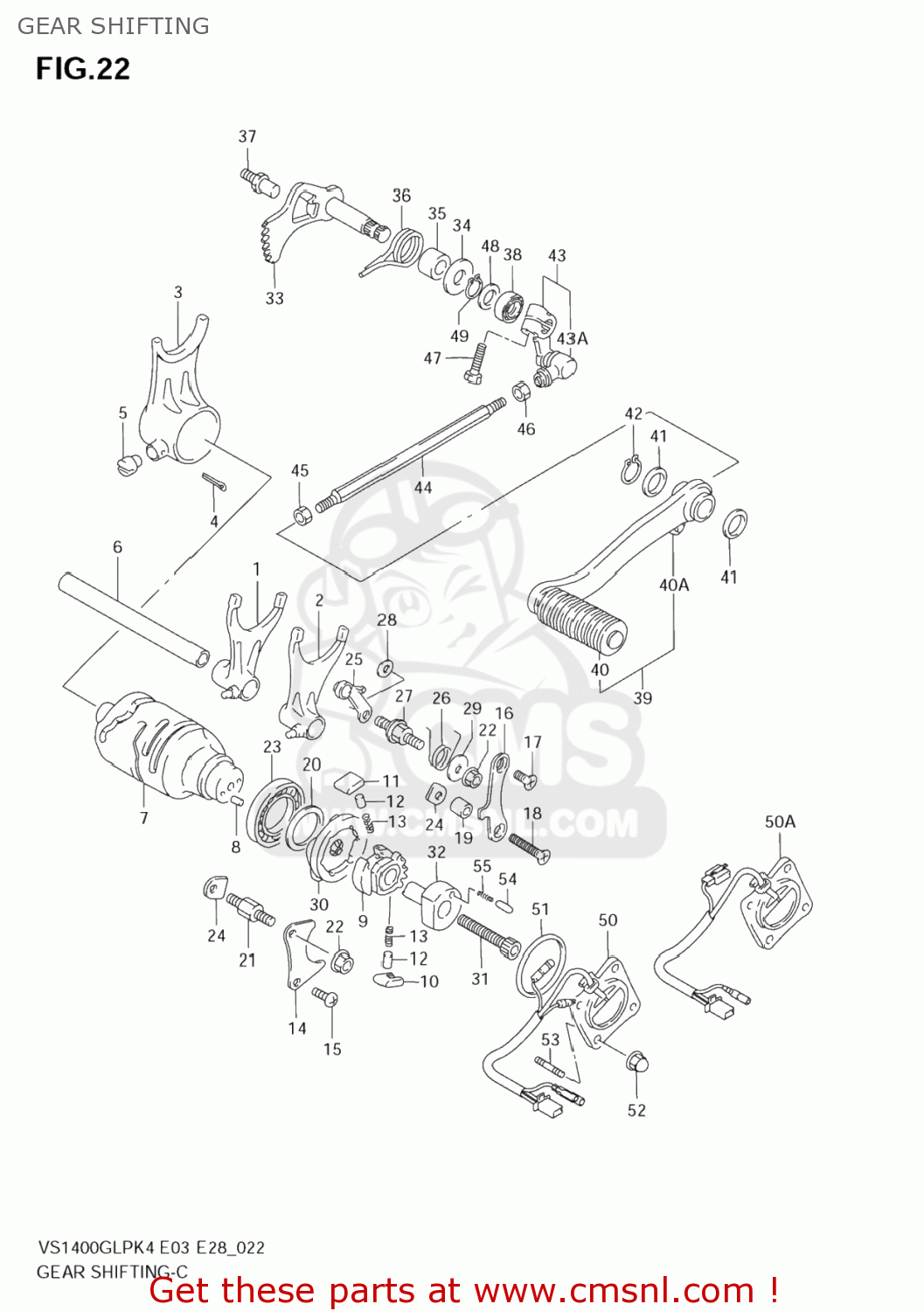

Gear shifting diagram VS1400GLP INTRUDER 2004 (K4) USA (E03)
GEAR SHIFTING VS1400GLP INTRUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521138B11
ref: 1
FORK,GEAR SHIFT NO.1
€ 83.00
2
2522138B10
ref: 2
FORK,GEAR SHIFT NO.2
€ 83.00
3
2523138B10
ref: 3
FORK,GEAR SHIFT NO.3
€ 168.00
4-1
0411125308
ref: 4-1
04111-2530A
PIN, COTTER
€ 1.50
4-2
041112525A
ref: 4-2
PIN
€ 1.50
5
0920910002
ref: 5
PIN
€ 8.50
6
2541138B01
ref: 6
SHAFT,GEAR SHIFT FORK(L:152)
€ 20.00
7
2531038B10
ref: 7
CAM,GEAR SHIFT
€ 213.50
8
0422104089
ref: 8
PIN
€ 1.50
9
2532231310
ref: 9
GEAR,GEAR SHIFT CAM DRIVEN
€ 14.50
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
€ 1.50
13
0944004003
ref: 13
SPRING
€ 1.50
14
2533138B00
ref: 14
LIFTER,GEAR SHIFT POLE
€ 5.00
15
0912506110
ref: 15
BOLT(6X12)
€ 2.50
16
2534138B00
ref: 16
GUIDE,GEAR SHIFT CAM
€ 7.00
17
0912606011
ref: 17
SCREW(6X12)
€ 2.00
18
0912606019
ref: 18
SCREW(6X30)
€ 2.50
19
0918006293
ref: 19
SPACER(6.5X10X14)
€ 2.00
20
0916025059
ref: 20
WASHER(25X32X3)
€ 5.00
21
2533238A10
ref: 21
BOSS,SHIFT POLE LIFTER
€ 3.50
22
083161006A
ref: 22
NUT
€ 2.50
23
0926225006
ref: 23
BEARING(25X47X8)
€ 24.00
24
2474121A00
ref: 24
RETAINER
€ 2.00
25
2535038B00
ref: 25
STOPPER,GEAR SHIFT CAM
€ 13.00
26
0944817024
ref: 26
SPRING
€ 5.00
27
2535612C00
ref: 27
SUPPORT,CAM STOPPER ARM
€ 9.50
28
0821106141
ref: 28
WASHER
€ 2.50
29
0916006121
ref: 29
WASHER(6.5X18X2)
€ 10.50
30
2538038B00
ref: 30
PLATE,GEAR SHIFT CAM
€ 15.00
31
0910606083
ref: 31
BOLT(6X50)
€ 5.00
32
2531238B01
ref: 32
HOLDER,NEUTRAL SWITCH
€ 21.00
33
2551038B00
ref: 33
SHAFT,GEAR SHIFT
€ 94.00
34
0916012091
ref: 34
WASHER(12.5X28X1.2)
€ 2.50
35
0918012068
ref: 35
SPACER(12X20X15.3)
€ 3.00
36
0944426021
ref: 36
SPRING
€ 5.00
37
2567138B00
ref: 37
STOPPER,SHIFT ARM
€ 3.00
38
0928512002
ref: 38
09285-12006
OIL SEAL
€ 7.00
39
2560038B01
ref: 39
LEVER ASSY,GEAR SHIFT
€ 78.00
40
2565238B00
ref: 40
RUBBER,GEAR SHIFT PEDAL
€ 7.50
40A
2552647000
ref: 40A
COVER,DUST
€ 3.50
41
0916014054
ref: 41
WASHER(14.5X22X1)
€ 1.00
42
0833131146
ref: 42
08331-3114A
CIRCLIP
€ 2.00
43
2552038B00
ref: 43
ARM,GEAR SHIFT LINK
€ 39.50
43A
2552647000
ref: 43A
COVER,DUST
€ 3.50
44
2552538B00
ref: 44
ROD,GEAR SHIFT LINK
€ 21.00
45
0914006011
ref: 45
NUT
€ 1.50
46
0831000067
ref: 46
NUT
€ 2.50
47
0150006207
ref: 47
BOLT
€ 2.00
48
0918112167
ref: 48
SHIM(12X20X1)
€ 2.50
49
083313112A
ref: 49
CIRCLIP
€ 2.00
50
3772038B00
ref: 50
BASE ASSY,NEUTRAL SW TERMINAL
€ 94.50
50A
3772038BA0
ref: 50A
BASE ASSY,NEUTRAL SW TERMINAL
€ 67.50
51
0928035006
ref: 51
O RING(D:2.4,ID:35.5)
€ 4.00
52
083132005B
ref: 52
NUT
€ 2.00
53
0910805010
ref: 53
BOLT,STUD
€ 2.50
54
0920904021
ref: 54
PIN
€ 9.00
55
0944002003
ref: 55
SPRING
€ 12.00
