REAR COMBINATION LAMP (VS1400K5/K6/K7/K8)

VS1400GLP INTRUDER 2004 (K4) USA (E03)

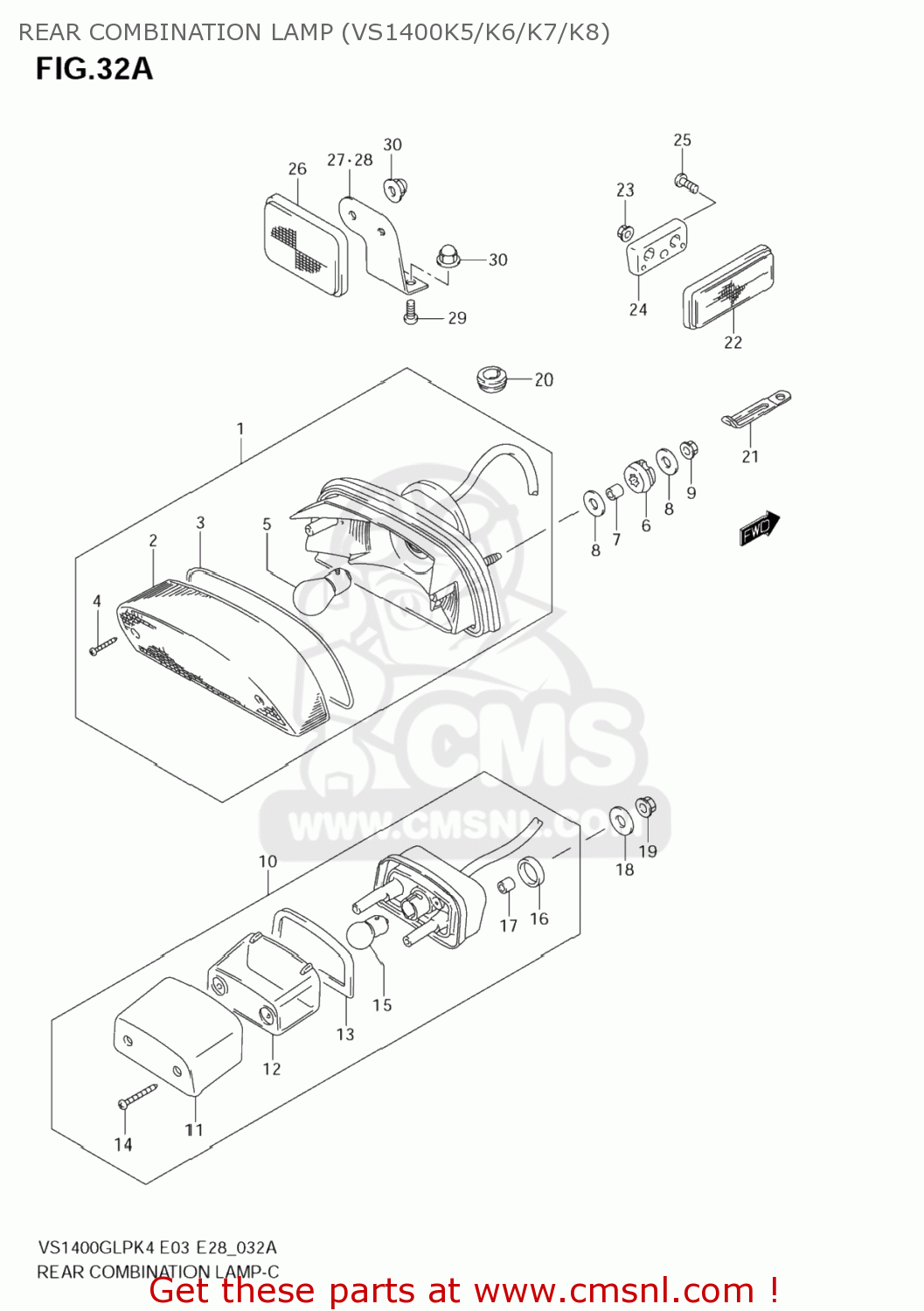

Rear combination lamp (vs1400k5/k6/k7/k8) diagram VS1400GLP INTRUDER 2004 (K4) USA (E03)

REAR COMBINATION LAMP (VS1400K5/K6/K7/K8) VS1400GLP INTRUDER 2004 (K4) USA (E03)
REAR COMBINATION LAMP (VS1400K5/K6/K7/K8) VS1400GLP INTRUDER 2004 (K4) USA (E03)
REAR COMBINATION LAMP (VS1400K5/K6/K7/K8) VS1400GLP INTRUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3571038B30
ref: 1
LAMP ASSY,RR COMBINATION
3571038B30
€ 118.00
2
3571238B30
ref: 2
LENS
3571238B30
€ 30.00
3
3571338B30
ref: 3
GASKET (NAS)
3571338B30
€ 6.50
4
035110416A
ref: 4
SCREW
035110416A
€ 1.50
5
0947112129
ref: 5
BULB(12V27/8W)
0947112129
€ 10.00
6
0932009018
ref: 6
CUSHION
0932009018
€ 2.00
7
0918006264
ref: 7
SPACER(6.5X9X10.5)
0918006264
€ 2.00
8
0916006077
ref: 8
WASHER(6.5X20X1.2)
0916006077
€ 2.00
9
083162006B
ref: 9
NUT
€ 0.00
10-1
3591038B30
ref: 10-1
LAMP ASSY,LICENSE
3591038B30
€ 121.00
10-2
3591038B40
ref: 10-2
LAMP ASSY,LICENSE
€ 98.00
11
3591738B30
ref: 11
COVER,LICENSE LAMP
3591738B30
€ 21.00
12
3591238B30
ref: 12
LENS,LICENSE LAMP
€ 10.50
13
3591338B30
ref: 13
GASKET,LICENSE LAMP (NAS)
€ 5.00
14
0321104207
ref: 14
SCREW
0321104207
€ 1.50
15
0947112130
ref: 15
BULB(12V7.5W)
€ 2.50
16
3576238B30
ref: 16
CUSHION
€ 0.00
17
3576638B30
ref: 17
SPACER
€ 0.00
18
0916006077
ref: 18
WASHER(6.5X20X1.2)
0916006077
€ 2.00
19
083162006B
ref: 19
NUT
€ 0.00
20
0930812009
ref: 20
GROMMET
0930812009
€ 3.00
21
0940406429
ref: 21
CLAMP(L:45)
€ 2.50
22
3597024D60
ref: 22
REFLECTOR ASSY,RR
3597024D60
€ 19.50
23
083161005B
ref: 23
NUT
083161005B
€ 2.50
24
3597738B12
ref: 24
SPACER,RR SIDE REFLECTOR
€ 5.00
25
035110512B
ref: 25
SCREW
€ 2.00
26
3597038E00
ref: 26
REFLECTOR ASSY,RR
€ 71.50
27
3597438B10
ref: 27
BRACKET,RR RR
€ 0.00
28
3597438B20
ref: 28
BRACKET,RR RR,L
€ 0.00
29
0214205107
ref: 29
SCREW
0214205107
€ 2.50
30
0831320057
ref: 30
NUT
0831320057
€ 1.50
