REAR MASTER CYLINDER

VS1400GLP INTRUDER 2004 (K4) USA (E03)

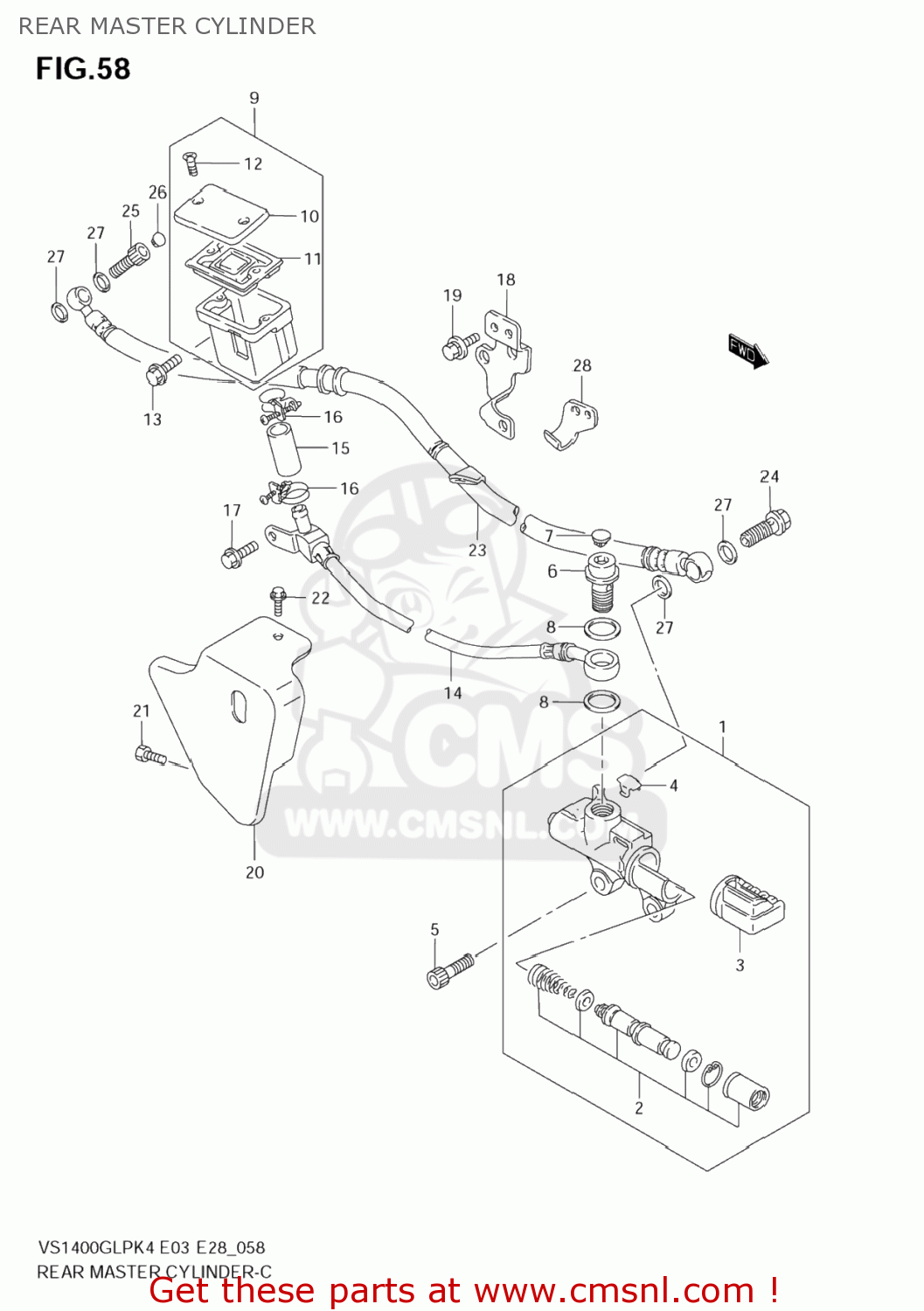

Rear master cylinder diagram VS1400GLP INTRUDER 2004 (K4) USA (E03)

REAR MASTER CYLINDER VS1400GLP INTRUDER 2004 (K4) USA (E03)

REAR MASTER CYLINDER VS1400GLP INTRUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6960038B01
ref: 1

CYLINDER ASSY,RR MASTER

€ 172.00

2

6960038810
ref: 2

PISTON/CUP SET

€ 42.50

3

6969138B00
ref: 3

BOOT

€ 11.00

4

6969638B00
ref: 4

PLATE,STOP

€ 7.50

5

0910608081
ref: 5

BOLT(8X30)

€ 3.00

6

0936014013
ref: 6

BOLT UNION

€ 24.50

7

0925008014
ref: 7

CAP(OD:12)

€ 3.50

8

6966238B00
ref: 8

WASHER,BRAKE FLUID

€ 4.00

9

6974038B21
ref: 9

TANK ASSY,RESERVOIR

€ 85.50

10

5966905D00
ref: 10

CAP

€ 13.50

11

5966704700
ref: 11

DIAPHRAGM

€ 8.00

12

6968904A00
ref: 12

SCREW

€ 2.00

13

0155006163
ref: 13
01550-0616A

BOLT

€ 2.50

14

6973038B00
ref: 14

HOSE,RESERVOIR TANK

€ 248.50

15

6973138B00
ref: 15

HOSE,RESERVOIR TANK

€ 7.00

16

0940113417
ref: 16

CLIP

€ 2.50

17

015500616B
ref: 17

BOLT

€ 2.50

18

6975038B00
ref: 18

BRACKET,RESERVOIR TANK

€ 7.50

19

015500816B
ref: 19

BOLT

€ 3.00

20

6979538B10
ref: 20

COVER,RESERVOIR TANK

€ 74.00

21

0912806044
ref: 21

SCREW(6X10)

€ 1.50

22

0154706107
ref: 22

BOLT

€ 1.50

23

6948038B01
ref: 23
69480-38B02

HOSE,REAR BRAKE

€ 99.00

24

0936010039
ref: 24
09360-10061

BOLT UNION

€ 6.50

25

0936010028
ref: 25

BOLT UNION

€ 5.50

26

0925008012
ref: 26

CAP(OD:12)

€ 2.00

27

0916110009
ref: 27

WASHER(10X15X1.5)

€ 2.00

28

6924438B00
ref: 28

CLAMP,RR BRAKE HOSE

€ 4.50
