WIRING HARNESS (VS1400K5)

VS1400GLP INTRUDER 2004 (K4) USA (E03)

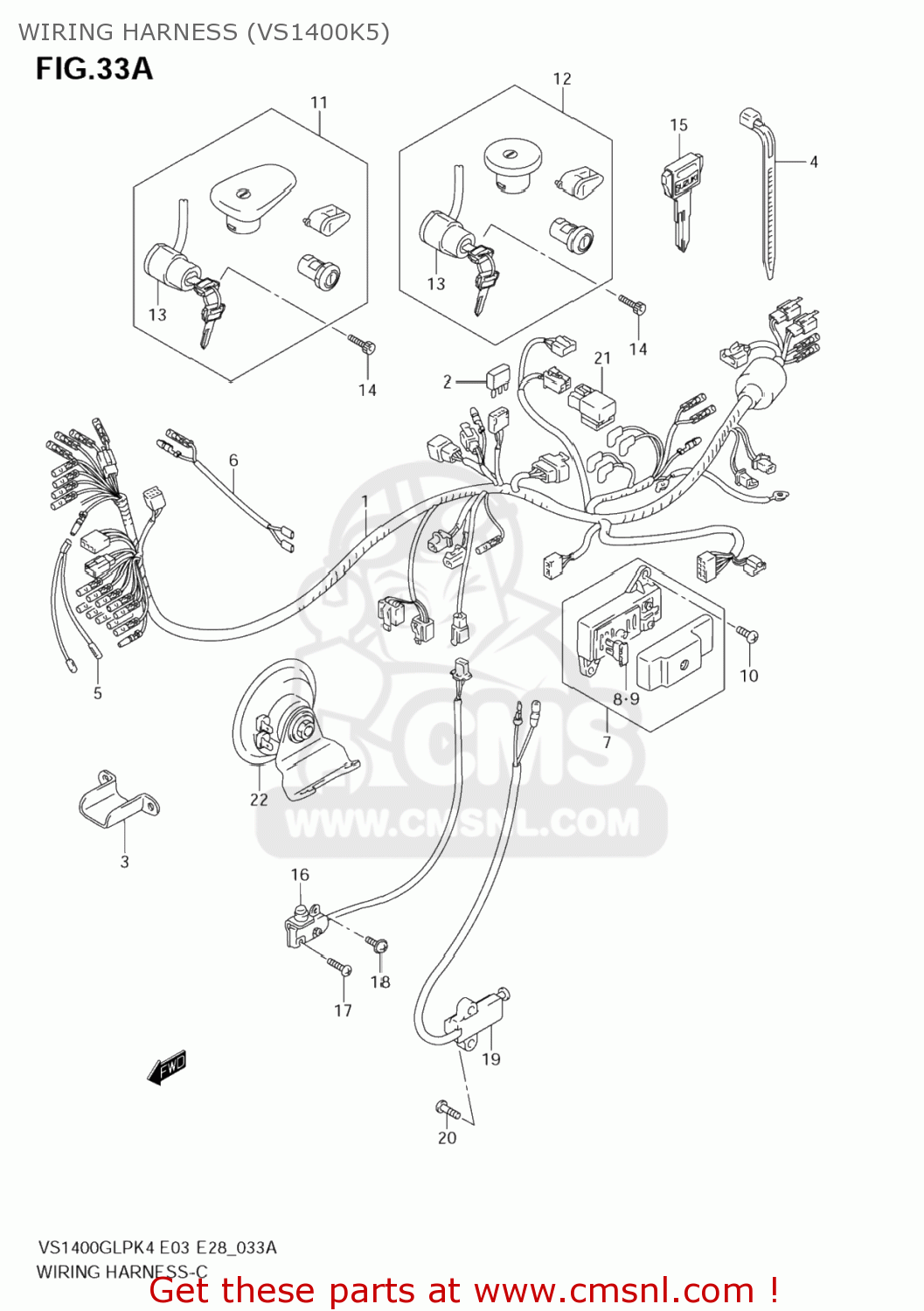

Wiring harness (vs1400k5) diagram VS1400GLP INTRUDER 2004 (K4) USA (E03)

WIRING HARNESS (VS1400K5) VS1400GLP INTRUDER 2004 (K4) USA (E03)
WIRING HARNESS (VS1400K5) VS1400GLP INTRUDER 2004 (K4) USA (E03)
WIRING HARNESS (VS1400K5) VS1400GLP INTRUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661038BH0
ref: 1
HARNESS,WIRING
€ 0.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
3661938B00
ref: 3
GUIDE,WIRING HARNESS
3661938B00
€ 6.50
4-1
0940714403
ref: 4-1
CLAMP(L:125)
0940714403
€ 2.50
4-2
0940714407
ref: 4-2
CLAMP(L:145)
0940714407
€ 4.00
4-3
0940718402
ref: 4-3
CLAMP(L:165)
0940718402
€ 2.50
5
3685238B10
ref: 5
WIRE,CLUTCH SW CONNECTOR
3685238B10
€ 5.50
6
3859538B10
ref: 6
WIRE,HORN LEAD
€ 8.00
7
3674019C00
ref: 7
BOX ASSY,FUSE
3674019C00
€ 88.00
8
0948125101
ref: 8
09481-25103
FUSE (25A)
0948125101
€ 2.50
9
0948110101
ref: 9
FUSE(10A)
0948110101
€ 2.50
10
0214206163
ref: 10
02142-0616A
SCREW
0214206163
€ 2.50
11
3700038850
ref: 11
LOCK SET
€ 0.00
12
3700038860
ref: 12
LOCK SET
€ 0.00
13
3711038B03
ref: 13
SWITCH ASSY,IGNITION
3711038B03
€ 71.50
14
0713005163
ref: 14
07130-0516A
BOLT
€ 2.00
15-1
3714603A00
ref: 15-1
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
15-2
3714603A10
ref: 15-2
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
15-3
3714603A20
ref: 15-3
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
15-4
3714603A30
ref: 15-4
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
16
3774038B00
ref: 16
SWITCH ASSY,STOP LAMP
3774038B00
€ 79.00
17
0211204163
ref: 17
02112-0416A
SCREW 4X16
0211204163
€ 1.00
18
0214204063
ref: 18
02142-0406A
SCREW
€ 1.50
19
3784039A22
ref: 19
SWITCH ASSY,SIDE STAND
3784039A22
€ 87.50
20
0211276203
ref: 20
02112-7620B
SCREW
€ 2.50
21
3874038B00
ref: 21
RELAY ASSY
€ 37.50
22
3850038B10
ref: 22
HORN ASSY
3850038B10
€ 83.00
