CLUTCH CYLINDER

VS600GL 1996 (T) (E02 E04 E17 E18)

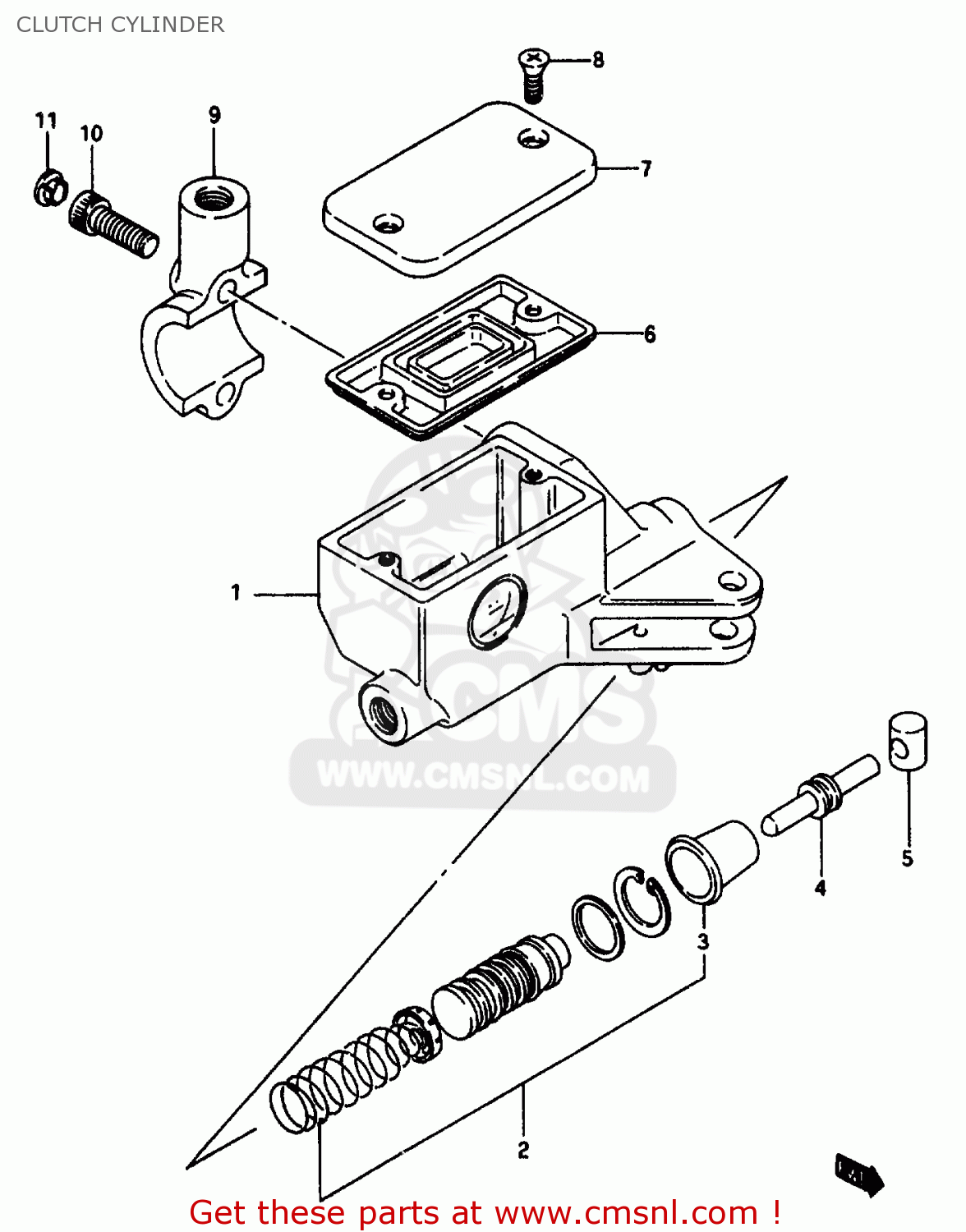

Clutch cylinder diagram VS600GL 1996 (T) (E02 E04 E17 E18)

CLUTCH CYLINDER VS600GL 1996 (T) (E02 E04 E17 E18)

CLUTCH CYLINDER VS600GL 1996 (T) (E02 E04 E17 E18)

prices are in EUR

ref

part #

description

quantity

1-1

5980039A20
ref: 1-1

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 421.00

1-2

5980039A10
ref: 1-2
VS600GLFT/GLFV E4,E3

CYLINDER ASSY, CLUTCH MASTER

€ 428.00

2

5980008810
ref: 2

PISTON & CUP SET

€ 36.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5987138A00
ref: 4

PUSH ROD

€ 6.50

5

5989208A00
ref: 5

BUSH

€ 5.50

6

5966749460
ref: 6

5966749460

7

5966924B00
ref: 7

CAP

€ 59.00

8

0211204127
ref: 8

SCREW

€ 1.50

9

5967138A00
ref: 9

HOLDER

€ 37.50

10

0713006207
ref: 10

BOLT

€ 3.50

11

0925005008
ref: 11

CAP(OD:10)

€ 5.00
