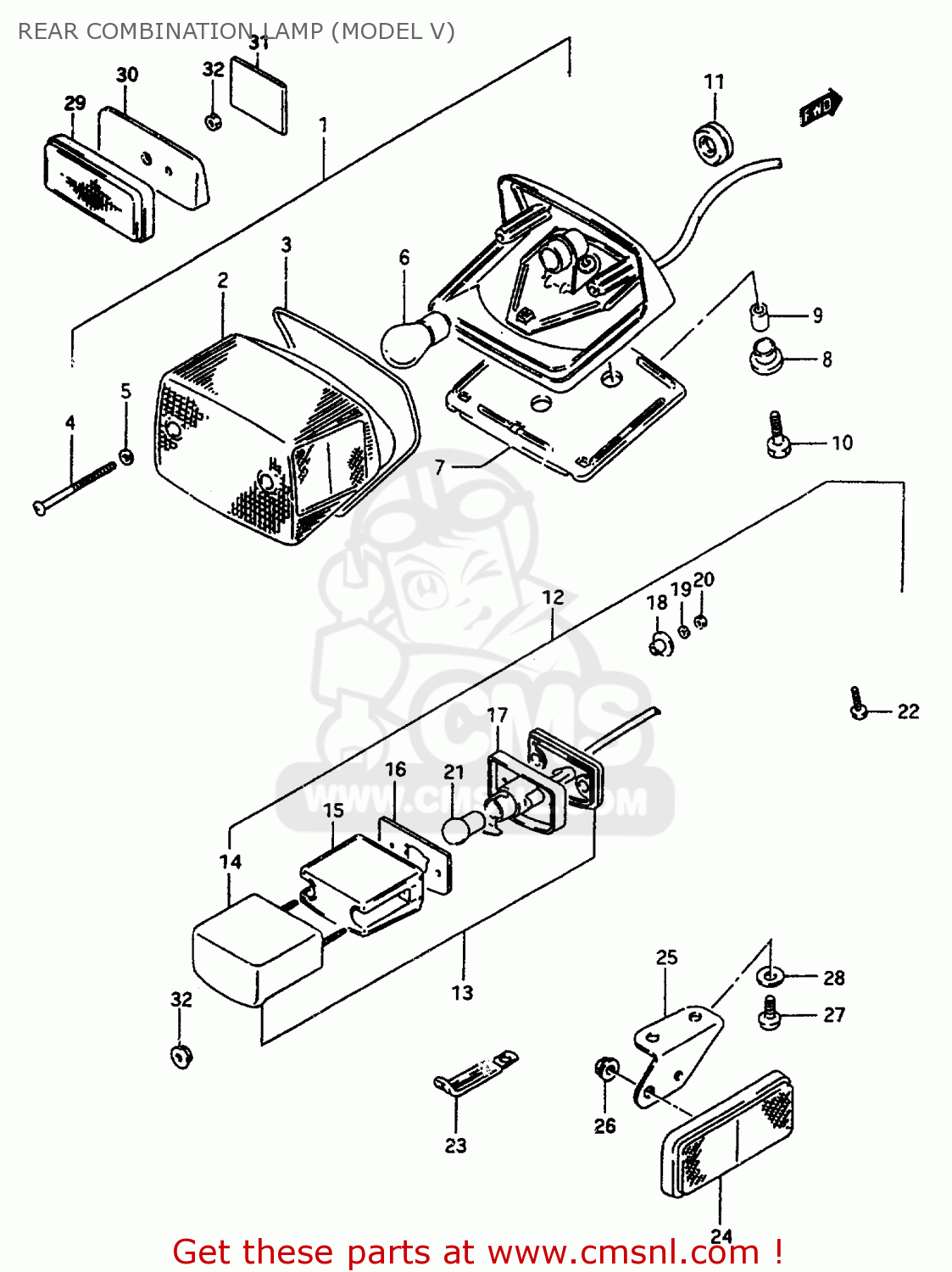

REAR COMBINATION LAMP (MODEL V)

ref

part #

description

quantity

1

3571038A20
ref: 1

LAMP ASSY,RR COMBINATION

€ 303.00

2

3571238A20
ref: 2

LENS

€ 81.00

3

3571338A00
ref: 3

GASKET (NAS)

€ 9.50

4

3572344130
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112083
ref: 6

BULB(12V21/5W)

€ 6.00

7

3576538A00
ref: 7

CUSHION

€ 13.50

8

3576426470
ref: 8

CUSHION

€ 2.50

9

3576637190
ref: 9

SPACER

€ 2.00

10

0911606093
ref: 10

BOLT(6X25)

€ 2.00

11-1

0930809013
ref: 11-1

GROMMET

€ 2.00

11-2

0930814006
ref: 11-2
E4,E17,E34

GROMMET

€ 3.50

12

3591038A21
ref: 12

LAMP ASSY,LICENSE

€ 240.00

13

3591038E00
ref: 13
E17

LAMP ASSY,LICENSE

€ 156.00

14-1

3591738A20
ref: 14-1

COVER,LICENSE LAMP

€ 121.50

14-2

3591738E00
ref: 14-2
E17

COVER

€ 74.50

15

3591238A20
ref: 15

LENS

€ 13.00

16

3591338A30
ref: 16

GASKET,LICENSE LAMP (NAS)

€ 2.00

17-1

3591538A31
ref: 17-1

HOUSING,LICENSE LAMP

€ 39.50

17-2

3591538E00
ref: 17-2
E17

HOUSING, LICENSE LAMP

€ 40.50

18

3576638A30
ref: 18

SPACER

€ 2.00

19

0832101043
ref: 19

WASHER,LOCK

€ 2.00

20

0831000047
ref: 20

NUT

€ 2.00

21

0947112140
ref: 21

BULB(12V5W,BF150-40160A)

€ 4.00

22

0911606093
ref: 22

BOLT(6X25)

€ 2.00

23

0940406429
ref: 23

CLAMP(L:45)

€ 2.50

24

3595043431
ref: 24
E18

REFLEX REFLECTOR,FR SIDE

€ 12.00

25-1

3597438A20
ref: 25-1
E18

BRACKET,RR SIDE RR,L

€ 10.50

25-2

3597538A20
ref: 25-2
E18

BRACKET,RR SIDE RR,R

€ 10.50

26

0831000053
ref: 26
E18

NUT

€ 2.50

27-1

0211206083
ref: 27-1
E18

SCREW

€ 1.50

27-2

0211206123
ref: 27-2
E18

SCREW

€ 1.50

28

0916006031
ref: 28
E18

WASHER (6.3X14X1.6)

€ 2.00

29

3597024D60
ref: 29

REFLECTOR ASSY,RR

€ 19.50

30

3597738B30
ref: 30

SPACER,RR REFLECTOR

€ 3.00

31

6826238A00
ref: 31

TAPE,TOOL BAG PROTECTOR

€ 3.50

32

0831000053
ref: 32

NUT

€ 2.50
