SEAT (SEE NOTE)
VS600GL 1996 (T) (E02 E04 E17 E18)

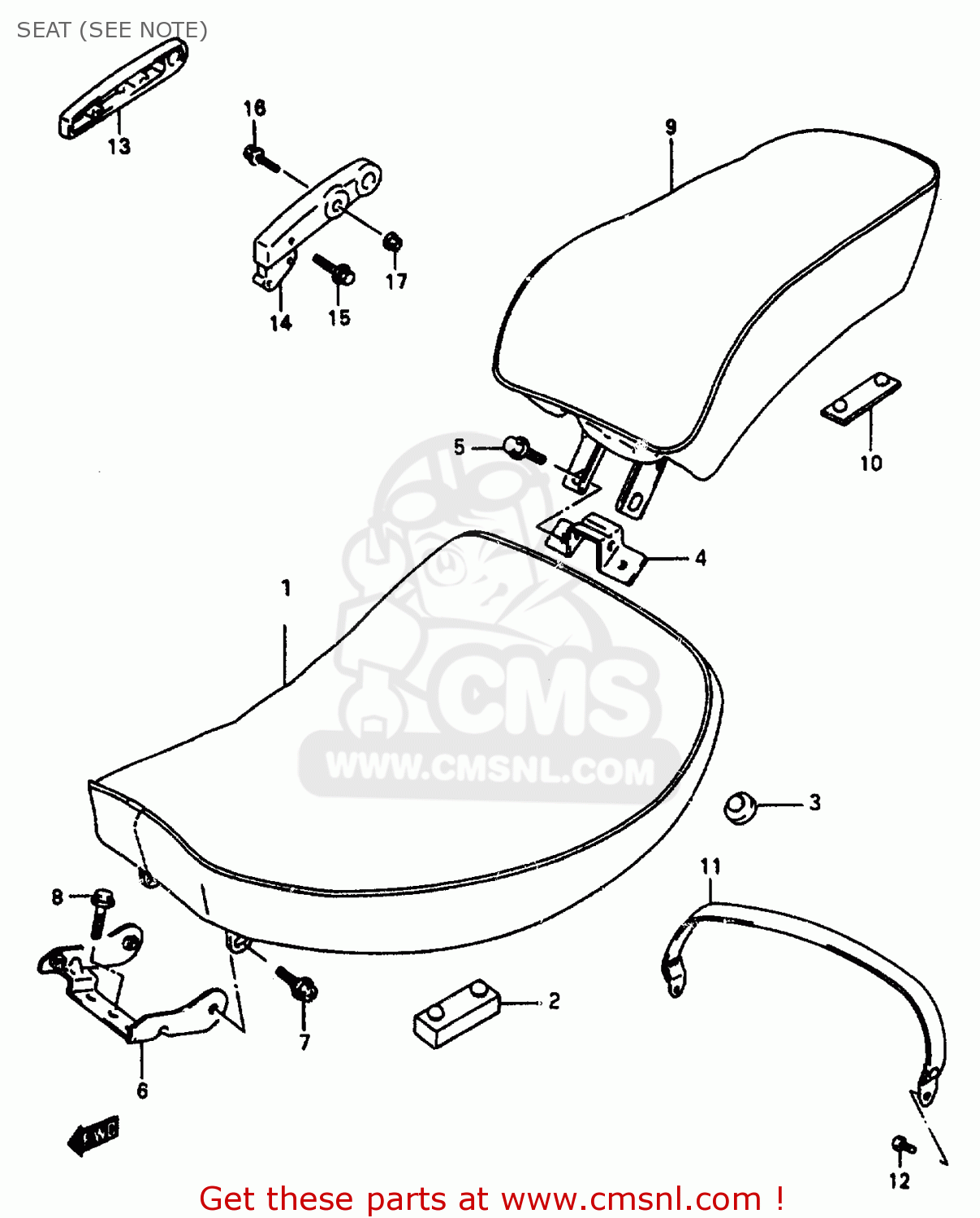

Seat (see note) diagram VS600GL 1996 (T) (E02 E04 E17 E18)
SEAT (SEE NOTE) VS600GL 1996 (T) (E02 E04 E17 E18)
×
prices are in EUR
ref
part #
description
quantity
1
4510038A60E7T
ref: 1
SEAT ASSY
€ 417.50
2
4514943500
ref: 2
CUSHION,SEAT
€ 3.00
3
0932110012
ref: 3
CUSHION
€ 3.00
4
4511938A00
ref: 4
PLATE,FR SEAT HOOK & RR
€ 7.50
5
0911106066
ref: 5
BOLT(6X16)
€ 2.50
6
4521038A03
ref: 6
BRACKET,SEAT FR
€ 18.50
7
0911106066
ref: 7
BOLT(6X16)
€ 2.50
8
0155006163
ref: 8
BOLT
€ 2.50
9
4530038A60E7T
ref: 9
SEAT ASSY,PILLION
€ 172.50
10
4514914500
ref: 10
CUSHION
€ 6.50
11
4518038A60R48
ref: 11
BAND, SEAT
€ 25.00
12
0158006167
ref: 12
BOLT
€ 3.00
13
4621238A41
ref: 13
HANDLE,PILLION RIDER,R
€ 80.50
14
4621338A41
ref: 14
HANDLE,PILLION RIDER,L
€ 78.50
15
0158006353
ref: 15
BOLT
€ 3.50
16
0158008453
ref: 16
BOLT
€ 4.00
17
0831610083
ref: 17
NUT
€ 3.00
18
0158006353
ref: 18
BOLT
€ 3.50
19
0158008453
ref: 19
BOLT
€ 4.00
20
0831610083
ref: 20
NUT
€ 3.00
19-2
4621338A41
ref: 19-2
E22
HANDLE,PILLION RIDER,L
€ 78.50
20
0158006353
ref: 20
BOLT
€ 3.50
21
0158008453
ref: 21
BOLT
€ 4.00
22
0831610083
ref: 22
NUT
€ 3.00
