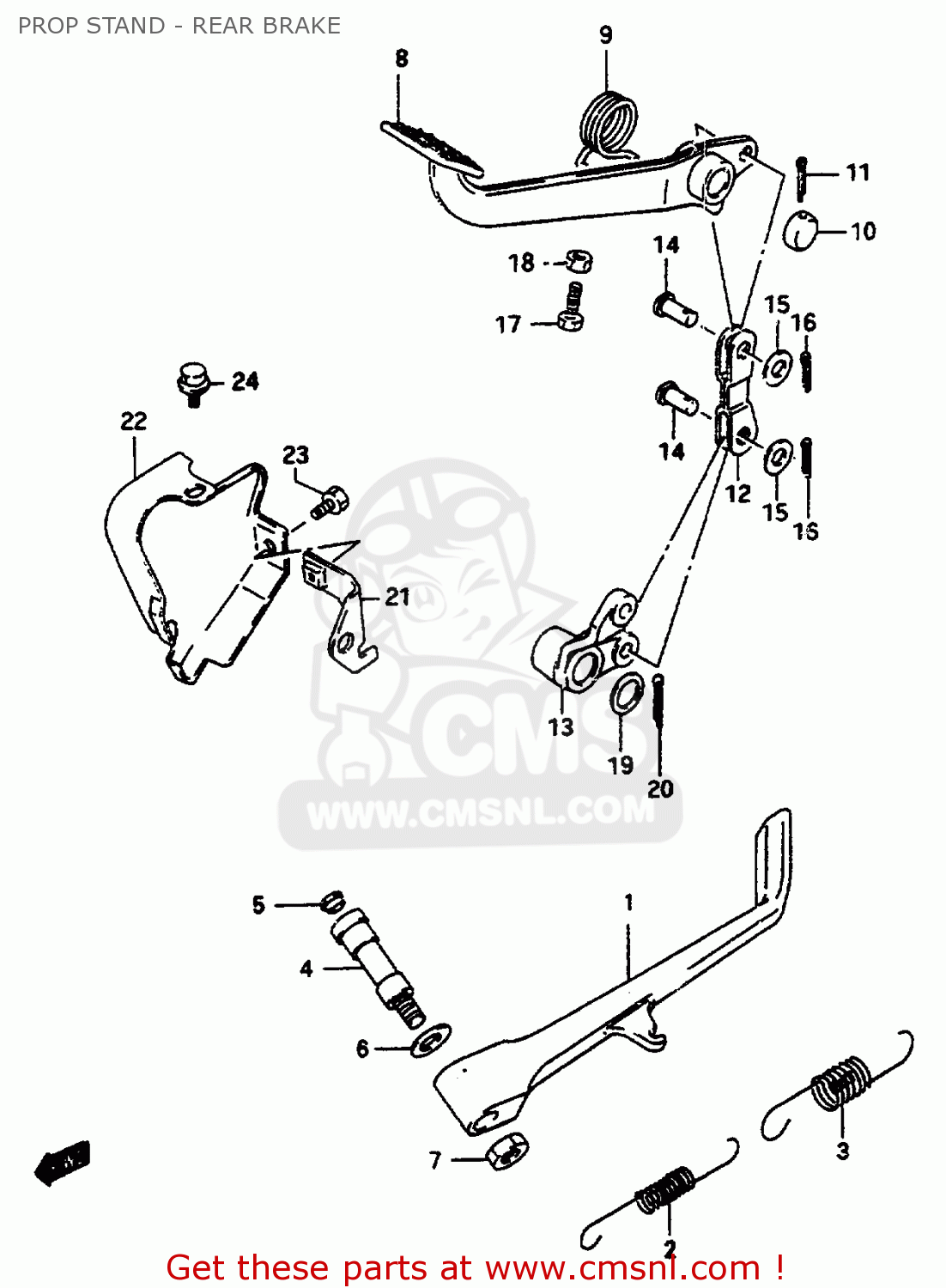

PROP STAND - REAR BRAKE - VS600GL 1996 (T) (E02 E04 E17 E18)

ref

part #

description

quantity

1

4231038A11
ref: 1

STAND,PROP

€ 92.00

2

0944313025
ref: 2

SPRING

€ 7.50

3

0944318021
ref: 3

SPRING

€ 7.50

4

4234138B01
ref: 4

BOLT,PROP STAND

€ 9.00

5

4357534500
ref: 5

CAP

€ 1.50

6

0822115245
ref: 6

THRUST WASHER

€ 2.50

7

0914010044
ref: 7

NUT

€ 2.50

8

4310038A31
ref: 8

PEDAL ASSY,BRAKE

€ 81.50

9

0944831034
ref: 9

SPRING

€ 5.50

10

4313507A02
ref: 10

CAP,BRAKE PEDAL

€ 7.00

11

0411130308
ref: 11

COTTER PIN

€ 1.50

12

4323038A02
ref: 12

LINK,BRAKE ROD NO.1

€ 18.50

13

4326038A22
ref: 13

ARM,BRAKE PEDAL LINK

€ 77.00

14

0920008055
ref: 14

PIN

€ 4.00

15

0832201087
ref: 15

WASHER

€ 2.00

16

0411120158
ref: 16

PIN

€ 1.50

17

0150006207
ref: 17

BOLT

€ 2.00

18

0831000067
ref: 18

NUT

€ 2.50

19

0916016028
ref: 19

WASHER (16.2X22X1)

€ 2.00

20

0411130308
ref: 20

COTTER PIN

€ 1.50

21

4329038A10
ref: 21
MODEL S/T

BRACKET COMP,BRAKE COVER

€ 3.50

22

4329538A31
ref: 22

COVER,BRAKE

€ 57.50

23

0912806004
ref: 23

SCREW(6X10)

€ 1.50

24

0154706107
ref: 24

BOLT

€ 1.50

PROP STAND - REAR BRAKE

all assemblies
