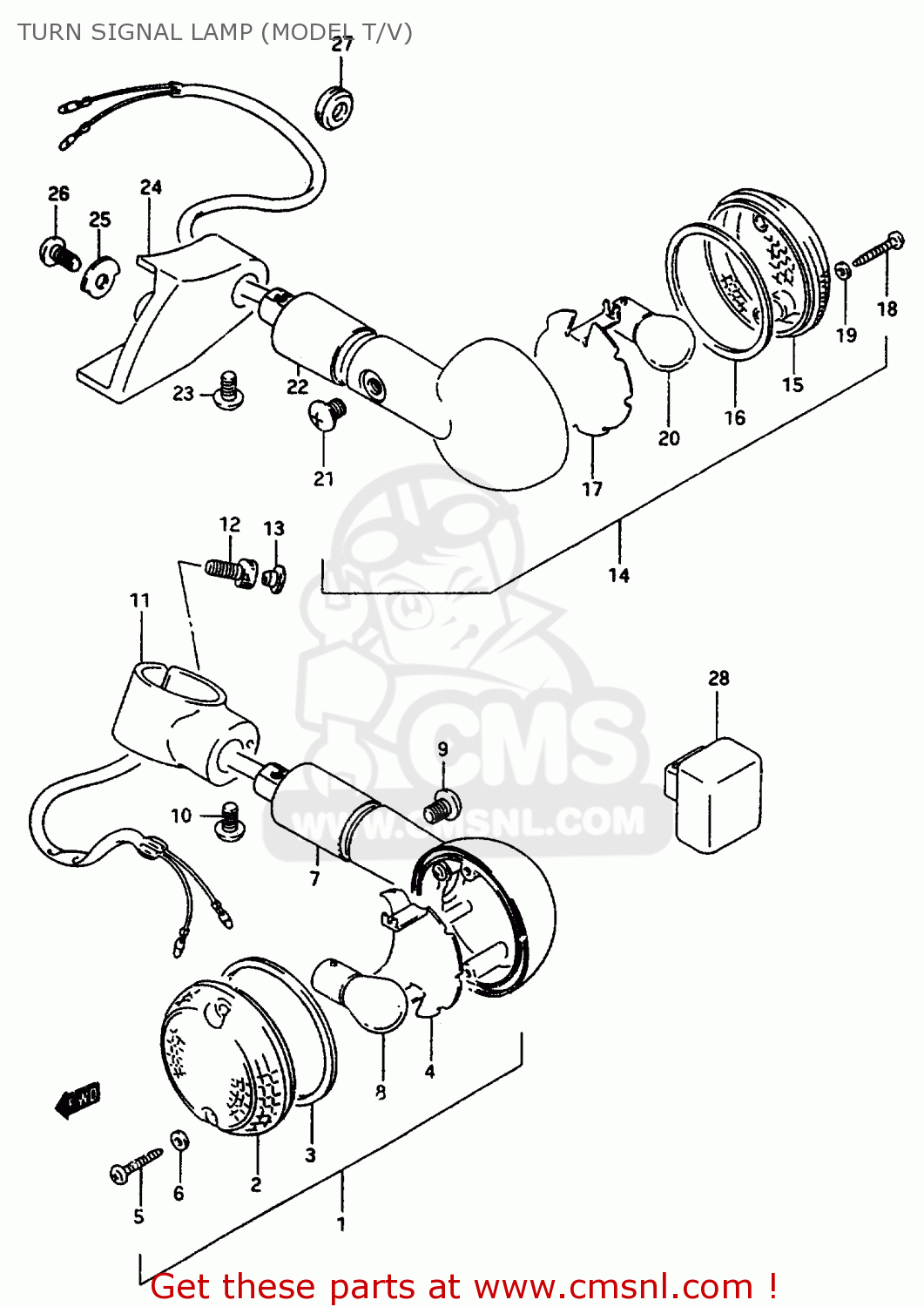

TURN SIGNAL LAMP (MODEL T/V)

ref

part #

description

quantity

1

3560138A22
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 93.50

2

3561238A01
ref: 2

LENS

€ 10.50

3

3561338A00
ref: 3

GASKET (NAS)

€ 11.50

4

3562438A20
ref: 4

REFLECTOR

€ 71.00

5

0321104253
ref: 5

SCREW

€ 2.00

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3561938A01
ref: 7

STAY,TURNSIGNAL LAMP

€ 35.50

8

0947112045
ref: 8

BULB(12V21W)

€ 5.00

9

3562338A01
ref: 9

SCREW

€ 5.50

10

0214206107
ref: 10

SCREW

€ 2.00

11-1

3567139A00
ref: 11-1

BRACKET,FR TURNSIGNAL LAMP,R

€ 51.50

11-2

3568139A00
ref: 11-2

BRACKET,FR TURNSIGNAL LAMP,L

€ 51.50

12

0713006167
ref: 12

BOLT

€ 3.00

13

0925005008
ref: 13

CAP(OD:10)

€ 5.00

14

3560338A22
ref: 14

LAMP ASSY,RR TURNSIGNAL,R

€ 98.00

15

3565238A21
ref: 15

LENS

€ 16.50

16

3561338A00
ref: 16

GASKET (NAS)

€ 11.50

17

3565438A20
ref: 17

REFLECTOR

€ 83.50

18

0321104253
ref: 18

SCREW

€ 2.00

19

3562743010
ref: 19

GASKET (NAS)

€ 2.00

20

0947112045
ref: 20

BULB(12V21W)

€ 5.00

21

3562338A01
ref: 21

SCREW

€ 5.50

22

3561938A01
ref: 22

STAY,TURNSIGNAL LAMP

€ 35.50

23

0214206107
ref: 23

SCREW

€ 2.00

24-1

3562138A22
ref: 24-1
E17,E18,E22

BRACKET,TURN R

€ 26.00

24-2

3564138A22
ref: 24-2
E17,E18,E22

BRACKET, RR TS

€ 31.00

25

3562938A20
ref: 25
E17,E18,E22

WASHER,RR TURNSIGNAL BRACKET

€ 1.50

26

0214206127
ref: 26
E17,E18,E22

SCREW 6X12

€ 1.50

27-1

0930808011
ref: 27-1
MODEL T E4,E22,E34

GROMMET

€ 3.00

27-2

0930808011
ref: 27-2
MODEL V E4,E34

GROMMET

€ 3.00

28

3861045D01
ref: 28

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50

all assemblies
