HANDLE SWITCH

VS600GL 1996 (T) (E02 E04 E17 E18)

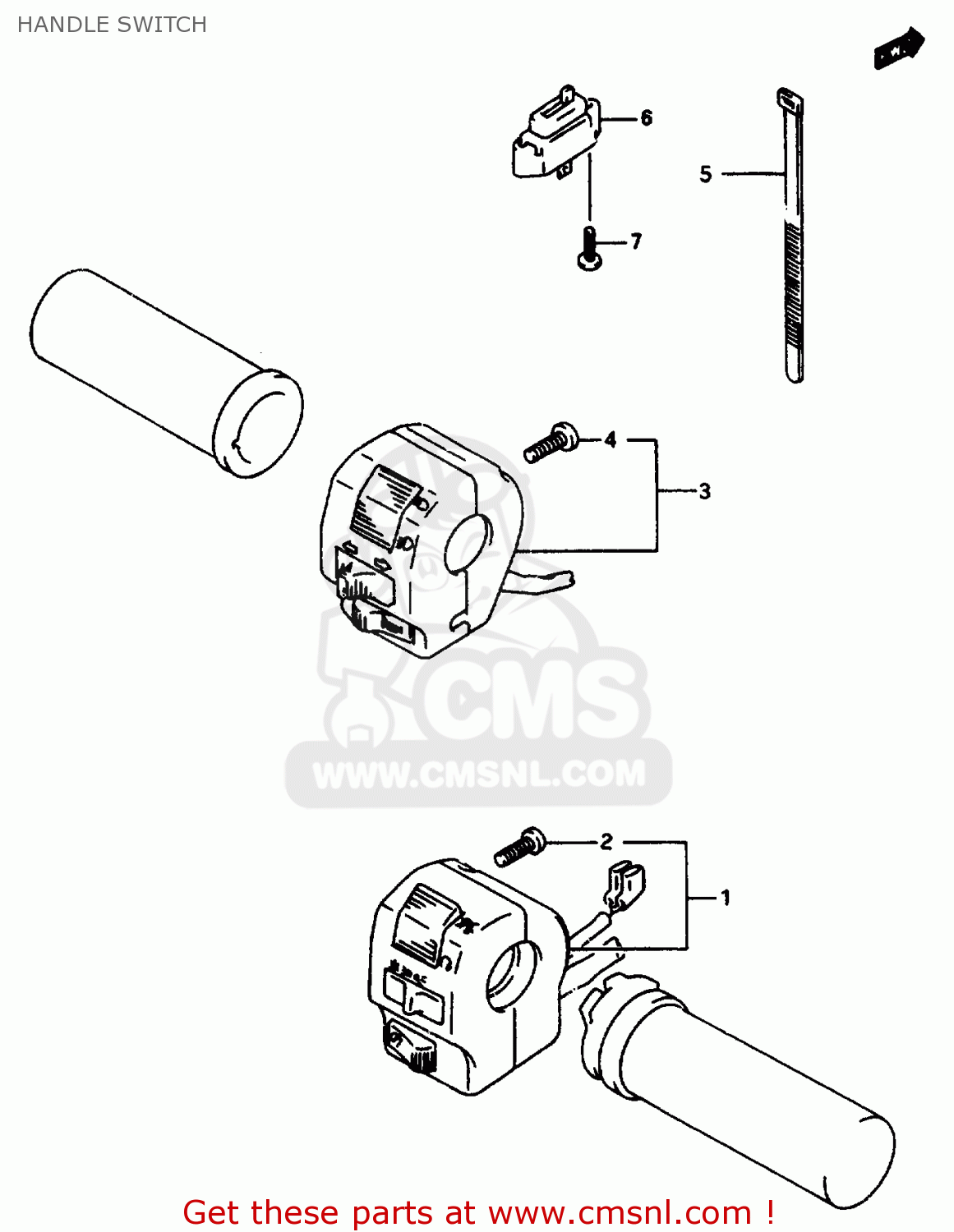

Handle switch diagram VS600GL 1996 (T) (E02 E04 E17 E18)

prices are in EUR

ref

part #

description

quantity

1-1

3720038AA0
ref: 1-1
MODEL S/T

SWITCH ASSY,HANDLE,R

€ 203.00

1-2

3720039AA0
ref: 1-2
MODEL V

SWITCH ASSY,HANDLE,R

€ 203.00

0211205167
ref: 2

SCREW

€ 2.50

3-1

3740038AB0
ref: 3-1
MODEL S/T

SWITCH,HANDLE,

€ 207.00

3-2

3740038AD0
ref: 3-2
MODEL V

SWITCH ASSY,HANDLE,L

€ 212.00

0211205167
ref: 4

SCREW

€ 2.50

0940714401
ref: 5

CLAMP

€ 3.00

3756038A00
ref: 6

SWITCH ASSY,CLUTCH

€ 20.00

0214203127
ref: 7

SCREW

€ 2.00
