HEADLAMP (MODLE T/V)
VS600GL 1996 (T) (E02 E04 E17 E18)

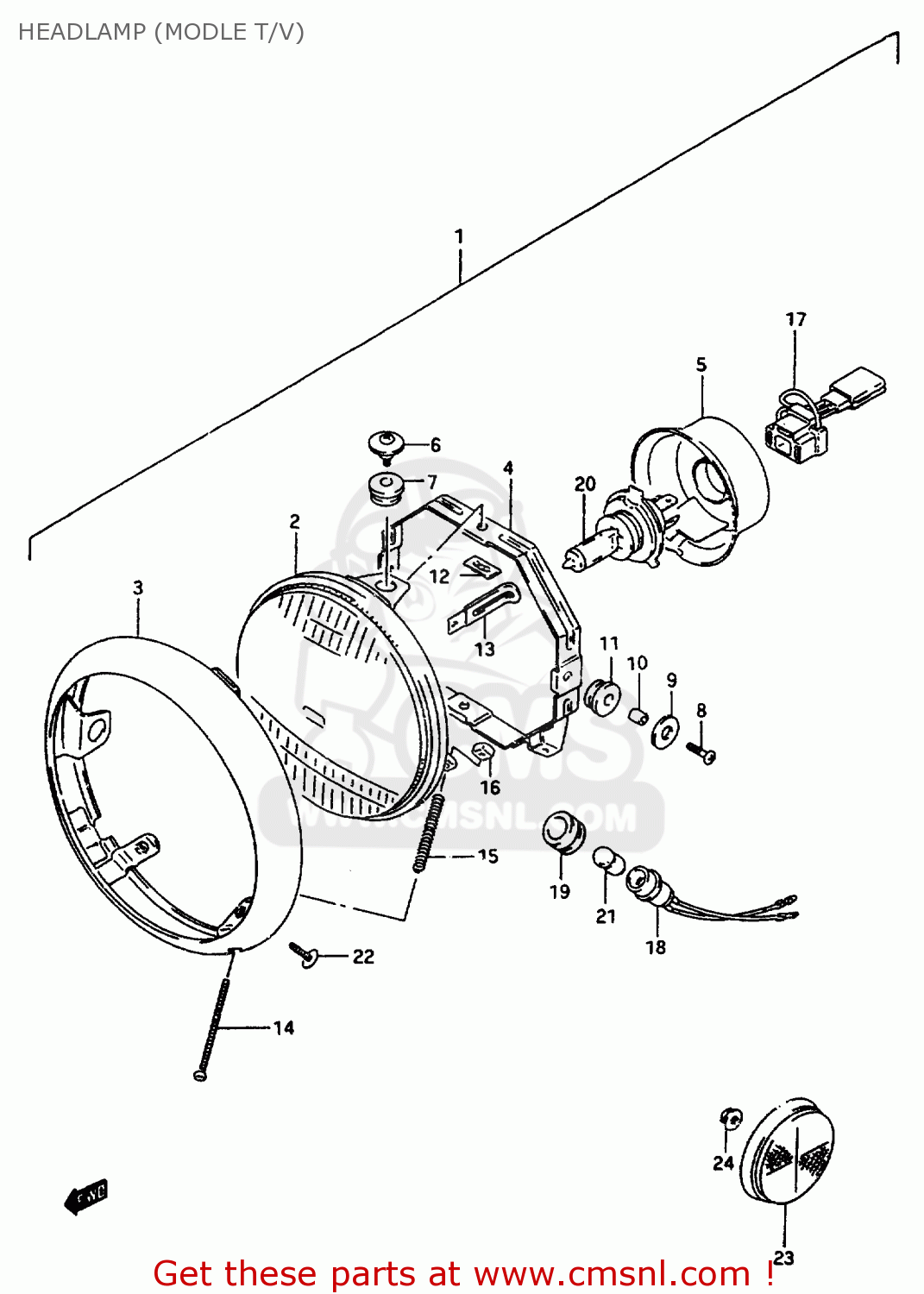

Headlamp (modle t/v) diagram VS600GL 1996 (T) (E02 E04 E17 E18)
HEADLAMP (MODLE T/V) VS600GL 1996 (T) (E02 E04 E17 E18)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510038A00
ref: 1-1
HEADLAMP ASSY
€ 215.50
1-2
3510038A51999
ref: 1-2
E4,E17,E18,E22,E34
HEADLAMP ASSY
€ 216.50
2-1
3512138A00
ref: 2-1
LAMP UNIT
€ 126.50
2-2
3512138A41
ref: 2-2
E4,E17,E18,E22,E34
UNIT
€ 126.50
3
3511138A00
ref: 3
RIM
€ 27.00
4
3513038A00
ref: 4
RING,MOUNTING
€ 15.00
5
3517338A00
ref: 5
COVER,SOCKET
€ 12.50
6
3513638A00
ref: 6
SCREW,MOUNTING
€ 2.50
7
3513945230
ref: 7
CUSHION
€ 1.50
8-1
0912505102
ref: 8-1
FOR 35100-38A00
SCREW(5X14)
€ 2.50
8-2
0211205163
ref: 8-2
FOR 35100-38A51-999
SCREW
€ 2.00
9
0916005003
ref: 9
WASHER (5.5X18X1)
€ 2.00
10
3513345230
ref: 10
SPACER
€ 2.00
11
3513945230
ref: 11
CUSHION
€ 1.50
12
3515548510
ref: 12
NUT
€ 2.00
13
0940406429
ref: 13
CLAMP(L:45)
€ 2.50
14
3515138A00
ref: 14
SCREW,ADJUSTING(4X50)
€ 2.50
15
3515431300
ref: 15
SPRING
€ 2.00
16
3513545600
ref: 16
NUT
€ 3.00
17
3685338A00
ref: 17
SOCKET
€ 10.00
18
3611849320
ref: 18
SOCKET
€ 12.00
19
3611622630
ref: 19
JOINT,RUBBER
€ 5.00
20
0947112060
ref: 20
BULB(12V60/55W,H4)
€ 8.00
21
0947112001
ref: 21
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
22
0214205127
ref: 22
SCREW
€ 1.50
23
3595014A00
ref: 23
E18
REFLECTOR,REFLEX FR
€ 15.00
24
0831000053
ref: 24
E18
NUT
€ 2.50
