VS600GL 1996 (T) (E02 E04 E17 E18)

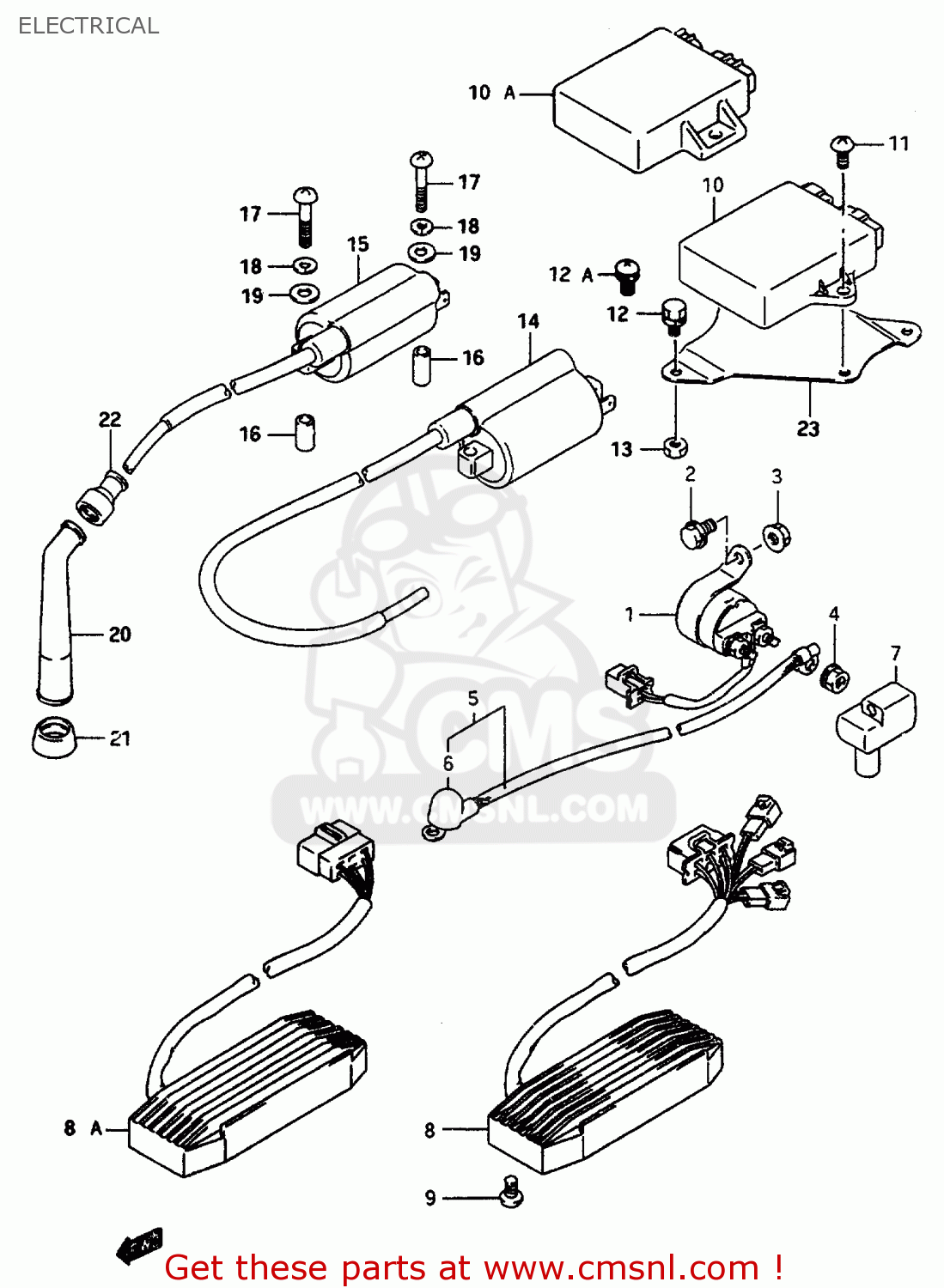

Electrical diagram VS600GL 1996 (T) (E02 E04 E17 E18)
ELECTRICAL VS600GL 1996 (T) (E02 E04 E17 E18)
×
prices are in EUR
ref
part #
description
quantity
1
3180015501
ref: 1
RELAY ASSY,STARTING MOTOR
€ 78.00
2
0155006103
ref: 2
BOLT
€ 2.50
3
0831610063
ref: 3
NUT
€ 2.50
4
0836135068
ref: 4
NUT
€ 2.00
5
3385038A00
ref: 5
WIRE,STARTER MOTOR LEAD
€ 17.50
6
3186148B10
ref: 6
CAP,STARTER MOTOR LEAD
€ 4.50
7
3186138A00
ref: 7
CAP,STARTER RELAY
€ 7.50
8
3280038A00
ref: 8
MODEL S
RECTIFIER ASSY
€ 396.50
8A
3280012E01
ref: 8A
MODEL T/V
RECTIFIER ASSY
€ 368.00
9
0150006103
ref: 9
BOLT
€ 2.00
10
3290038A10
ref: 10
MODEL S
IGNITER UNIT ASSEMBLY
€ 611.00
10A
3290039E60
ref: 10A
MODEL T/V
IGNITOR ASSY
€ 576.00
11
0214206123
ref: 11
SCREW 6X12
€ 2.00
12
0157006123
ref: 12
MODEL S
BOLT
€ 1.50
12A
0211236123
ref: 12A
MODEL T/V
BOLT
€ 2.00
13
0831620063
ref: 13
NUT
€ 2.00
14
3341038A11
ref: 14
REAR
COIL ASSY,IGNITION
€ 136.00
15
3342038A11
ref: 15
FRONT
COIL ASSY,IGNITION
€ 150.00
16
0918006144
ref: 16
SPACER(6.4X10X19)
€ 5.00
17
0912505053
ref: 17
SCREW (5X38)
€ 1.50
18
0832101053
ref: 18
LOCK,WASHER
€ 3.00
19
0832201053
ref: 19
WASHER
€ 2.50
20
3351011410
ref: 20
CAP,SPARK PLUG
€ 24.50
21
3354124510
ref: 21
SEAL,SPARK PLUG CAP
€ 7.00
22
3354238B00
ref: 22
33542-98000
SEAL,HIGH TENSION CORD
€ 4.50
23
3291038A10
ref: 23
PLATE,IGNITOR FITING
€ 7.00
