STEERING STEM (MODEL T/V)

VS600GL 1996 (T) (E02 E04 E17 E18)

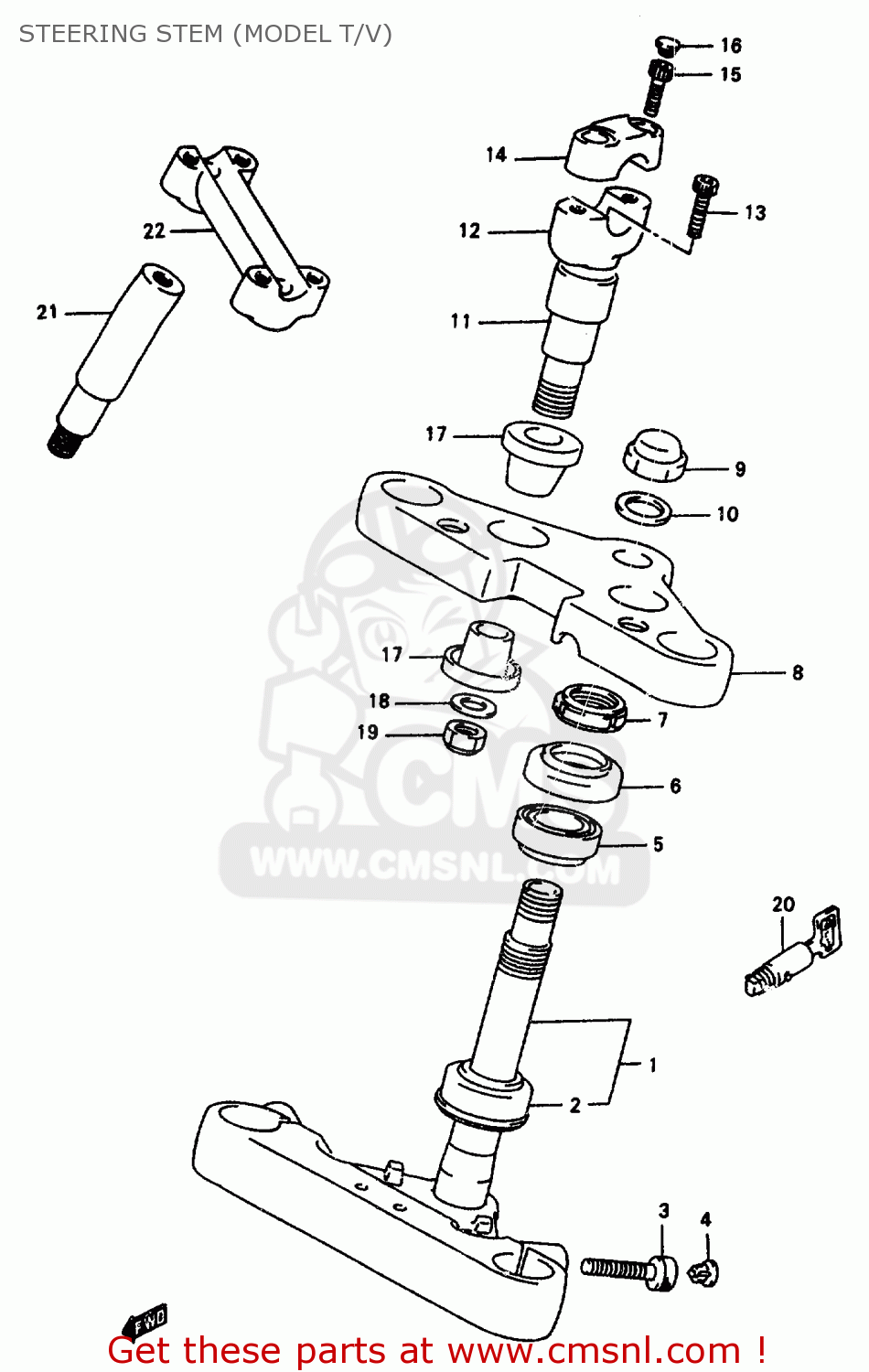

Steering stem (model t/v) diagram VS600GL 1996 (T) (E02 E04 E17 E18)

STEERING STEM (MODEL T/V) VS600GL 1996 (T) (E02 E04 E17 E18)
STEERING STEM (MODEL T/V) VS600GL 1996 (T) (E02 E04 E17 E18)
STEERING STEM (MODEL T/V) VS600GL 1996 (T) (E02 E04 E17 E18)
prices are in EUR
ref
part #
description
quantity
1
5141039A21
ref: 1
STEM,STEERING
5141039A21
€ 594.00
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
0713010307
ref: 3
BOLT
0713010307
€ 4.50
4
0925008014
ref: 4
CAP(OD:12)
0925008014
€ 3.50
5
0926525019
ref: 5
BEARING(25X47X15)
0926525019
€ 48.50
6
5164349002
ref: 6
SEAL,STEERING UPR DUST
5164349002
€ 7.50
7
5163128000
ref: 7
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
8
5131139A00
ref: 8
BRACKET,UPR
5131139A00
€ 446.50
9
5135324B00
ref: 9
NUT,CAP
5135324B00
€ 21.50
10
5135624B01
ref: 10
WASHER(22.5X32X1.6)
5135624B01
€ 3.00
11
5623138A50
ref: 11
STAY,HANDLE
5623138A50
€ 49.50
12
5622138A01
ref: 12
HOLDER,HANDLE LWR
5622138A01
€ 65.00
13
0713010257
ref: 13
BOLT
0713010257
€ 3.00
14
5621138A01
ref: 14
HOLDER,HANDLE UPR
5621138A01
€ 45.00
15
0713008303
ref: 15
BOLT
0713008303
€ 3.00
16
0925006009
ref: 16
CAP(OD:14.5)
0925006009
€ 3.50
17
5624038A42
ref: 17
DAMPER,RUBBER
5624038A42
€ 31.50
18
5135438A40
ref: 18
WASHER
5135438A40
€ 9.00
19
0915910027
ref: 19
NUT
0915910027
€ 3.00
20
5190038810
ref: 20
LOCK SET,STEERING
5190038810
€ 168.50
21
5623139A40
ref: 21
VS600GLFT/GLFV E4,E3
STAY,HANDLE
5623139A40
€ 59.00
22
5622139A40
ref: 22
VSL00GLFT/GLFV E4,E3
HOLDER,HANDLE LWR
5622139A40
€ 226.00
