BATTERY (MODEL G ~F.NO.111193)

VS700GLF INTRUDER 1986 (G) USA (E03)

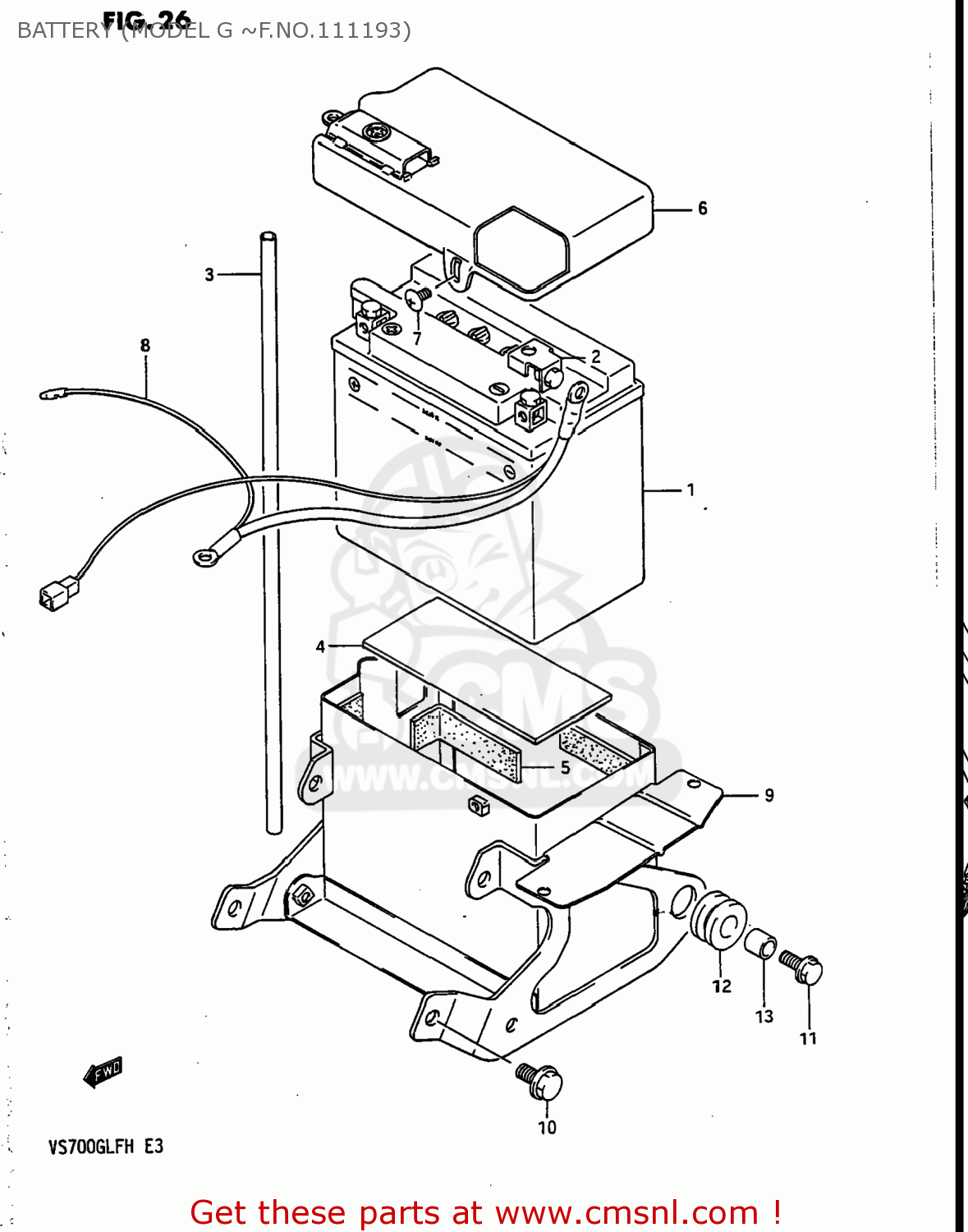

Battery (model g ~f.no.111193) diagram VS700GLF INTRUDER 1986 (G) USA (E03)

BATTERY (MODEL G ~F.NO.111193) VS700GLF INTRUDER 1986 (G) USA (E03)

BATTERY (MODEL G ~F.NO.111193) VS700GLF INTRUDER 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361038A30
ref: 1
33610-38A01

BATTERY ASSEMBLY

€ 119.50

2

3362138A00
ref: 2

TERMINAL,BATTERY

€ 4.00

3

3368017300
ref: 3
33680-16A10

HOSE,BATTERY EXHAUST

€ 4.50

4

3365137000
ref: 4

PROTECTOR(170X95X3.0)

€ 5.00

5

3365238A10
ref: 5
33652-07D00

PROTECTOR(20X90)X2

€ 4.50

6

3365838A01
ref: 6
33658-38A30

COVER,BATTERY,UPPER

€ 8.00

7

0214205085
ref: 7
02142-0508A

SCREW

€ 2.00

8

3386038A00
ref: 8

WIRE,BATTERY MINUS LEAD

€ 17.50

9

4154038A00
ref: 9
41540-38A12

HOLDER,BATTERY

€ 103.50

10

0151708165
ref: 10
01550-0816A

BOLT, LOWER

€ 3.00

11

0151706164
ref: 11
01550-0616A

BOLT

€ 2.50

12

0932012031
ref: 12

CUSHION

€ 3.00

13

0918008001
ref: 13
09180-08189

SPACER (8.8X12X11)

€ 2.00

13

0918008001
ref: 13
09180-08189

SPACER (8.8X12X11)

€ 2.00

13

0918008001
ref: 13
09180-08189

SPACER (8.8X12X11)

€ 2.00
