VS700GLF INTRUDER 1986 (G) USA (E03)

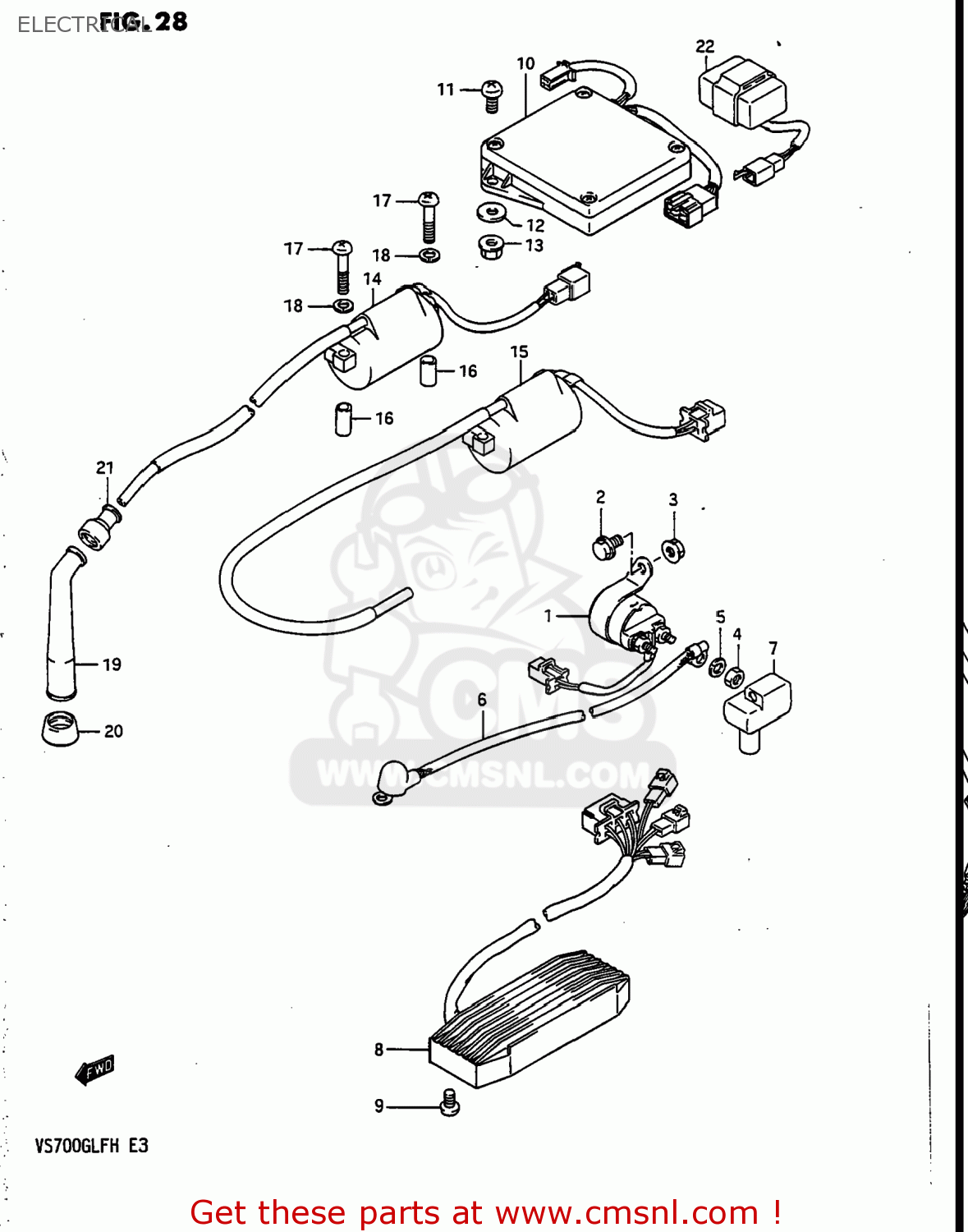

Electrical diagram VS700GLF INTRUDER 1986 (G) USA (E03)
ELECTRICAL VS700GLF INTRUDER 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180015500
ref: 1
31800-15501
RELAY ASSEMBLY,STARTING MOTOR
€ 78.00
2
0151706106
ref: 2
01550-0610A
BOLT
€ 2.50
3
0831616066
ref: 3
08316-1006B
NUT
€ 2.50
4
0831011066
ref: 4
08310-0006A
NUT
€ 2.00
5
0832121066
ref: 5
08321-0106A
WASHER,LOCK
€ 2.00
6
3385038A00
ref: 6
WIRE,STARTER MOTOR LEAD
€ 17.50
7
3186138A00
ref: 7
CAP,STARTER RELAY
€ 7.50
8
3280038A00
ref: 8
RECTIFIER ASSY
€ 396.50
9
0110706104
ref: 9
01500-0610B
BOLT
€ 2.00
10
3290038A00
ref: 10
IGNITOR UNIT
€ 781.50
11
0211206166
ref: 11
02112-0616A
SCREW
€ 2.00
12
0916106016
ref: 12
WASHER(6.5X20X2)
€ 2.50
13
0831616066
ref: 13
08316-1006B
NUT
€ 2.50
14
3341038A00
ref: 14
33410-38A02
COIL ASSEMBLY,IGNITION
€ 132.00
15
3342038A00
ref: 15
33420-38A02
COIL ASSEMBLY,IGNITION
€ 168.50
16
0918006144
ref: 16
SPACER(6.4X10X19)
€ 5.00
17
0912505053
ref: 17
SCREW (5X38)
€ 1.50
18
0832121056
ref: 18
08321-0105A
LOCK WASHER
€ 3.00
19
3351011410
ref: 19
CAP,SPARK PLUG
€ 24.50
20
3354124510
ref: 20
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
21
3354298000
ref: 21
33542-38B00
SEAL,SPARK PLU
€ 4.50
22
3395038A00
ref: 22
RELAY ASSY,FUEL CUT
€ 93.50
