SECONDARY DRIVE GEAR (MODEL H)

VS700GLF INTRUDER 1986 (G) USA (E03)

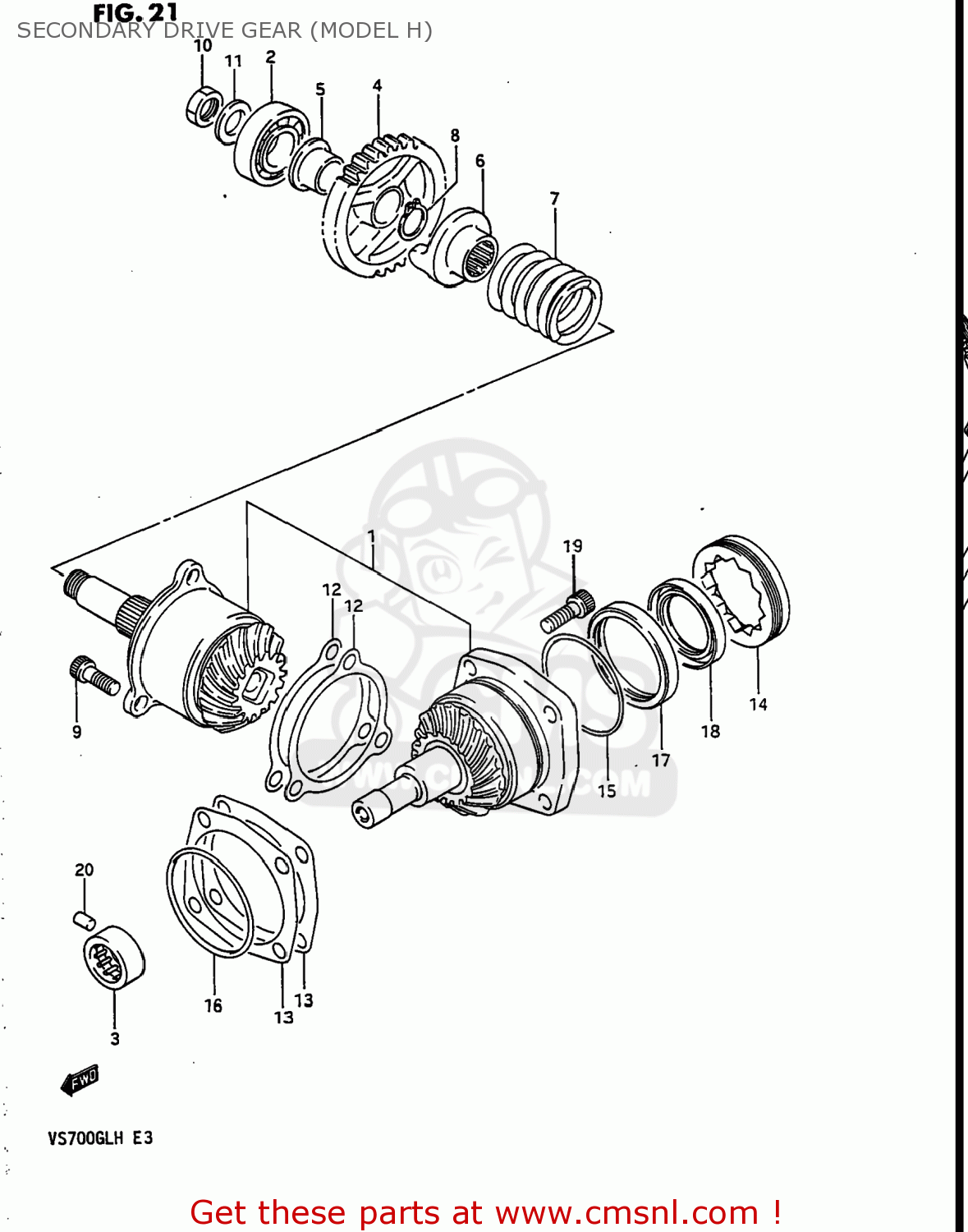

Secondary drive gear (model h) diagram VS700GLF INTRUDER 1986 (G) USA (E03)

SECONDARY DRIVE GEAR (MODEL H) VS700GLF INTRUDER 1986 (G) USA (E03)

SECONDARY DRIVE GEAR (MODEL H) VS700GLF INTRUDER 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2490038821
ref: 1
24900-38822

GEAR & HOUSING SET,SECONDARY

€ 1,238.50

2

0926220073
ref: 2

BEARING(20X52X15)

€ 19.00

3

0926320038
ref: 3

BEARING(20X34X16)

€ 30.50

4

2463138A00
ref: 4

GEAR,REDUCTION DRIVEN(NT:30)

€ 95.50

5

2463238A00
ref: 5

BUSH,REDUCTION DRIVEN GEAR

€ 13.00

6

2492238A00
ref: 6

DOG,OUTPUT CAM

€ 42.00

7

0944044002
ref: 7

SPRING

€ 15.50

8

0833131218
ref: 8
08331-3121A

CIRCLIP,21MM

€ 2.00

9

0711008256
ref: 9
07130-0825B

BOLT

€ 3.50

10

0914016014
ref: 10
09140-16005

NUT

€ 4.50

11

0916016029
ref: 11

WASHER(16X29X4)

€ 6.00

12-1

2493538A01030
ref: 12-1

SHIM,SECONDARY DRIVE

€ 4.00

12-2

2493538A01035
ref: 12-2

SHIM,SECONDARY DRIVE

€ 4.00

12-3

2493538A01040
ref: 12-3

SHIM,SECONDARY DRIVE

€ 4.00

12-4

2493538A01050
ref: 12-4

SHIM,SECONDARY DRIVE

€ 4.00

12-5

2493538A01060
ref: 12-5

SHIM,SECONDARY DRIVE GEAR

€ 4.00

13-1

2494505A000A0
ref: 13-1

SHIM,SECONDARY DRIVEN HOUSING

€ 4.00

13-2

2494505A000B0
ref: 13-2

SHIM,SECONDARY DRIVEN HOUSING

€ 4.00

13-3

2494505A000C0
ref: 13-3

SHIM,SECONDARY DRIVEN HOUSING

€ 4.00

13-4

2494505A000D0
ref: 13-4

SHIM,SECONDARY DRIVEN HOUSING

€ 4.00

13-5

2494505A000E0
ref: 13-5

SHIM,SECONDARY DRIVEN HOUSING

€ 4.00

14

2494238A50
ref: 14

STOPPER,SEC DRIVEN BEARING

€ 34.50

15

0928060003
ref: 15

O RING(D:1.2,ID:59.6)

€ 2.00

16

0928067004
ref: 16

O RING(D:2.1,ID:66.2)

€ 2.50

17

2494338A50
ref: 17

HOUSING,OIL SEAL

€ 54.50

18

0928338016
ref: 18

SEAL,OIL(38X54X8.5)

€ 12.00

19

0711008256
ref: 19
07130-0825B

BOLT

€ 3.50

20

0422107129
ref: 20

PIN

€ 1.50
