MAGNETO
VS700GLF INTRUDER 1986 (G) USA (E03)

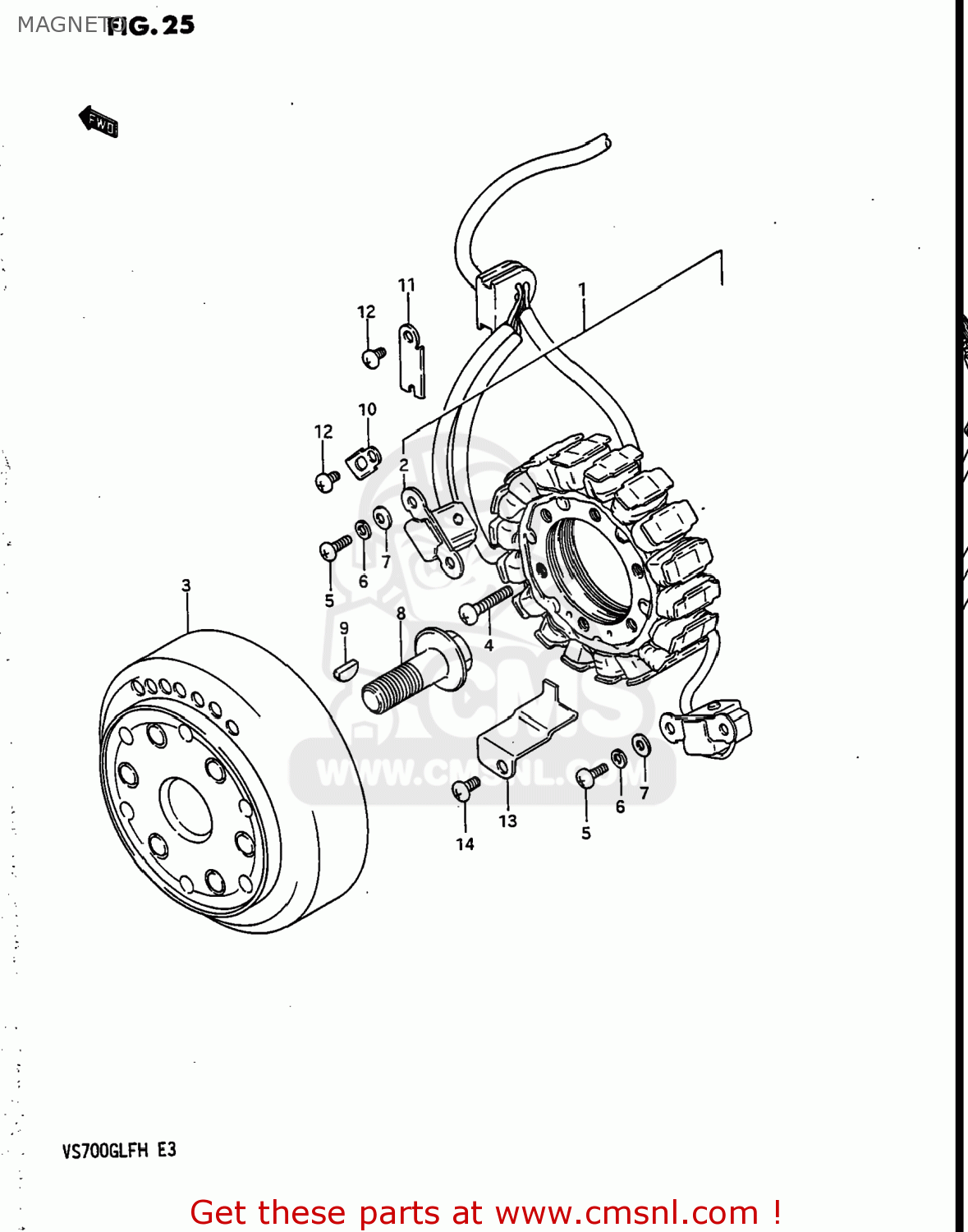

Magneto diagram VS700GLF INTRUDER 1986 (G) USA (E03)
MAGNETO VS700GLF INTRUDER 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210138A00
ref: 1
STATOR ASSEMBLY
€ 341.50
2
3216038A00
ref: 2
COIL ASSEMBLY,PICK-UP
€ 120.50
3
3210238A00
ref: 3
ROTOR
€ 346.00
4
0211206308
ref: 4
02112-06307
SCREW 6X30
€ 2.50
5
0211205128
ref: 5
02112-05127
SCREW
€ 2.50
6
0832221057
ref: 6
08322-01057
WASHER
€ 2.50
7
0832121057
ref: 7
08321-0105A
LOCK WASHER
€ 2.00
8
0910314001
ref: 8
BOLT(14X43)
€ 7.00
9
0834131049
ref: 9
09420-04008
KEY 4MM
€ 3.50
10
3149745000
ref: 10
CLAMP,GENERATOR LEAD WIRE
€ 1.50
11
3237138A10
ref: 11
CLAMP NO.1,MAGNETO READ WIRE
€ 1.50
12
0211205088
ref: 12
02112-05087
SCREW
€ 2.00
13
3237138A20
ref: 13
32371-45C00
CLAMP,MAGNETO LEAD WIRE
€ 3.00
14
0211206108
ref: 14
02112-06107
SCREW
€ 1.50
