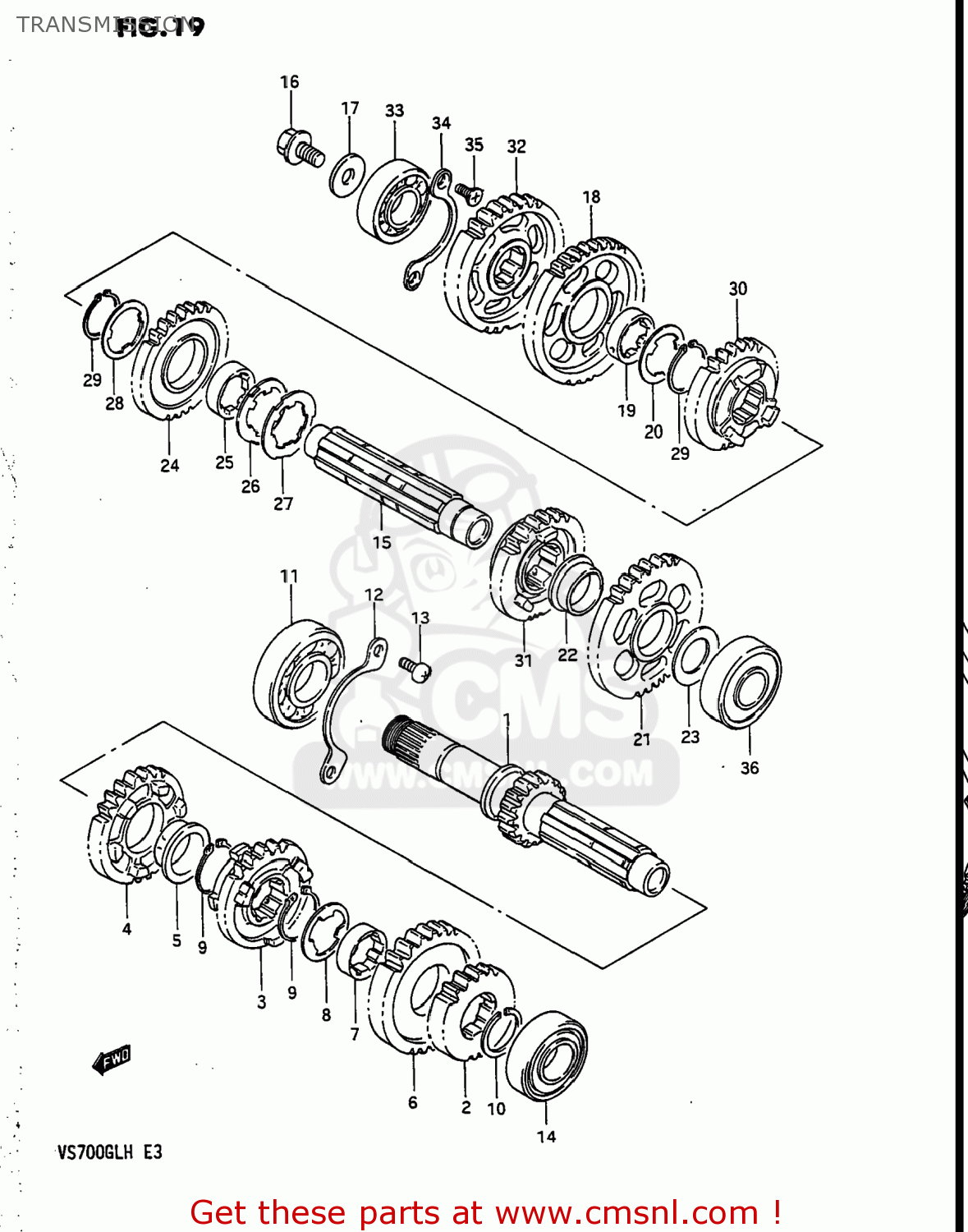

TRANSMISSION

ref

part #

description

quantity

1

2410038812
ref: 1
24100-38813

COUNTER SHAFT

€ 120.00

2

2422138A01
ref: 2

GEAR,2ND DRIVE(NT:19)

€ 91.50

3

2423138A01
ref: 3
24231-45C00

GEAR,THIRD DRIVE

€ 97.00

4

2424138A00
ref: 4

GEAR,4TH DRIVE(NT:25)

€ 101.00

5

0930125001
ref: 5
24322-19F00

BUSHING

€ 12.50

6

2425138A00
ref: 6
24251-38A01

GEAR,FIFTH DRIVE (NT:27)

€ 93.50

7

2425238A00
ref: 7
24252-38A10

BUSHING

€ 10.50

8

0916725016
ref: 8

WASHER,LOCK

€ 3.00

9

0938025003
ref: 9

RING,SNAP

€ 3.00

10

0938025010
ref: 10

CIRCLIP

€ 3.00

11

0926225080
ref: 11

BEARING(25X62X17)

€ 21.50

12

2474138A00
ref: 12

RETAINER,CNTR SHAFT BEARING

€ 4.00

13

0211206126
ref: 13
02112-0612A

SCREW

€ 1.50

14

0926220081
ref: 14
09262-20139

BEARING 20X47X14

€ 27.50

15

2413138A02
ref: 15
24131-38A03

SHAFT,DRIVE

€ 106.50

16

2413538A02
ref: 16

NOZZLE,DRIVE SHAFT

€ 5.00

17

0821110305
ref: 17

WASHER

€ 3.00

18

2431138A01
ref: 18

GEAR,FIRST DRIVEN (NT:32)

€ 97.50

19

2433207A00
ref: 19

BUSH

€ 9.50

20

0916728001
ref: 20

WASHER,LOCK

€ 3.00

21

2432138A00
ref: 21

GEAR,2ND DRIVEN(NT:31)

€ 86.00

22

0930122002
ref: 22

BUSH

€ 7.50

23

0821120341
ref: 23

WASHER

€ 2.00

24-1

2433138A01
ref: 24-1
24331-38A02

GEAR,THIRD DRIVEN

€ 86.00

24-2

2433138A02
ref: 24-2

GEAR,3RD DRIVEN(NT:27)

€ 86.00

25

2433207A00
ref: 25

BUSH

€ 9.50

26

0916928001
ref: 26

WASHER

€ 3.00

27

0916728002
ref: 27

WASHER,LOCK

€ 3.00

28

0916728001
ref: 28

WASHER,LOCK

€ 3.00

29

0833111289
ref: 29
08331-3128A

CIRCLIP

€ 2.50

30

2434138A01
ref: 30
24341-45C00

GEAR,FOURTH DRIVEN

€ 106.50

31

2435138A01
ref: 31
24351-38A03

GEAR,FIFTH DRIVEN

€ 80.50

32

2462138A00
ref: 32

GEAR,REDUCTION DRIVE(NT:30)

€ 83.50

33

0926220073
ref: 33

BEARING(20X52X15)

€ 19.00

34

2475138A00
ref: 34

RETAINER,DRIVE SHAFT BEARING

€ 4.00

35

0212206128
ref: 35
02122-06127

SCREW

€ 3.00

36

0926220080
ref: 36

BEARING(20X52X15)

€ 21.50

all assemblies
