FRONT WHEEL (VS700GLFH/GLPH)

VS700GLF INTRUDER 1986 (G) USA (E03)

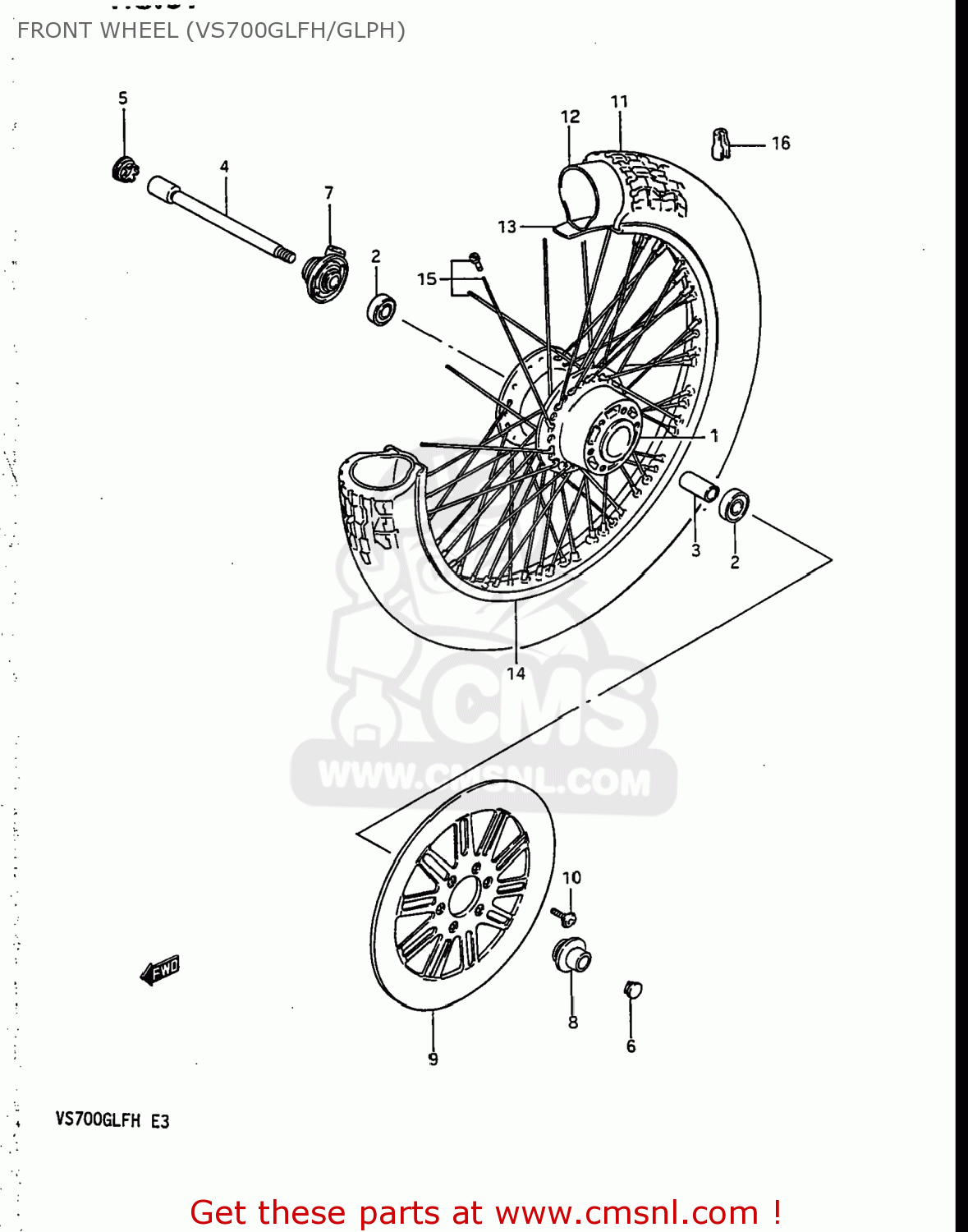

Front wheel (vs700glfh/glph) diagram VS700GLF INTRUDER 1986 (G) USA (E03)

FRONT WHEEL (VS700GLFH/GLPH) VS700GLF INTRUDER 1986 (G) USA (E03)

FRONT WHEEL (VS700GLFH/GLPH) VS700GLF INTRUDER 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5411038B00
ref: 1

HUB ASSY,FR

€ 323.50

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015004
ref: 3

SPACER(15.3X21.7X65)

€ 9.00

4

5471138A10
ref: 4

AXLE,FRONT

€ 37.50

5

5479238B00
ref: 5

CAP,FR AXLE

€ 97.00

6

5479138B00
ref: 6
54791-38B01

CAP,FRONT AXLE

€ 4.50

7

5460049260
ref: 7

BOX ASSY,SPEEDOMETER GEAR

€ 219.00

8

5475038A20
ref: 8

SPACER COMP,FRONT AXLE

€ 12.50

9

5921138B00
ref: 9

DISC,FR BRAKE

€ 232.50

10

0910608049
ref: 10

BOLT(8X25.5)

€ 4.00

11

5510038A40
ref: 11

TIRE,FRONT

€ 0.00

12

5520015030
ref: 12
65200-01B30

TUBE,INNER

€ 41.00

13

5526115010
ref: 13

PROTECTOR,WHL INR TUBE

€ 2.50

14

5531138A00
ref: 14
55311-38E10

RIM,FRONT WHEEL (MT2.15)

€ 369.00

15

5532038B00
ref: 15

SPOKE SET,FR WHEEL

€ 176.50

16-1

5541238A00
ref: 16-1
55412-41F00

BALANCER,WHEEL

€ 6.50

16-2

5541338A00
ref: 16-2
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

16-2

5541338A00
ref: 16-2
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

16-2

5541338A00
ref: 16-2
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00
