CLUTCH MASTER CYLINDER (VS700GLPG/GLEPG/GLPH/GLEPH)

VS700GLF INTRUDER 1986 (G) USA (E03)

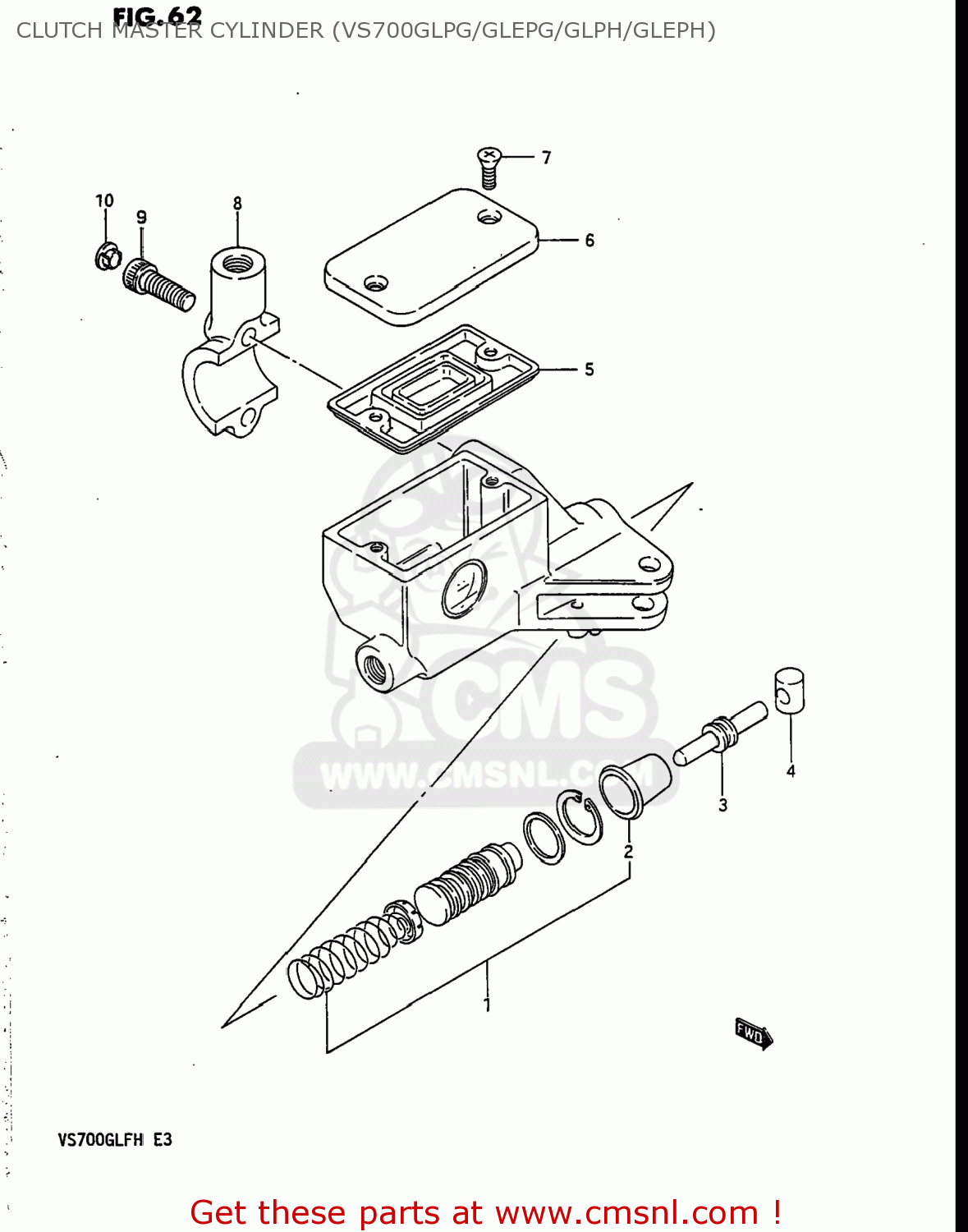

Clutch master cylinder (vs700glpg/glepg/glph/gleph) diagram VS700GLF INTRUDER 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

5980038A51
ref:
59800-38B30

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 428.00

5980008810
ref: 1

PISTON & CUP SET

€ 36.50

5966644300
ref: 2

BOOT

€ 6.00

5987138A00
ref: 3

PUSH ROD

€ 6.50

5989208A00
ref: 4

BUSH

€ 5.50

5966749460
ref: 5

5966749460

5966938A30
ref: 6

CAP

€ 45.50

5969138A00
ref: 7
02122-04127

SCREW,RESERVOIR CAP

€ 2.00

5967138A00
ref: 8

HOLDER

€ 37.50

0711006208
ref: 9
07130-06207

BOLT ,6X20

€ 3.50

0925005008
ref: 10

CAP(OD:10)

€ 5.00
