FRONT FORK (MODEL H)

VS700GLF INTRUDER 1986 (G) USA (E03)

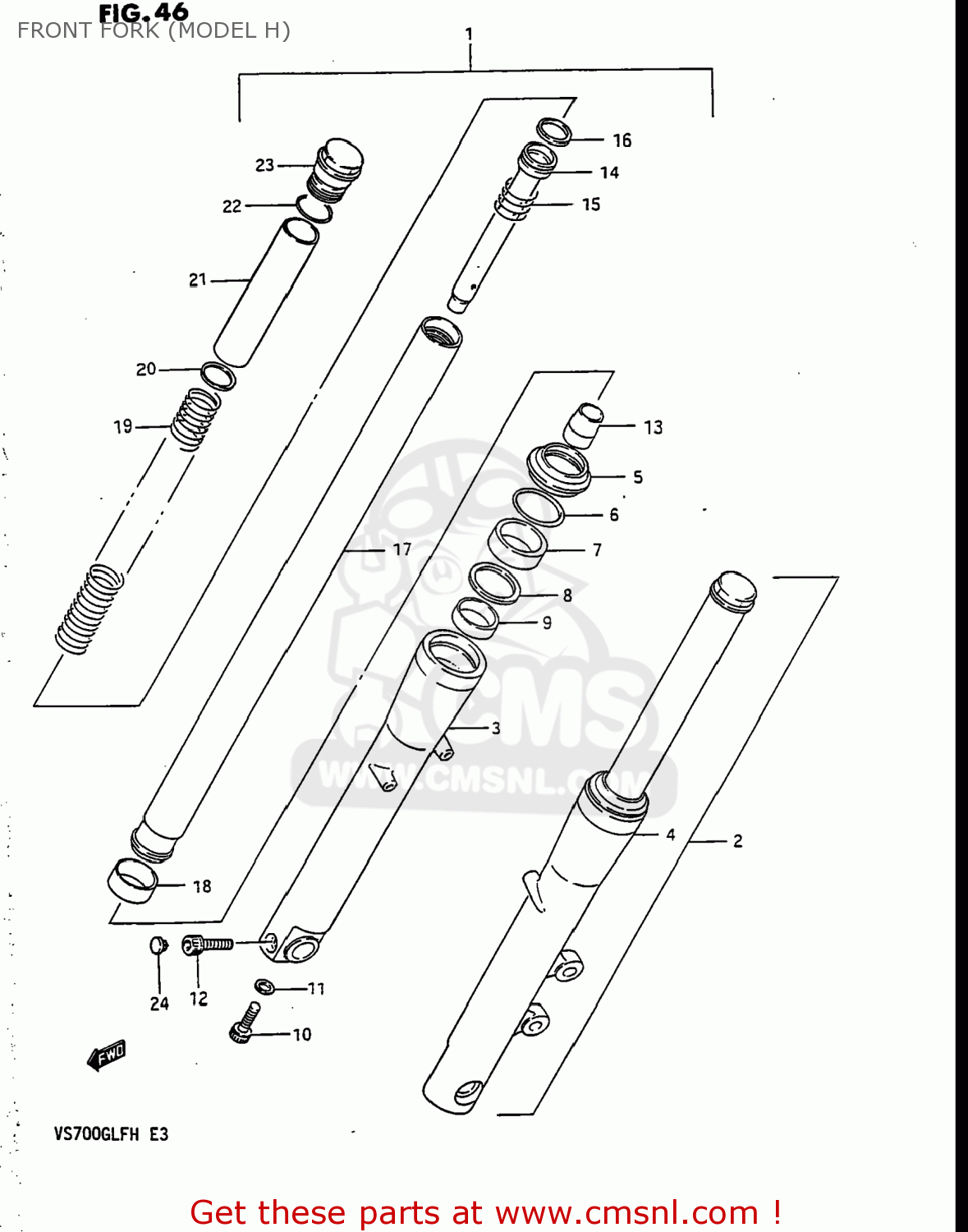

Front fork (model h) diagram VS700GLF INTRUDER 1986 (G) USA (E03)

FRONT FORK (MODEL H) VS700GLF INTRUDER 1986 (G) USA (E03)

FRONT FORK (MODEL H) VS700GLF INTRUDER 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5110338A40
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 1,167.50

2

5110438A40
ref: 2

DAMPER ASSEMBLY,LEFT

€ 640.00

3

5113138A40
ref: 3

TUBE,OUTER,RIGHT

€ 265.50

4

5114138A40
ref: 4

TUBE,OUTER,LEFT

€ 300.50

5

5157143530
ref: 5
51173-25D00

SEAL,DUST

€ 15.00

6

5155634210
ref: 6
51556-34320

RING, STOPPER

€ 7.00

7

5115309310
ref: 7
51153-03B30

OIL SEAL,FRONT FORK

€ 15.00

8

5116838A00
ref: 8

SPACER,SEAL

€ 5.50

9

5115231300
ref: 9

BUSHING,GUIDE

€ 22.50

10

5114748130
ref: 10

BOLT(8X27)

€ 3.50

11

5114836011
ref: 11

GASKET (NAS)

€ 4.00

12

0711008358
ref: 12
07130-08357

BOLT, FRONT RH

€ 4.50

13

5119543530
ref: 13

PIECE,OIL LOCK

€ 12.50

14

5114638A00
ref: 14

CYLINDER

€ 39.00

15

5117738A00
ref: 15

SPRING,REBOUND

€ 5.00

16

5119638A00
ref: 16

RING,PISTON

€ 6.00

17

5111038A00
ref: 17

TUBE,INNER

€ 304.50

18

5112138A00
ref: 18

PISTON

€ 20.00

19

5117138A40
ref: 19

SPRING,FRONT FORK

€ 0.00

20

5117234A00
ref: 20
51172-34370

SEAT,FRONT FORK SPRING

€ 3.50

21

5117638A40
ref: 21

SPACER,FRONT FORK SPRING

€ 0.00

22

5111745200
ref: 22

O RING

€ 5.50

23

5135138A02
ref: 23

BOLT,FR FORK

€ 47.50

24

0925006009
ref: 24

CAP(OD:14.5)

€ 3.50
