FRONT WHEEL (VS700GLFG/GLPG)

VS700GLF INTRUDER 1986 (G) USA (E03)

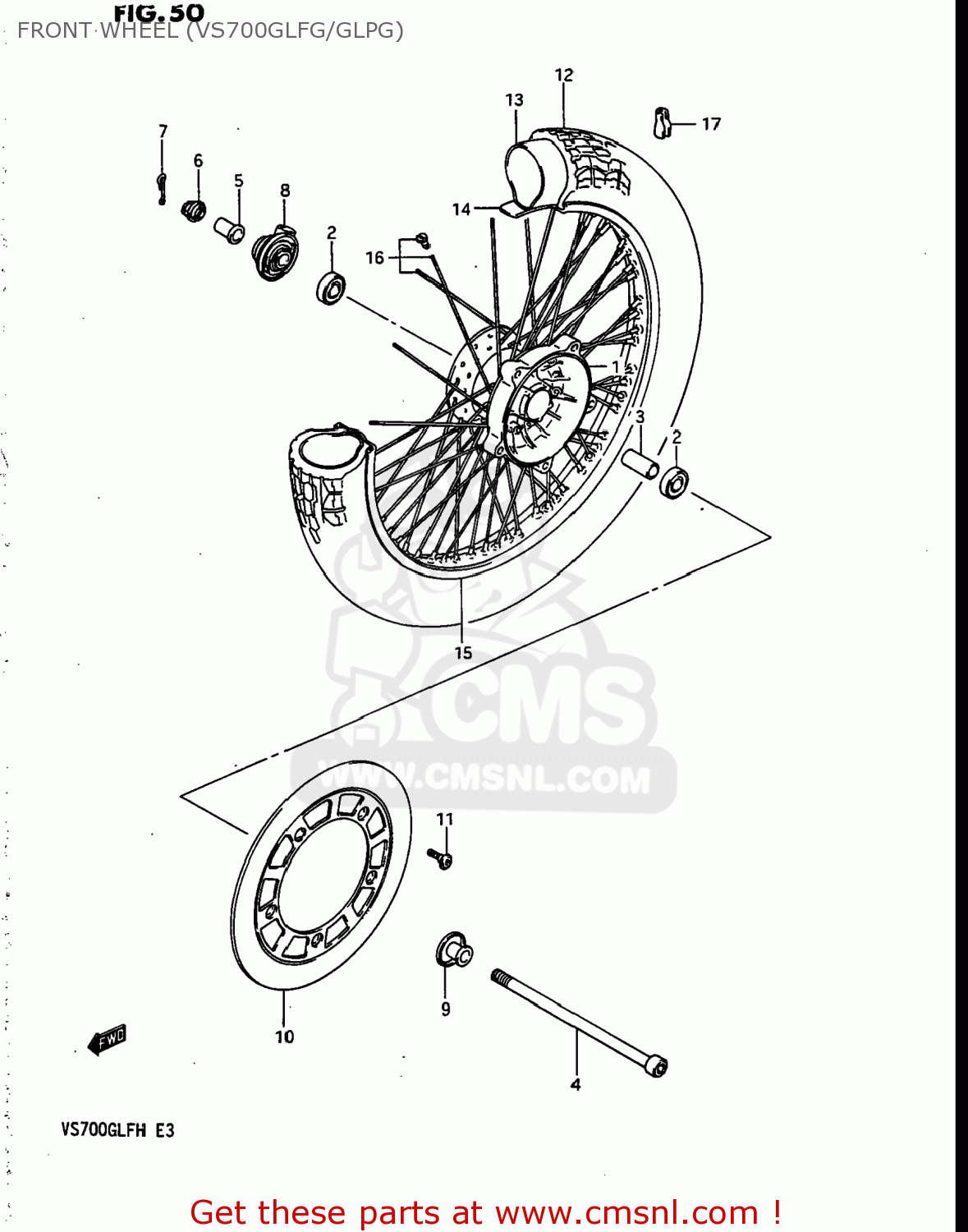

Front wheel (vs700glfg/glpg) diagram VS700GLF INTRUDER 1986 (G) USA (E03)

FRONT WHEEL (VS700GLFG/GLPG) VS700GLF INTRUDER 1986 (G) USA (E03)

FRONT WHEEL (VS700GLFG/GLPG) VS700GLF INTRUDER 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5411038A00
ref: 1

HUB ASSEMBLY,FRONT

€ 237.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015004
ref: 3

SPACER(15.3X21.7X65)

€ 9.00

4

5471138A01
ref: 4

AXLE,FRONT

€ 58.00

5

5474138A00
ref: 5

SPACER,FRONT AXLE,RIGHT

€ 10.50

6

0915912021
ref: 6

NUT

€ 5.50

7

5479138A00
ref: 7

PIN,FRONT AXLE

€ 2.50

8

5460049260
ref: 8

BOX ASSY,SPEEDOMETER GEAR

€ 219.00

9

5475038A00
ref: 9
54750-38A30

SPACER,FRONT AXLE,LEFT

€ 17.50

10

5921138A00
ref: 10

DISC,FR BRAKE

€ 469.50

11

0910608049
ref: 11

BOLT(8X25.5)

€ 4.00

12

5510038A00
ref: 12

TIRE,FRONT

€ 0.00

13

5520015030
ref: 13
65200-01B30

TUBE,INNER

€ 41.00

14

5526115010
ref: 14

PROTECTOR,WHL INR TUBE

€ 2.50

15

5531138A00
ref: 15
55311-38E10

RIM,FRONT WHEEL (MT2.15)

€ 369.00

16

5532038A00
ref: 16
55320-38A01

SPOKE SET,FRONT

€ 141.50

17-1

5541238A00
ref: 17-1
55412-41F00

BALANCER,WHEEL

€ 6.50

17-2

5541338A00
ref: 17-2
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

17-2

5541338A00
ref: 17-2
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

17-2

5541338A00
ref: 17-2
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

17-2

5541338A00
ref: 17-2
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00
