AIR CLEANER (FRONT)(MODEL S/T/V)

VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

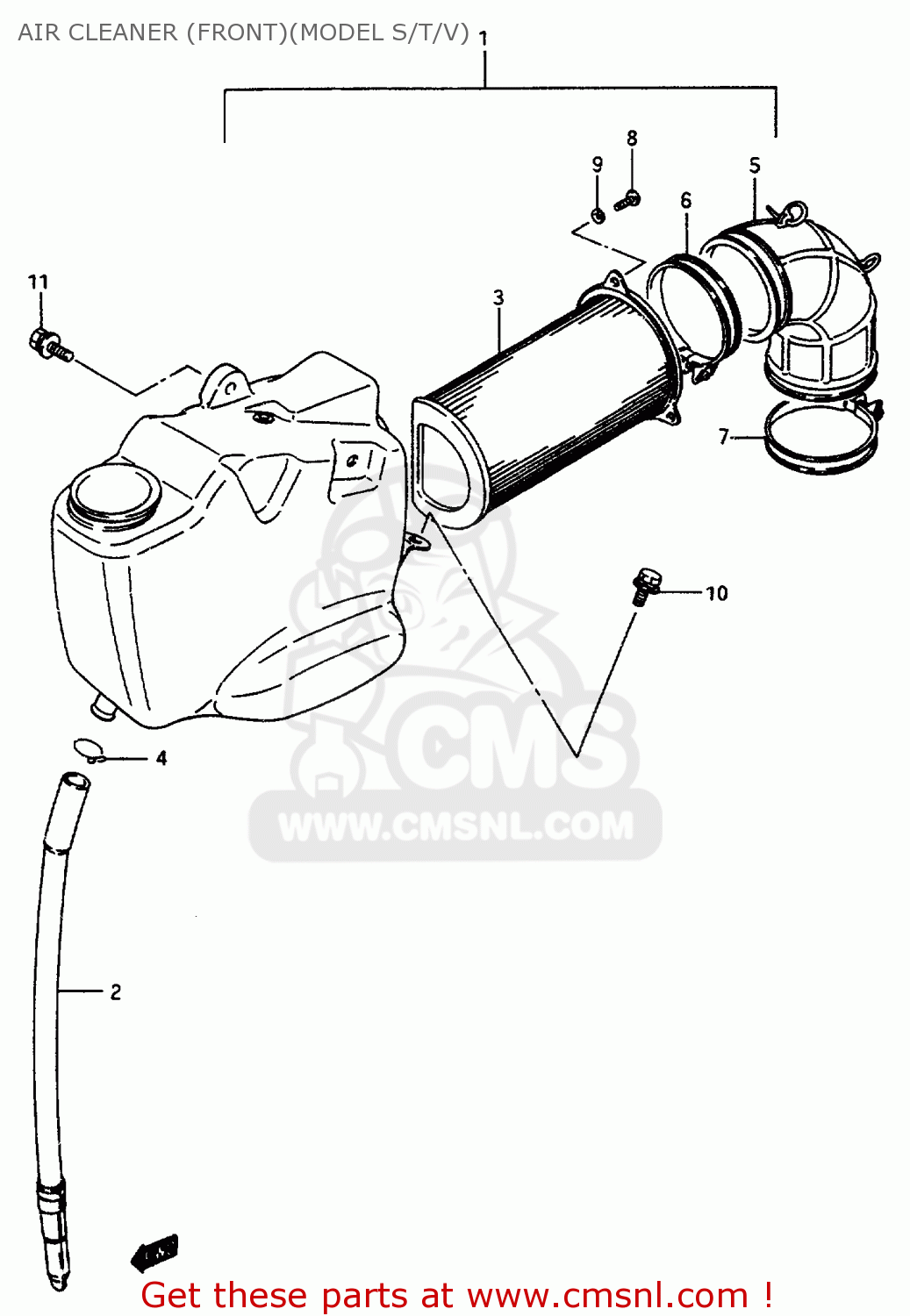

Air cleaner (front)(model s/t/v) diagram VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

AIR CLEANER (FRONT)(MODEL S/T/V) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

AIR CLEANER (FRONT)(MODEL S/T/V) VS800GL 1993 (P) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1

1370038A11
ref: 1

CLEANER ASSY,AIR FR

€ 150.50

2

1387011458
ref: 2

TUBE,DRAIN

€ 13.50

3

1378038A01
ref: 3

FILTER ASSY

€ 25.00

4

0940113409
ref: 4

CLIP

€ 2.50

5

1388138A00
ref: 5

TUBE,AIR CLEANER OUTLET

€ 28.00

6

0940256208
ref: 6

CLAMP

€ 3.50

7

0940258208
ref: 7

CLAMP

€ 5.50

8

0211204083
ref: 8

SCREW

€ 2.00

9

0832101043
ref: 9

WASHER,LOCK

€ 2.00

10

0158006163
ref: 10

BOLT

€ 2.50

11

0158006203
ref: 11

BOLT, REAR

€ 2.50

10-2

0158006163
ref: 10-2
MODEL R

BOLT

€ 2.50

11

0150006207
ref: 11

BOLT

€ 2.00

12

0832101067
ref: 12

WASHER,LOCK

€ 2.50

13

0832201067
ref: 13

WASHER

€ 2.00
